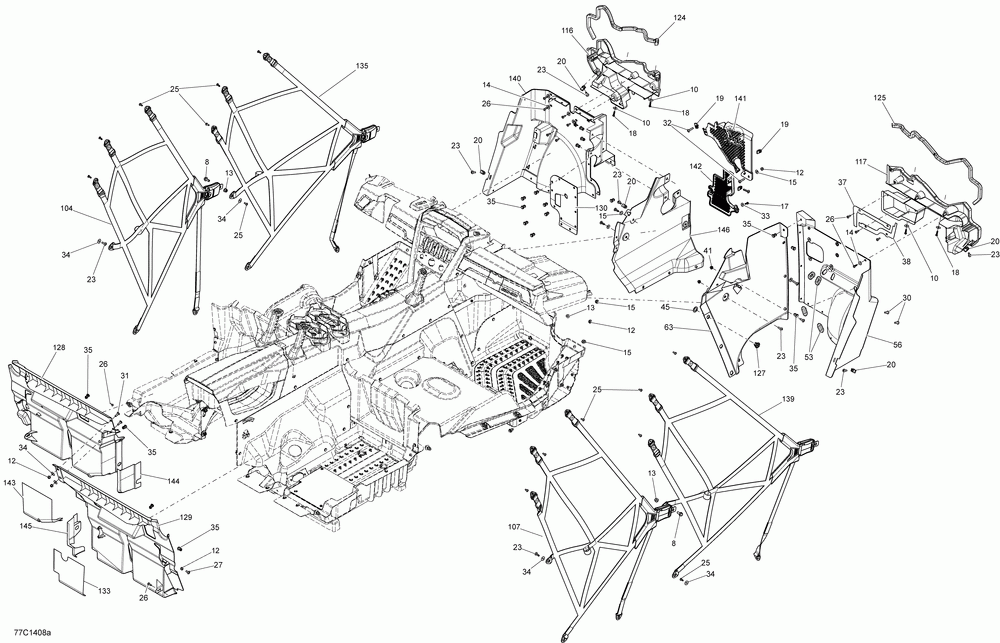

09- cab interior front and rear

Cam-am Maverick MAX 1000, STD, XRS, XRS-DPS
Cam-am
#oem кодцена
8
207682044
Screw-hex.flange Din.6921 (10.000 Per Pack)
10
224060201
Flat Washer (10.000 Per Pack)
12
233261494
Гайка Din.6926 (отпускается по 10 шт)
13
233281414
Гайка Din.6926 (отпускается по 10 шт)
14
234062410
Washer-flat Din.9021b (10.000 Per Pack)
15
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
17
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
18
241152060
Hex.washer Head Pt.screw K50 X 20 (5.000 Per Pack)
19
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
20
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
23
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
25
250000145
Torx-truss M/s Gm6047m (10.000 Per Pack)
26
250000146
Torx-screw Truss Head Pt.k50x16 (5.000 Per Pack)
27
241152060
Hex.washer Head Pt.screw K50 X 20 (5.000 Per Pack)
30
250000335
Screw-socket Truss Hd. M6x20
31
250000350
Torx-truss M/s Stlss Nylon Patch (5.000 Per Pack)
32
250000398
Torx-truss M/s Stlss Nylon Patch (4.000 Per Pack)
33
250200025
Rondelle M5 *washer M5 (10.000 Per Pack)
34
250200040
Rondelle Plate *flat Washer (3.000 Per Pack)
35
293150089
Plastique Rivet Tuflok (25.000 Per Pack)
37
293250252
Joint Sup. *upper Seal
38
293250253
Joint Inf. *bottom Seal
41
293450274
Вставка
45
503189273
Шайба (отпускается по 25 шт)
53
705003668
Rondelle Oblong*oblong Grommet
56
707900004
Plancher *floor
63
707900021
Console Lat. *side Dash
104
707900086
Filet *safety Net
107
707900087
Filet *safety Net
116
707900113
Support Planche*floor Support
117
707900114
Support Planche*floor Support
124
293200093
Anneau Neoprene*neoprene Seal (8.000 Per Pack)
125
293200093
Anneau Neoprene*neoprene Seal (8.000 Per Pack)
127
707900133
Ajout *holder
128
707900139
Defl Arr. Ga *lh Rear Defl
129
707900140
Defl Arr Dr *rh Rear Defl.
130
707900152
Дефлектор
133
707900167
Теплозащита
135
707900171
Filet *safety Net
139
707900172
Filet *safety Net
140
707900175
Plancher *floor
141
707900178
Решетка
142
707900180
Grille *grid
143
707900182
Теплозащита
144
707900183
Теплозащита
145
707900184
Теплозащита
146
707900193
Console Lat. *side Dash
