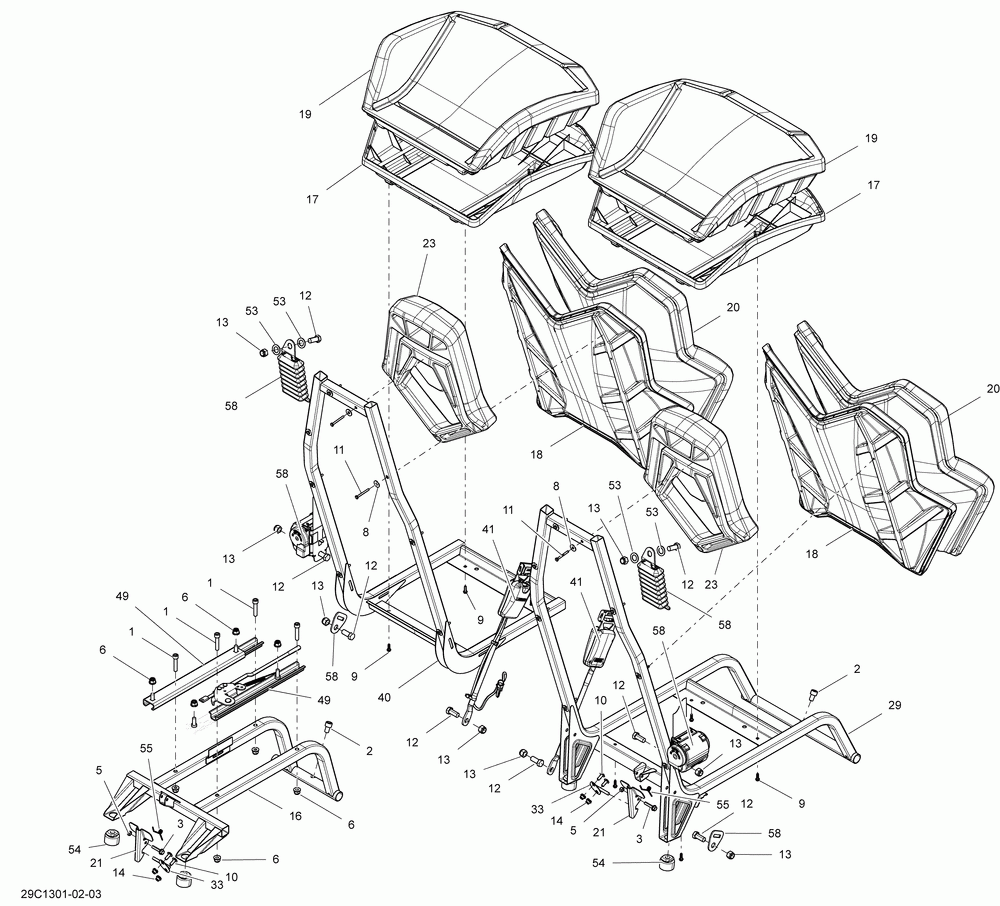

Сидение

Cam-am Commander LTD 1000
Cam-am
#oem кодцена
1
205084044
Screw-socket Hd.din.912 (5.000 Per Pack)
2
205501644
Винт
3
207663034
Screw-hex.flange Din.6921 (5.000 Per Pack)
5
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
6
233281414
Гайка Din.6926 (отпускается по 10 шт)
8
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
9
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
10
250000223
Torx-truss M/s Gm6047m Nylon Patch (5.000 Per Pack)
11
250000490
Ind.hex.washer Head Pt.screw K50 X 40 (2.000 Per Pack)
12
250000521
Screw-hex.cap 7/16 X ""1"" Grade 5 (2.000 Per Pack)
13
250100135
Nylon Insert Hex. Lock Nut 7/16-20 (2.000 Per Pack)
14
293450274
Вставка
16
708000667
Cadre Siege *seat Member
17
708001098
Coussin *cushion
18
708000933
Dossier *backrest
19
708001099
Housse *cover
20
708000935
Housse *cover
21
708001355
Loquet *loquet
23
708000711
Appuie Tte *head Rest
29
708000690
Cadre De Siege *frame
33
708001238
Tige De Retenue*lock Stem
40
708000739
Cadre *frame
41
708000844
Boucle *buckle
49
708000848
Glissiere *lh.rail
49
708000846
Glissiere *rh.rail
53
708000891
Шайба
54
708000899
Butee Caout. *rubber Bumper
55
708000921
Пружина
58
708001108
Ceinture *safety Belt
