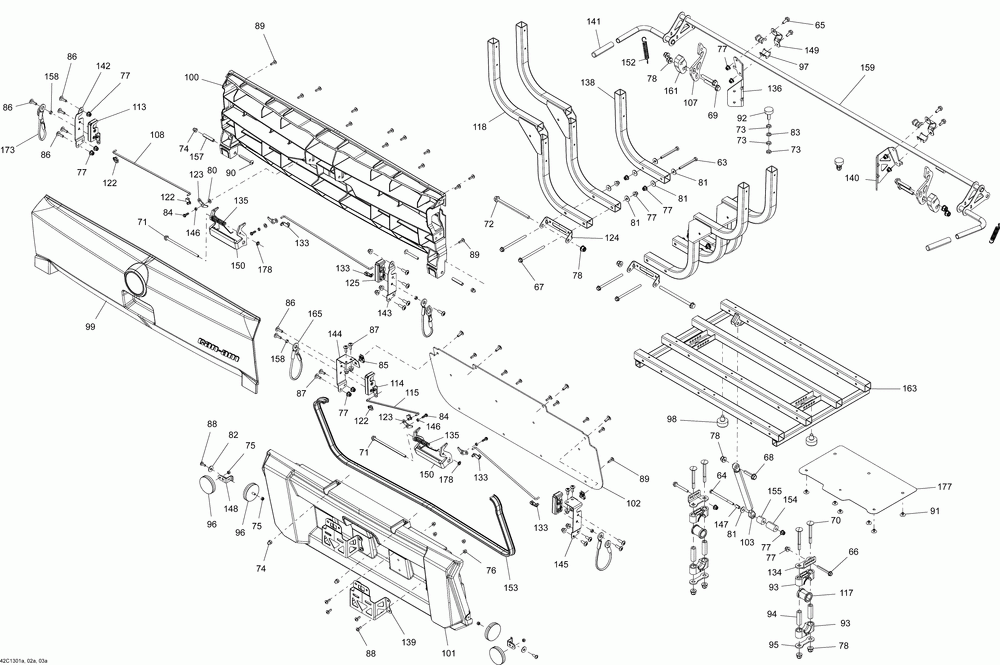

09- rear cargo box doors

Cam-am Commander STD, DPS, XT, 800R EFI
Cam-am
#oem кодцена
63
207066544
Screw-hex.cap Din.931 (5.000 Per Pack)
64
207069044
Screw-hex.cap Din.931 (5.000 Per Pack)
65
207661644
Screw-hex.flange Din.6921 (25.000 Per Pack)
66
207665044
Screw-hex.flange Din.6921 (3.000 Per Pack)
67
207669584
Screw-hex.flange Din.6921 (5.000 Per Pack)
68
207683544
Screw-hex.flange Din.6921 (10.000 Per Pack)
69
207685046
Винт
70
207787044
Bolt-carriage Din.603 (10.000 Per Pack)
71
230663084
Screw-hex.flange Din.6921 (5.000 Per Pack)
72
230683034
Винт
73
232180600
Jam Nut Hexagonal Din.439b-a2 (25.000 Per Pack)
74
232361493
Nut-domed Hexagonal Din.1587 (10.000 Per Pack)
75
232551414
Гайка-стоп
76
233251434
Nut-flange Elastic Din.6926 (europe ) (4.000 Per Pack)
77
233261414
Гайка Din.6926 (отпускается по 10 шт)
78
233281414
Гайка Din.6926 (отпускается по 10 шт)
80
234061410
Washer-flat M6 Din.125a (10.000 Per Pack)
81
234062410
Washer-flat Din.9021b (10.000 Per Pack)
82
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
83
234181401
Washer-lock Din.127b (50.000 Per Pack)
84
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
85
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
86
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
87
250000129
Torx-truss M/s Gm6047m Nylon Patch (12.000 Per Pack)
88
250000145
Torx-truss M/s Gm6047m (europe ) (10.000 Per Pack)
89
250000146
Torx-screw Truss Head Pt.k50x16 (5.000 Per Pack)
90
250000239
Torx-truss M/s Gm6047m M6 X 50 (4.000 Per Pack)
91
293150103
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
92
293720091
Appui Caout. *rubber Bumper
93
506150400
Полу-корпус
94
506150500
Изолирующая втулка
95
506150600
Пластина крепления
96
705002408
Reflecteur *reflector (north America, International )
97
705500033
Demi-bague *ring-half (5.000 Per Pack)
98
708000884
Стопор резиновый
99
708300052
Pan. Haut Ext *outsid Top Pan (xt Yellow )
99
708300441
Pan. Haut Ext *outsid Top Pan (red )
99
708300442
Pan. Haut Ext *outsid Top Pan (camo )
99
708300552
Pan. Haut Ext *outsid Top Pan (magnesium )
100
708300053
Pan. Haut Int *inside Top Pan
101
715002365
Ens. Panneau *panel Kit
102
708300073
Pan. Bas Int *inside Bot Pan
103
708301136
Амортизатор
107
708300136
Ancrage Boite *box Retainer
108
708300160
Tige Haut *top Rod
113
708300162
Loquet *latch
115
708300164
Tige Bas *bottom Rod
117
708300172
Douille Pivot *pivot Bushing
118
708300879
Montant Lateral*lateral Suppor
122
708300182
Зажим
123
708300184
Declencheur *activator
124
708300185
Support *bracket
125
708300201
Loquet *latch
133
708300202
Зажим
134
708300210
Plaque Ajustabl*ajustable Plat
135
708300219
Пружина
136
708300278
Суппорт
138
708300340
Montant Lateral*side Upright
139
708300349
Support *support (europe )
140
708300351
Суппорт
141
708300358
Embout *cap
142
708300359
Renfort *support
143
708300360
Renfort *support
144
708300361
Renfort *support
145
708300362
Renfort *support
146
708300365
Втулка
147
708300366
Втулка
148
708300367
Sup. Reflect. *reflect. Sup. (europe )
149
708300392
Bride Retenue *clamp-retainer
150
708300398
Ручка
152
708300454
Пружина
153
715900264
Anneau Neoprene*seal-neoprene (2.000 Per Pack)
154
708300470
Втулка
155
708300471
Втулка
157
708300735
Втулка
158
708300737
Втулка
159
708300751
Poignee Assembl*latch Ass Y
161
708300754
Espaceur *spacer
163
708300758
Support Boite *box Support
165
708300762
Cable Inferieur*bottom Cable
173
708300763
Cable Superieur*upper Cable
177
708300780
Deflecteur *shield
178
732610072
Ecrou Pression *push Nut (10.000 Per Pack)
