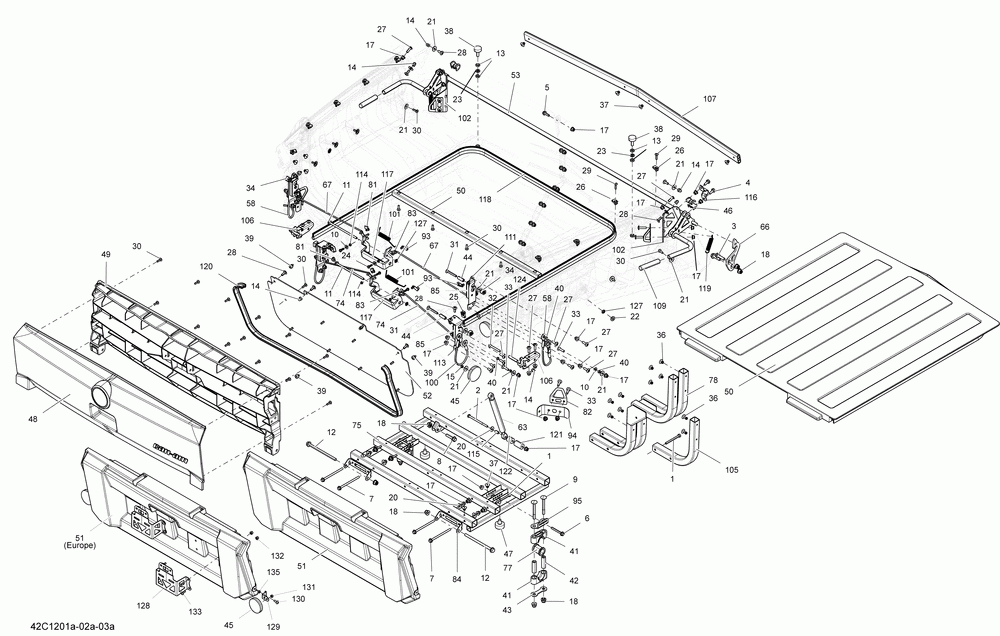

09- rear cargo box 1 common parts

Cam-am Commander STD, XT, 800R EFI
Cam-am
#oem кодцена
1
207066544
Screw-hex.cap Din.931 (5.000 Per Pack)
2
207069044
Screw-hex.cap Din.931 (5.000 Per Pack)
3
207583086
Винт
4
207661644
Screw-hex.flange Din.6921 (25.000 Per Pack)
5
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
6
207665044
Screw-hex.flange Din.6921 (3.000 Per Pack)
7
207669584
Screw-hex.flange Din.6921 (5.000 Per Pack)
8
207683544
Screw-hex.flange Din.6921 (10.000 Per Pack)
9
207787044
Bolt-carriage Din.603 (10.000 Per Pack)
10
224061121
Washer-flat (10.000 Per Pack)
11
230663084
Screw-hex.flange Din.6921 (5.000 Per Pack)
12
230683034
Винт
13
232180600
Jam Nut Hexagonal Din.439b-a2 (25.000 Per Pack)
14
232361493
Nut-domed Hexagonal Din.1587 (10.000 Per Pack)
15
232551414
Гайка-стоп
17
233261414
Гайка Din.6926 (отпускается по 10 шт)
18
233281414
Гайка Din.6926 (отпускается по 10 шт)
20
234062410
Washer-flat Din.9021b (10.000 Per Pack)
21
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
22
234081100
Washer-flat Din.125a (5.000 Per Pack)
23
234181401
Washer-lock Din.127b (50.000 Per Pack)
24
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
25
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
26
250000079
Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)
27
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
28
250000129
Torx-truss M/s Gm6047m Nylon Patch (12.000 Per Pack)
29
250000130
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
30
250000146
Torx-screw Truss Head Pt.k50x16 (5.000 Per Pack)
31
250000215
Винт Torx
32
250000239
Torx-truss M/s Gm6047m M6 X 50 (4.000 Per Pack)
33
250000284
Torx-truss M/s M6 X 25 Gm6047m
34
269500725
Держатель гайки
36
293150100
Rivet-pop 3/16 *pop Rivet 3/16 (50.000 Per Pack)
37
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
38
293720091
Appui Caout. *rubber Bumper
39
293830005
Butee *rubber Stopper (5.000 Per Pack)
40
293900101
Втулка
41
506150400
Полу-корпус
42
506150500
Изолирующая втулка
43
506150600
Пластина крепления
44
517304852
Втулка
45
705002408
Reflecteur *reflector (europe )
46
705500033
Demi-bague *ring-half (5.000 Per Pack)
47
708000884
Стопор резиновый
48
708300052
Pan. Haut Ext *outsid Top Pan (std Model, Yellow )
48
708300442
Pan. Haut Ext *outsid Top Pan (xt Model, Camo )
48
708300552
Pan. Haut Ext *outsid Top Pan (xt Model, Magnesium )
49
708300053
Pan. Haut Int *inside Top Pan
50
708300131
Separateur *separator
51
715002365
Ens. Panneau *panel Kit
52
708300073
Pan. Bas Int *inside Bot Pan
53
708300600
Poignee Assembl*latch Ass Y
58
708300763
Cable Superieur*upper Cable
63
708301136
Амортизатор
66
708300136
Ancrage Boite *box Retainer
67
708300160
Tige Haut *top Rod
74
708300164
Tige Bas *bottom Rod
75
708300758
Support Boite *box Support
77
708300172
Douille Pivot *pivot Bushing
78
708300879
Montant Lateral*lateral Suppor
81
708300182
Зажим
82
708300183
Plaque Retenu *retaining Plate
83
708300184
Declencheur *activator
84
708300185
Support *bracket
85
708300162
Loquet *latch
85
708300201
Loquet *latch
93
708300202
Зажим
94
708300206
Plaque *support
95
708300210
Plaque Ajustabl*ajustable Plat
100
708300762
Cable Inferieur*bottom Cable
101
708300219
Пружина
102
708300278
Суппорт
102
708300351
Суппорт
105
708300340
Montant Lateral*side Upright
106
708300345
Суппорт
107
708300346
Renfort *support
109
708300358
Embout *cap
111
708300359
Renfort *support
111
708300360
Renfort *support
113
708300361
Renfort *support
113
708300362
Renfort *support
114
708300365
Втулка
115
708300366
Втулка
116
708300392
Bride Retenue *clamp-retainer
117
708300398
Ручка
118
715900264
Anneau Neoprene*seal-neoprene (2.000 Per Pack)
119
708300454
Пружина
120
715900264
Anneau Neoprene*seal-neoprene (2.000 Per Pack)
121
708300470
Втулка
122
708300471
Втулка
124
708300513
Втулка
127
732610072
Ecrou Pression *push Nut (10.000 Per Pack)
128
708300349
Support *support (europe )
129
708300367
Sup. Reflect. *reflect. Sup. (europe )
130
250000145
Torx-truss M/s Gm6047m (europe ) (10.000 Per Pack)
131
232551414
Nut-stop Elastic Din.985 (europe ) (10.000 Per Pack)
132
233251434
Nut-flange Elastic Din.6926 (europe ) (4.000 Per Pack)
133
250000145
Torx-truss M/s Gm6047m (europe ) (10.000 Per Pack)
135
232551414
Nut-stop Elastic Din.985 (europe ) (10.000 Per Pack)
