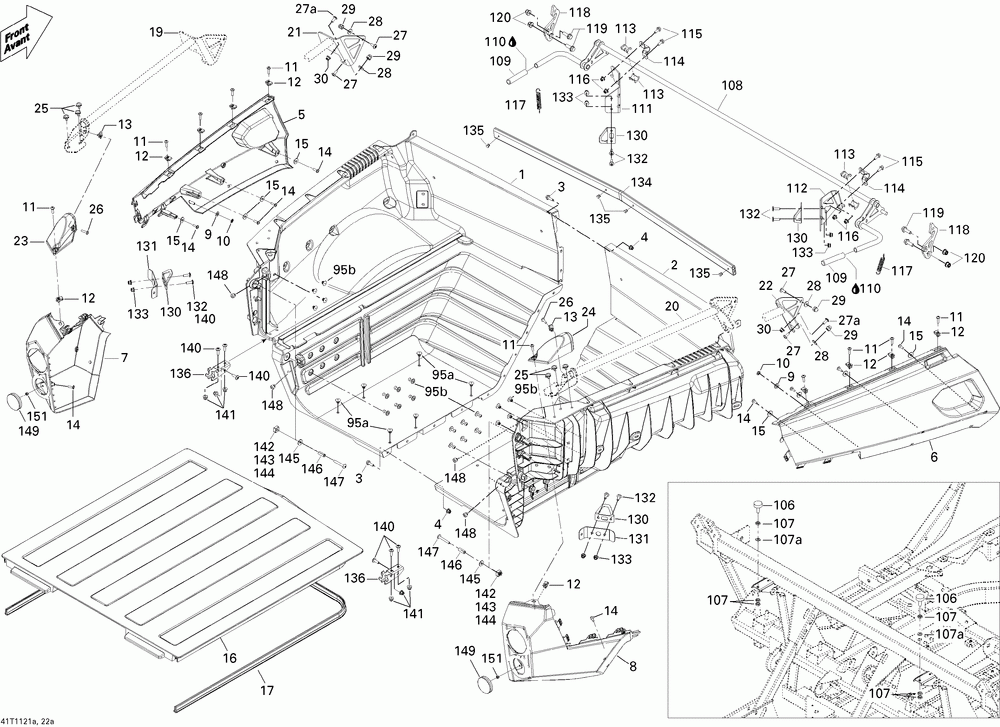

09- rear cargo box 1

Cam-am Commander 1000
Cam-am
#oem кодцена
1
715002361
Ens. Bote Ga *left Box Kit
2
715001257
Bote Droite *right Box
3
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
4
233261414
Гайка Din.6926 (отпускается по 10 шт)
5
708300820
Aile Arr. *rear Fender (std )
5
708300226
Aile Arr. *rear Fender (xt Red )
5
708300834
Aile Arriere *rear Fender (xt Camo )
5
708300828
Aile Arriere *rear Fender (x )
6
708300102
Aile Arr. *rear Fender (std )
6
708300227
Aile Arr. *rear Fender (xt Red )
6
708300438
Aile Arr. *rear Fender (xt Camo )
6
708300829
Aile Arriere *rear Fender (x )
7
708300103
Facia Arr. Ga *rear Lh. Facia
8
708300104
Facia Droit *right Facia
9
234081100
Washer-flat Din.125a (5.000 Per Pack)
10
732610072
Ecrou Pression *push Nut (10.000 Per Pack)
11
250000130
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
12
250000079
Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)
13
250000079
Extruded Panel Nut M5 X 0.8 (xt ) (10.000 Per Pack)
14
250000146
Torx-screw Truss Head Pt.k50x16 (5.000 Per Pack)
15
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
16
708300131
Separateur *separator (includes 16 To 17 )
17
715900264
Anneau Neoprene*seal-neoprene (2.000 Per Pack)
19
708300231
Rail Soud *weld Rail (xt )
20
708300232
Rail Soud *weld Rail (xt )
21
708300333
Embout De Rail *rail Cap (except Xt )
22
708300334
Embout Rail *rail Cap (except Xt )
23
708300233
Couvercle Rail *rail Cover (xt )
24
708300234
Couvercle Rail *rail Cover (xt )
25
293150190
Rivet-pop 3/16 *rivet-pop 3/16 (xt ) (2.000 Per Pack)
26
250000130
Torx-truss M/s Gm6047m Nylon Patch (xt ) (10.000 Per Pack)
27
250000129
Torx-truss M/s Gm6047m Nylon Patch (12.000 Per Pack)
28
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
29
232361493
Nut-domed Hexagonal Din.1587 (10.000 Per Pack)
30
233261414
Гайка Din.6926 (отпускается по 10 шт)
106
293720091
Appui Caout. *rubber Bumper
107
232180600
Jam Nut Hexagonal Din.439b-a2 (25.000 Per Pack)
108
708300491
Poignee Assembl*latch Ass Y
109
708300358
Embout *cap
110
293800100
Loctite 406 *loctite-406
111
708300278
Суппорт
112
708300351
Суппорт
113
705500033
Demi-bague *ring-half (5.000 Per Pack)
114
708300392
Bride Retenue *clamp-retainer
115
207661644
Screw-hex.flange Din.6921 (25.000 Per Pack)
116
233261414
Гайка Din.6926 (отпускается по 10 шт)
117
708300454
Пружина
118
708300136
Ancrage Boite *box Retainer
119
207583086
Винт
120
233281414
Гайка Din.6926 (отпускается по 10 шт)
130
708300183
Plaque Retenu *retaining Plate
131
708300206
Plaque *support
132
250000284
Torx-truss M/s M6 X 25 Gm6047m
133
233261414
Гайка Din.6926 (отпускается по 10 шт)
134
708300346
Renfort *support
135
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
136
708300345
Суппорт
140
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
141
233261414
Гайка Din.6926 (отпускается по 10 шт)
142
269500725
Logement Ecrou *housing-nut As (includes 142 To 144 )
143
269500252
Logement Ecrou *housing-nut As (2.000 Per Pack)
144
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
145
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
146
517304852
Втулка
147
250000215
Винт Torx
148
293830005
Butee *rubber Stopper (5.000 Per Pack)
149
705002408
Reflecteur *reflector (except Europe )
151
232551414
Nut-stop Elastic Din.985 (except Europe ) (10.000 Per Pack)
27a
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
95a
293150100
Rivet-pop 3/16 *pop Rivet 3/16 (50.000 Per Pack)
95b
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
107a
234181401
Washer-lock Din.127b (50.000 Per Pack)
