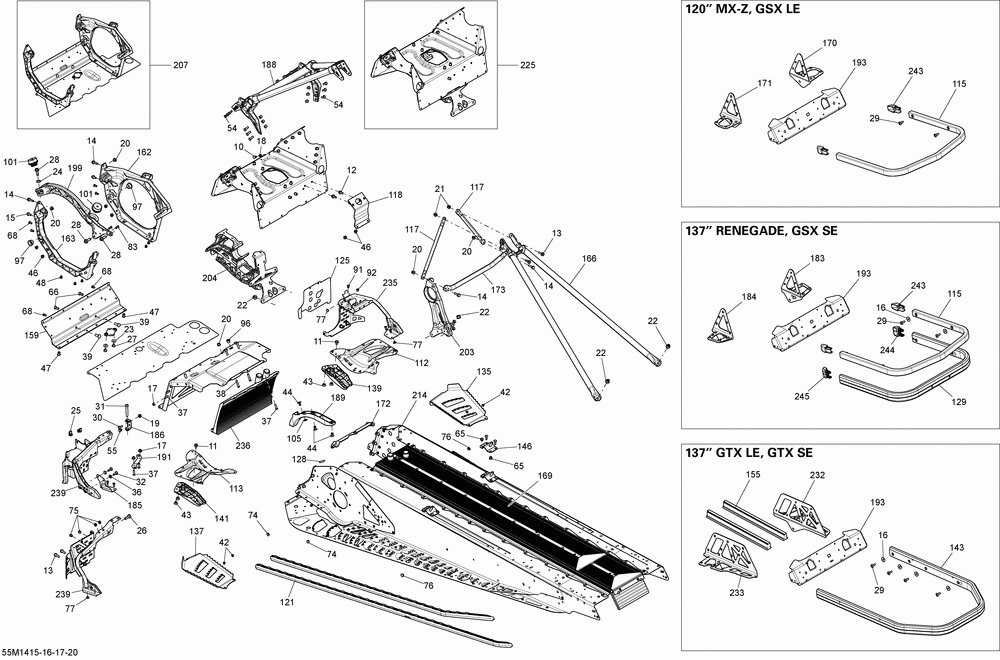

09- frame and components _55m1415

Ski-Doo (Bombardier) MXZ TNT 12004TEC XR
Ski-Doo (Bombardier)
#oem кодцена
11
207561244
Винт
12
207661644
Screw-hex.flange Din.6921 (25.000 Per Pack)
13
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
14
207662544
Screw-hex.flange Din.6921 (25.000 Per Pack)
15
210261680
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
17
232561434
Гайка с тефлоном
19
233061414
Nut-flange Hexagonal Din.6927 (10.000 Per Pack)
20
233261414
Гайка Din.6926 (отпускается по 10 шт)
21
233261416
Гайка
22
233281414
Гайка Din.6926 (отпускается по 10 шт)
23
234062410
Washer-flat Din.9021b (10.000 Per Pack)
24
234281474
Washer-spring Conical Din.6796 (10.000 Per Pack)
24
234281474
Washer-spring Conical Din.6796 (10.000 Per Pack)
25
250000079
Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)
25
250000079
Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)
27
250000349
Torx-truss M/s Stlss Nylon Patch
27
250000349
Torx-truss M/s Stlss Nylon Patch
28
250000351
Screw-hex.flange Nylon Patch Din.6921 (5.000 Per Pack)
30
250000534
Torx-truss M/s Bzn 3m-2353y M6x16
30
250000534
Torx-truss M/s Bzn 3m-2353y M6x16
31
250000535
Torx-truss M/s Bzn 3m-2353y M8x55
31
250000535
Torx-truss M/s Bzn 3m-2353y M8x55
32
250000536
Torx-truss M/s Bzn Nylon Lock M6x18
32
250000536
Torx-truss M/s Bzn Nylon Lock M6x18
36
250200039
Rondelle Plate *flat Washer (10.000 Per Pack)
36
250200039
Rondelle Plate *flat Washer (10.000 Per Pack)
37
250300027
Goujon Sertir*clinch Stud
37
250300027
Goujon Sertir*clinch Stud
38
250300031
Goujon Sertir*clinch Stud (4.000 Per Pack)
38
250300031
Goujon Sertir*clinch Stud (4.000 Per Pack)
39
250300038
Goujon Sertir*clinch Stud
39
250300038
Goujon Sertir*clinch Stud
43
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
43
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
44
293150108
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
44
293150108
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
46
293150119
Rivet *rivet (5.000 Per Pack)
46
293150119
Rivet *rivet (5.000 Per Pack)
47
293150120
Rivet Hemlock *rivet-hemlock 6.5mm (4.000 Per Pack)
47
293150120
Rivet Hemlock *rivet-hemlock 6.5mm (4.000 Per Pack)
48
293150144
Rivet Stavex *stavex Rivet (20.000 Per Pack)
48
293150144
Rivet Stavex *stavex Rivet (20.000 Per Pack)
54
293150146
Rivet Henrob *henrob Rivet (10.000 Per Pack)
54
293150146
Rivet Henrob *henrob Rivet (10.000 Per Pack)
55
293150147
Rivet *rivet (10.000 Per Pack)
55
293150147
Rivet *rivet (10.000 Per Pack)
65
293150174
Rivet Hemlock *hemlock Rivet (10.000 Per Pack)
65
293150174
Rivet Hemlock *hemlock Rivet (10.000 Per Pack)
66
293150182
Monobolt 6.4 X *monobolt 6.4 (2.000 Per Pack)
66
293150182
Monobolt 6.4 X *monobolt 6.4 (2.000 Per Pack)
68
293150191
Monobolt 4.8 *monobolt 4.8 (4.000 Per Pack)
74
293730047
Dard 8 Mm *dart 8 Mm
74
293730047
Dard 8 Mm *dart 8 Mm
76
293730060
Dard 10 Mm *dart 10 Mm
76
293730060
Dard 10 Mm *dart 10 Mm
77
293730042
Dard 5-6 *dart 5-6
77
293730042
Dard 5-6 *dart 5-6
83
390407200
Rivet-pop 3/16 *rivet-pop 3/16 (50.000 Per Pack)
83
390407200
Rivet-pop 3/16 *rivet-pop 3/16 (50.000 Per Pack)
91
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
91
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
92
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
92
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
96
293450275
Вставка
96
293450275
Вставка
97
505073317
Подушка
97
505073317
Подушка
101
512060295
Опора крепления
101
512060295
Опора крепления
105
517124300
Шайба (отпускается по 10 шт)
105
517124300
Шайба (отпускается по 10 шт)
112
518324874
Renfort Dr *reinforcement
112
518324874
Renfort Dr *reinforcement
113
518324875
Renfort Ga *reinforcement
113
518324875
Renfort Ga *reinforcement
115
518325481
Pare-choc *rear Bumper
115
518325481
Pare-choc *rear Bumper
117
518325114
Support Colonne*support
117
518325114
Support Colonne*support
118
518325371
Support Mag *mag Support
118
518325371
Support Mag *mag Support
121
518324812
Rouleau Droit *roller-rh
121
518324812
Rouleau Droit *roller-rh
121
518324813
Rouleau *roller-lh
121
518324813
Rouleau *roller-lh
125
518325418
Deflecteur *heat Shield
128
518325560
Rondelle *adhesive Patch
128
518325560
Rondelle *adhesive Patch
139
518325782
Deflecteur Dr. *rh Deflector
139
518325782
Deflecteur Dr. *rh Deflector
141
518325783
Deflecteur Ga. *lh Deflector
141
518325783
Deflecteur Ga. *lh Deflector
146
518325973
Embase Arrire *rear Base
146
518325973
Embase Arrire *rear Base
146
518325974
Embase Arrire *rear Base
146
518325974
Embase Arrire *rear Base
159
518326198
Traverse Avant *front Member
159
518326198
Traverse Avant *front Member
162
518326328
Longeron Dr *rh Member
162
518326328
Longeron Dr *rh Member
163
518326330
Longeron Ga *lh Member
163
518326330
Longeron Ga *lh Member
166
518326559
Membrure Arr *member-rear
166
518326559
Membrure Arr *member-rear
169
518326666
Radiateur Arr.s*rear Rad. Weld
169
518326666
Radiateur Arr.s*rear Rad. Weld
170
518326654
Att.susp.dr. *slide Brkt Rh
170
518326654
Att.susp.dr. *slide Brkt Rh
171
518326655
Att.susp. *slide Brkt
171
518326655
Att.susp. *slide Brkt
172
518326656
Уплотнение
172
518326656
Уплотнение
173
518326657
Support Colonne*upper Column
173
518326657
Support Colonne*upper Column
185
518326960
Суппорт
185
518326960
Суппорт
186
518326961
Attache *attach
186
518326961
Attache *attach
188
518326970
Membrure Av *member-front
189
518326973
Protecteur Av. *front Protect.
189
518326973
Protecteur Av. *front Protect.
191
518326986
Attache *attach
191
518326986
Attache *attach
193
518327105
Capuchon *rear Cap
193
518327105
Capuchon *rear Cap
199
518327392
Bretelle Ass *as Brace
199
518327392
Bretelle Ass *as Brace
203
518327460
Support Poulie *pulley Support
203
518327460
Support Poulie *pulley Support
204
518327475
Суппорт
204
518327475
Суппорт
207
518327485
Module E *module E
207
518327485
Module E *module E
214
415129814
Chassis *frame
214
415129814
Chassis *frame
225
518327721
Module S *cross Member
225
518327721
Module S *cross Member
235
518327863
Etrier Droit *rh.stirup
235
518327863
Etrier Droit *rh.stirup
236
518327907
Radiateur Avant*front Radiator
236
518327907
Radiateur Avant*front Radiator
239
518326820
Etrier Ga. *lh.stirup
239
518326820
Etrier Ga. *lh.stirup
243
520000840
Крышка
243
520000840
Крышка
