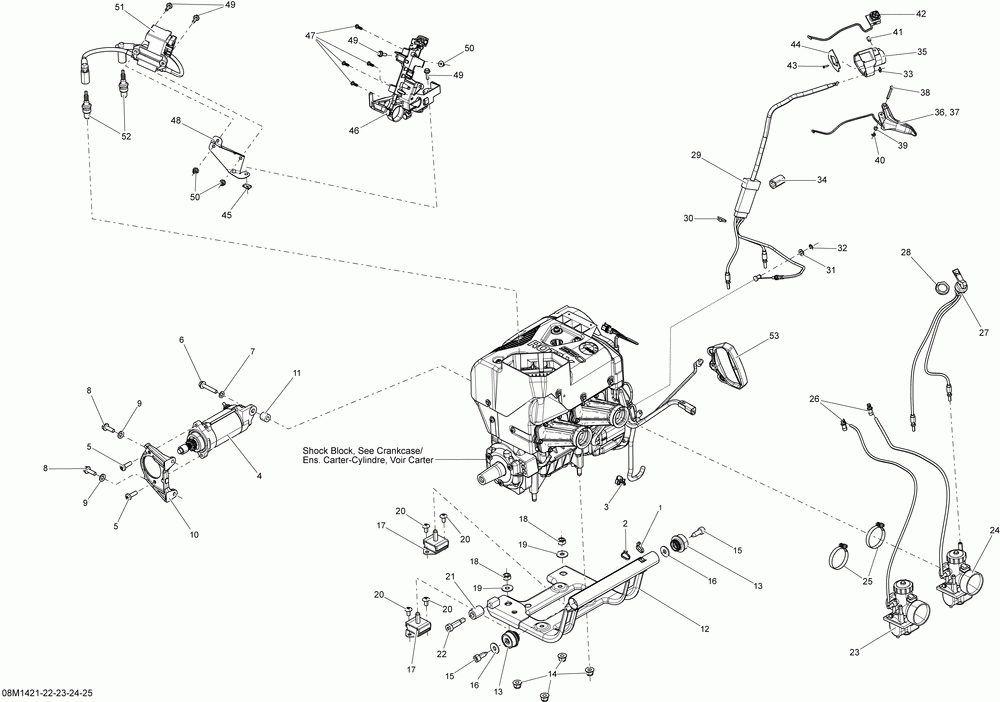

Двигатель и крепление

Ski-Doo (Bombardier) RENEGADE SPORT 550F XP
Ski-Doo (Bombardier)
#oem кодцена
1
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
2
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
3
515176795
Attache *clip (5.000 Per Pack)
4
515177389
Demarreur *starter (electric Start )
5
250000248
Screw-pan Hd.torx Black Scotch Grip (electric Start )
5
250000248
Screw-pan Hd.torx Black Scotch Grip (electric Start )
6
207584544
Screw-hex.flange Din.6921 S.grip (electric Start ) (2.000 Per Pack)
6
207584544
Screw-hex.flange Din.6921 S.grip (electric Start ) (2.000 Per Pack)
7
250200008
Washer-flat Din.125a Teflon-coat (electric Start ) (5.000 Per Pack)
7
250200008
Washer-flat Din.125a Teflon-coat (electric Start ) (5.000 Per Pack)
8
207582586
Screw-hex.flange Din.6921 S.grip (electric Start )
8
207582586
Screw-hex.flange Din.6921 S.grip (electric Start )
9
250200146
Washer-spring Conical (electric Start )
9
250200146
Washer-spring Conical (electric Start )
10
512060656
Attache *support (electric Start )
10
512060656
Attache *support (electric Start )
11
515176597
Entretoise *spacer (electric Start )
11
515176597
Entretoise *spacer (electric Start )
12
512060637
Socle *engine Support (includes 12 To 13 )
12
512060637
Socle *engine Support (includes 12 To 13 )
13
512059691
Опора крепления
14
233201414
Гайка Din.6926 (отпускается по 10 шт)
14
233201414
Гайка Din.6926 (отпускается по 10 шт)
15
250000094
Винт M10 X 30
15
250000094
Винт M10 X 30
16
250200014
Rondelle Plate *washer-flat (10.000 Per Pack)
16
250200014
Rondelle Plate *washer-flat (10.000 Per Pack)
17
512060564
Опора крепления
17
512060564
Опора крепления
18
232500416
Nut-stop Elastic Din.985 (4.000 Per Pack)
18
232500416
Nut-stop Elastic Din.985 (4.000 Per Pack)
19
250200014
Rondelle Plate *washer-flat (10.000 Per Pack)
20
250000198
Torx Truss M/s M8 X 16 (5.000 Per Pack)
19
250200014
Rondelle Plate *washer-flat (10.000 Per Pack)
21
512060395
Стопор
22
250000463
Screw-socket Shoulder Iso.7379
22
250000463
Screw-socket Shoulder Iso.7379
23
403138814
Carb.vm-30 *carb-vm-30
23
403138814
Carb.vm-30 *carb-vm-30
24
403138813
Carb.vm-30 *carb-vm-30
24
403138813
Carb.vm-30 *carb-vm-30
25
512059834
Хомут
25
512059834
Хомут
26
414814100
Raccord Male *connector-male (5.000 Per Pack)
26
414814100
Raccord Male *connector-male (5.000 Per Pack)
27
512060674
Cable Etrang. *choke Cable
27
512060674
Cable Etrang. *choke Cable
28
512060671
Гайка
28
512060671
Гайка
29
512060891
Трос газа
29
512060891
Трос газа
30
293750002
Tie Rap 142mm *tie-rap 142mm (10.000 Per Pack)
30
293750002
Tie Rap 142mm *tie-rap 142mm (10.000 Per Pack)
31
234081100
Washer-flat Din.125a (5.000 Per Pack)
31
234081100
Washer-flat Din.125a (5.000 Per Pack)
32
414753500
Circlip-type Bs N (10.000 Per Pack)
32
414753500
Circlip-type Bs N (10.000 Per Pack)
33
414274500
Circlip-black Chromate (10.000 Per Pack)
33
414274500
Circlip-black Chromate (10.000 Per Pack)
34
512060313
Защита
34
512060313
Защита
35
512060603
Корпус дросселя
35
512060603
Корпус дросселя
36
512060307
Manette Ass. *handle-assy (includes 36 To 37 )
36
512060307
Manette Ass. *handle-assy (includes 36 To 37 )
37
515175232
Cosse Male *terminal-male (10.000 Per Pack)
38
414438700
Goupille Levier*pin-lever (5.000 Per Pack)
38
414438700
Goupille Levier*pin-lever (5.000 Per Pack)
39
234051600
Washer-flat Din.125a-a2 (10.000 Per Pack)
39
234051600
Washer-flat Din.125a-a2 (10.000 Per Pack)
40
293370050
Anneau Retenue *circlip (5.000 Per Pack)
40
293370050
Anneau Retenue *circlip (5.000 Per Pack)
41
414440800
Screw-set Din 916-a2 (5.000 Per Pack)
41
414440800
Screw-set Din 916-a2 (5.000 Per Pack)
42
515177362
Кнопка "СТОП"
42
515177362
Кнопка "СТОП"
43
250000265
Screw-tapp.pan.hd.torx Din.7981c (5.000 Per Pack)
43
250000265
Screw-tapp.pan.hd.torx Din.7981c (5.000 Per Pack)
44
512060390
Пластина
44
512060390
Пластина
45
293100003
Ecrou A Souder *weld Nut A2 (6.000 Per Pack)
45
293100003
Ecrou A Souder *weld Nut A2 (6.000 Per Pack)
46
512060924
Support Bob *support Coils
46
512060924
Support Bob *support Coils
47
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
47
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
48
512060460
Attache Bob *support Coils
48
512060460
Attache Bob *support Coils
49
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
50
233261414
Гайка Din.6926 (отпускается по 10 шт)
50
233261414
Гайка Din.6926 (отпускается по 10 шт)
51
512060324
Модуль
51
512060324
Модуль
52
512059552
Bougie Br9ecs-5*spark Plug (10.000 Per Pack)
52
512059552
Bougie Br9ecs-5*spark Plug (10.000 Per Pack)
53
512060136
Poignee Demarr.*starter Grip
53
512060136
Poignee Demarr.*starter Grip
