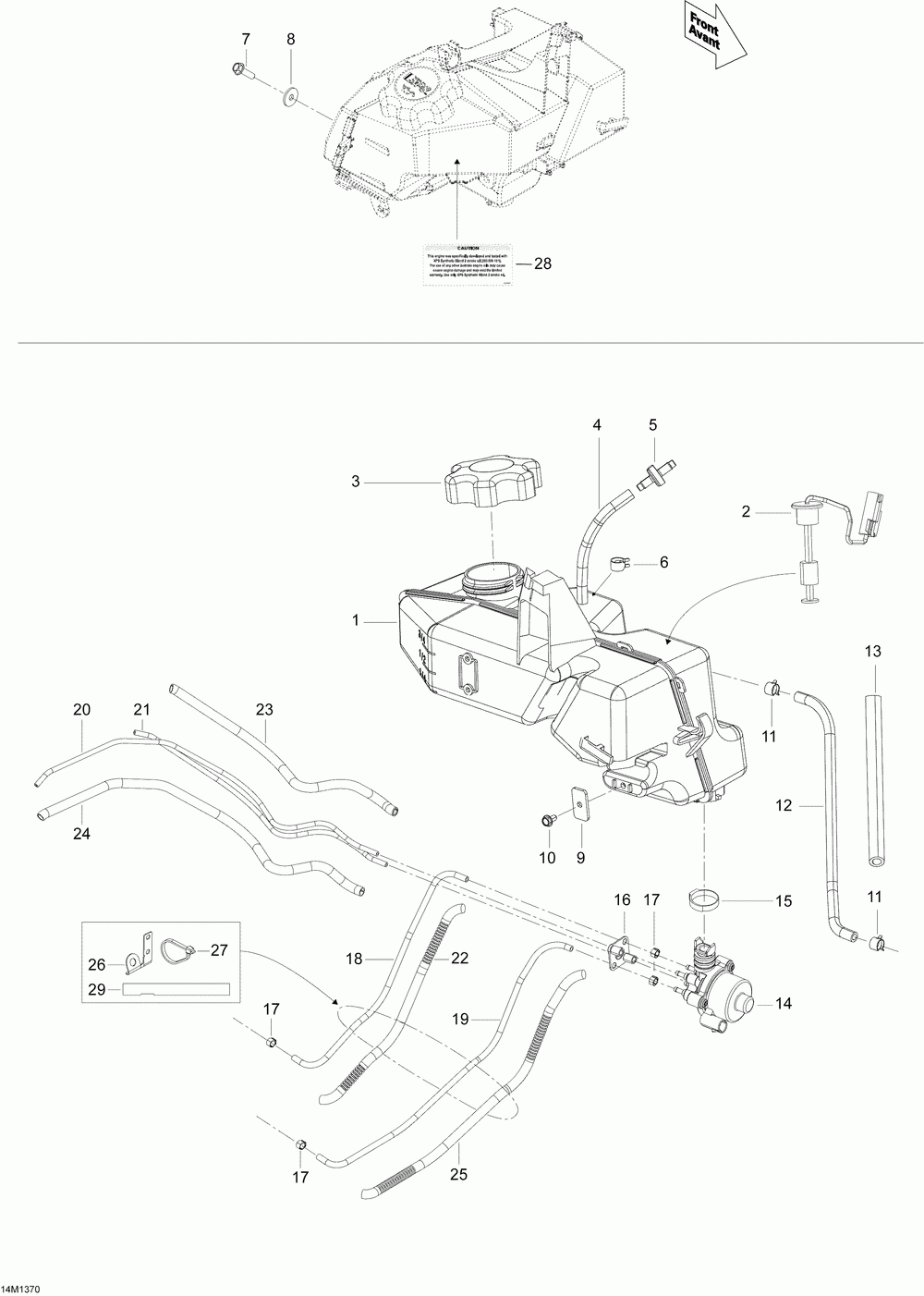

Масляная система

Ski-Doo (Bombardier) EXPEDITION LE 600HOE, REV XU
Ski-Doo (Bombardier)
#oem кодцена
1
519000251
Reservoir Huile*oil Tank
2
515176978
Capteur Niveau *level Sensor
3
519000194
Крышка
4
415080200
Boyau Polyure *polyurethane Hose (10.000 Per Pack)
5
275500398
Клапан
6
414554800
Bride A Ressort*clamp-spring (10.000 Per Pack)
7
250000331
Screw-forming S.grip Hex.hd.fl.gm6174m
8
224061201
Washer-flat (10.000 Per Pack)
9
519000179
Кронштейн
10
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
11
414420700
Bride A Ressort*clamp-spring (10.000 Per Pack)
12
414554800
Bride A Ressort*clamp-spring (10.000 Per Pack)
13
415080200
Boyau Polyure *polyurethane Hose (10.000 Per Pack)
14
519000281
Pompe Huile *oil Pump
15
293650099
Collet A Sertir*crimp Clamp
16
293650100
Bride Serrage *clamp-oetiker (5.000 Per Pack)
17
519000182
Boyau 3.5mm *hose-3.5mm
18
519000182
Boyau 3.5mm *hose-3.5mm
19
519000184
Boyau 2.5mm *hose-2.5mm
20
519000184
Boyau 2.5mm *hose-2.5mm
21
515175442
Gaine *housing (3.000 Per Pack)
22
515175442
Gaine *housing (3.000 Per Pack)
23
515175442
Gaine *housing (3.000 Per Pack)
24
515175442
Gaine *housing (3.000 Per Pack)
25
519000245
Кронштейн
26
293750002
Tie Rap 142mm *tie-rap 142mm (10.000 Per Pack)
27
516005528
Decalque Aver. *warning Decal.
28
516004648
Decal Protect *protect Decal
29
519000271
Support *bracket
