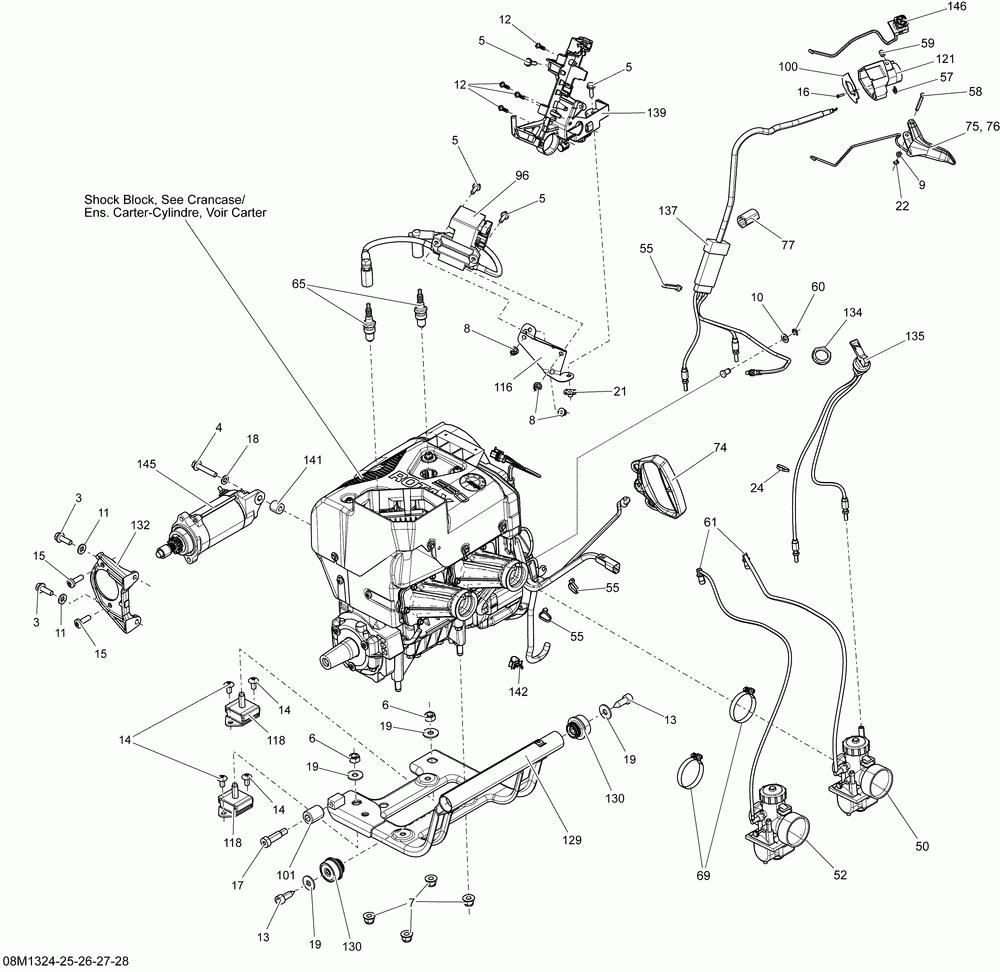

Двигатель и крепление

Ski-Doo (Bombardier) EXPEDITION SPORT 550F XP
Ski-Doo (Bombardier)
#oem кодцена
3
207582586
Screw-hex.flange Din.6921 S.grip (electric Start )
4
207584544
Screw-hex.flange Din.6921 S.grip (electric Start ) (2.000 Per Pack)
5
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
6
232500416
Nut-stop Elastic Din.985 (4.000 Per Pack)
7
233201414
Гайка Din.6926 (отпускается по 10 шт)
8
233261414
Гайка Din.6926 (отпускается по 10 шт)
9
234051600
Washer-flat Din.125a-a2 (10.000 Per Pack)
10
234081100
Washer-flat Din.125a (5.000 Per Pack)
11
250200146
Washer-spring Conical (electric Start )
12
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
13
250000094
Винт M10 X 30
14
250000198
Torx Truss M/s M8 X 16 (5.000 Per Pack)
15
250000248
Screw-pan Hd.torx Black Scotch Grip (electric Start )
16
250000265
Screw-tapp.pan.hd.torx Din.7981c (5.000 Per Pack)
17
250000463
Screw-socket Shoulder Iso.7379
18
250200008
Washer-flat Din.125a Teflon-coat (electric Start ) (5.000 Per Pack)
19
250200014
Rondelle Plate *washer-flat (10.000 Per Pack)
21
293100003
Ecrou A Souder *weld Nut A2 (6.000 Per Pack)
22
293370050
Anneau Retenue *circlip (5.000 Per Pack)
24
293750002
Tie Rap 142mm *tie-rap 142mm (10.000 Per Pack)
50
403138813
Carb.vm-30 *carb-vm-30
52
403138814
Carb.vm-30 *carb-vm-30
55
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
57
414274500
Circlip-black Chromate (10.000 Per Pack)
58
414438700
Goupille Levier*pin-lever (5.000 Per Pack)
59
414440800
Screw-set Din 916-a2 (5.000 Per Pack)
60
414753500
Circlip-type Bs N (10.000 Per Pack)
61
414814100
Raccord Male *connector-male (5.000 Per Pack)
65
512059552
Bougie Br9ecs-5*spark Plug (10.000 Per Pack)
69
512059834
Хомут
74
512060136
Poignee Demarr.*starter Grip
75
512060307
Manette Ass. *handle-assy (includes 75 To 76 )
76
515175232
Cosse Male *terminal-male (10.000 Per Pack)
77
512060313
Защита
96
512060324
Модуль
100
512060390
Пластина
101
512060395
Стопор
116
512060460
Attache Bob *support Coils
118
512060564
Опора крепления
121
512060603
Корпус дросселя
129
512060637
Socle *engine Support (includes 129 To 130 )
130
512059691
Опора крепления
132
512060656
Attache *support (electric Start )
134
512060671
Гайка
135
512060674
Cable Etrang. *choke Cable
137
512060690
Трос газа
139
512060745
Support Bob *support Coils
141
515176597
Entretoise *spacer (electric Start )
142
515176795
Attache *clip (5.000 Per Pack)
145
515177389
Demarreur *starter (electric Start )
146
515177362
Кнопка "СТОП"
