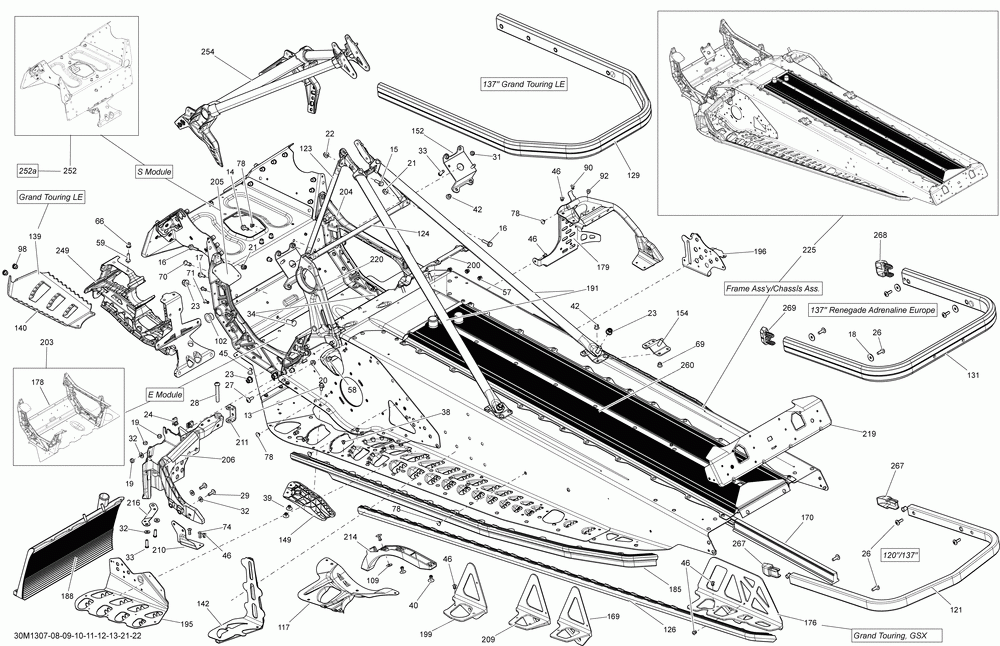

Рама

Ski-Doo (Bombardier) MXZ XRS 600HOE
Ski-Doo (Bombardier)
#oem кодцена
13
207561244
Винт
14
207661644
Screw-hex.flange Din.6921 (25.000 Per Pack)
15
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
16
207662544
Screw-hex.flange Din.6921 (25.000 Per Pack)
17
210261680
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
18
224061201
Washer-flat (10.000 Per Pack)
19
232561434
Гайка с тефлоном
20
233061414
Nut-flange Hexagonal Din.6927 (10.000 Per Pack)
21
233261414
Гайка Din.6926 (отпускается по 10 шт)
22
233261416
Гайка
23
233281414
Гайка Din.6926 (отпускается по 10 шт)
24
250000079
Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)
26
250000402
Torx-truss M/s Gm6047m N.patch M6 X 18 (5.000 Per Pack)
27
250000534
Torx-truss M/s Bzn 3m-2353y M6x16
28
250000535
Torx-truss M/s Bzn 3m-2353y M8x55
29
250000536
Torx-truss M/s Bzn Nylon Lock M6x18
32
250200039
Rondelle Plate *flat Washer (10.000 Per Pack)
33
250300027
Goujon Sertir*clinch Stud
34
250300038
Goujon Sertir*clinch Stud
38
293150102
Rivet-pop 3/16 *pop Rivet 3/16 (10.000 Per Pack)
39
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
40
293150108
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
42
293150119
Rivet *rivet (5.000 Per Pack)
45
293150120
Rivet Hemlock *rivet-hemlock 6.5mm (4.000 Per Pack)
46
293150144
Rivet Stavex *stavex Rivet (20.000 Per Pack)
57
293150146
Rivet Henrob *henrob Rivet (10.000 Per Pack)
58
293150147
Rivet *rivet (10.000 Per Pack)
59
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
66
233261414
Гайка Din.6926 (отпускается по 10 шт)
69
293150174
Rivet Hemlock *hemlock Rivet (10.000 Per Pack)
70
293150182
Monobolt 6.4 X *monobolt 6.4 (2.000 Per Pack)
71
293150191
Monobolt 4.8 *monobolt 4.8 (4.000 Per Pack)
78
293730042
Dard 5-6 *dart 5-6
90
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
92
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
102
505073317
Подушка
109
517124300
Шайба (отпускается по 10 шт)
117
518324874
Renfort Dr *reinforcement
117
518324875
Renfort Ga *reinforcement
121
518325481
Pare-choc *rear Bumper
123
518325114
Support Colonne*support
124
518325115
Support Colonne*upper Column
142
518325747
Renfort Droite *rh Reinforce. (mxz Xrs )
142
518325748
Renfort Droite *lh Reinforce. (mxz Xrs )
149
518325782
Deflecteur Dr. *rh Deflector
149
518325783
Deflecteur Ga. *lh Deflector
152
518325943
Support Mag *mag Support
154
518325973
Embase Arrire *rear Base
154
518325974
Embase Arrire *rear Base
170
860200802
Prot. Chassis *tunnel Prot.
178
518326198
Traverse Avant *front Member
179
518326216
Etrier Droit *rh.stirup
185
518326282
Rouleau Droit *roller-rh (mxz Xrs )
185
518326283
Rouleau *roller-lh (mxz Xrs )
188
518326485
Radiateur Avant*front Radiator
191
518326559
Membrure Arr *member-rear
195
860200522
Renfort Chassis*chassis Kit
196
518326616
Attache Droite *rh Retainer
196
518326617
Attache Gauche *lh.support
199
518326654
Att.susp.dr. *slide Brkt Rh (mxz Xrs, Tnt )
199
518326655
Att.susp. *slide Brkt (mxz Xrs, Tnt )
200
518326656
Уплотнение
203
518327567
Module E *module E
204
518326795
Longeron Dr *rh Member
205
518326796
Longeron Ga *lh Member
206
518326820
Etrier Ga. *lh.stirup
210
518326960
Суппорт
211
518326961
Attache *attach
214
518326973
Protecteur Av. *front Protect.
216
518326986
Attache *attach
219
518327105
Capuchon *rear Cap
220
518327460
Support Poulie *pulley Support
225
415129735
Chassis *frame
249
518327475
Суппорт
252
518327503
Module S *cross Member (mxz Xrs )
254
518327565
Membrure Av *member-front (mxz Xrs )
260
518327580
Radiateur Arr.s*rear Rad. Weld (mxz Xrs )
267
520000840
Крышка
252a
505072392
Шайба *шайба
