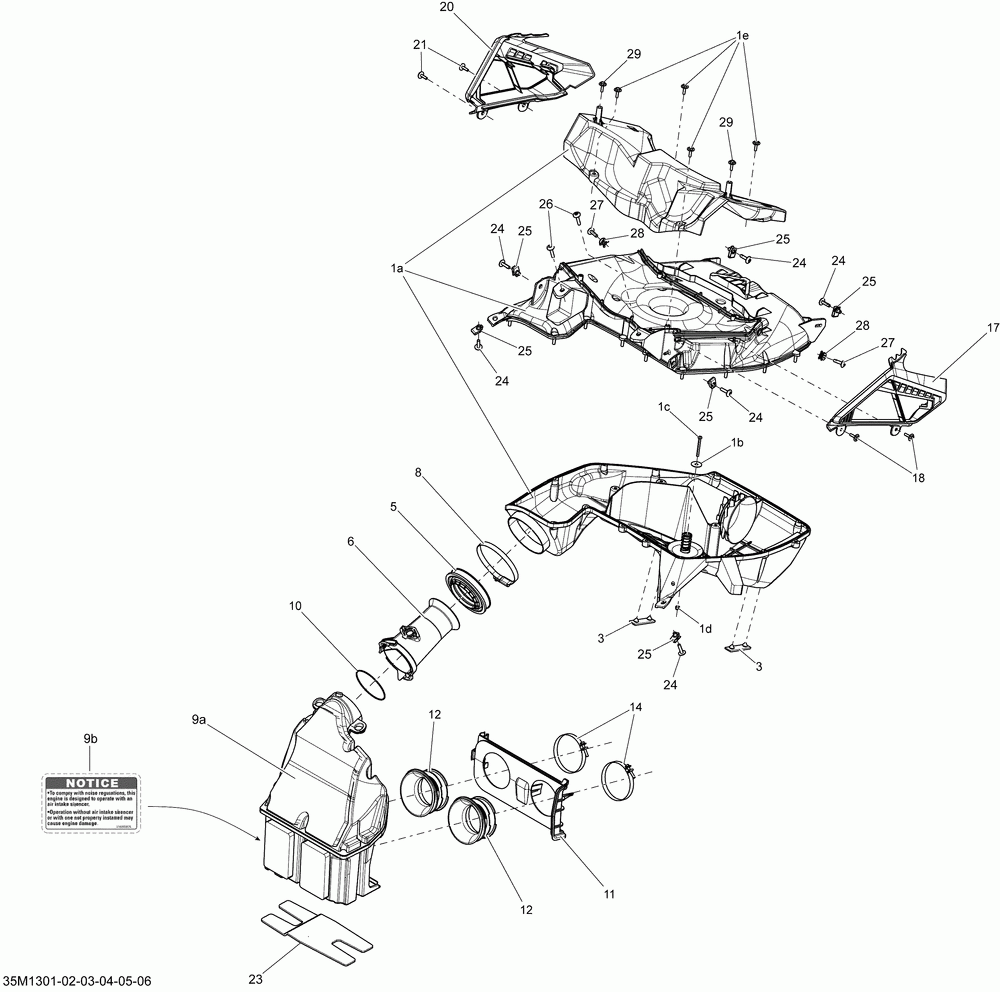

02- air intake system 800retc Запчасти для снегоходов Ski-Doo (Bombardier) RENEGADE BACK COUNTRY X 800RE XS (2013)

02- air intake system 800retc

Ski-Doo (Bombardier) RENEGADE BACK COUNTRY X 800RE XS

oem код

название

цена

Стопор

Впускной Адаптер

Flute *flute

Зажим

Уплотнительное кольцо

508000613

Plaque Adapt. *adapter Plate

508000614

Adap.admission *adap-air Intak

508000346

Зажим

508000730

Фильтр воздушный

250000113

Screw Plastite Type K-40 M4 X 16 (2.000 Per Pack)

508000722

Chambre Second.*sec. Chamber (includes 1a To 1e )

224060201

Flat Washer (10.000 Per Pack)

205444086

Screw-socket Bn.hd.gm6174 (10.000 Per Pack)

232541414

Гайка-стоп

250000113

Screw Plastite Type K-40 M4 X 16 (2.000 Per Pack)

508000731

Фильтр воздушный

250000113

Screw Plastite Type K-40 M4 X 16 (2.000 Per Pack)

508000739

Поролон

250000528

Torx-truss M/s Nylon Patch M5x20 (5.000 Per Pack)

250000079

Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)

250000587

Torx-truss M/s Nylon Patch M5x26

250000528

Torx-truss M/s Nylon Patch M5x20 (5.000 Per Pack)

250100035

Ecrou Sertis. *jack-nut M5

250000113

Screw Plastite Type K-40 M4 X 16 (2.000 Per Pack)

508000660

Chambre Ass. *chamber Ass Y (includes 9a To 9b )

516005876

Decal *label
