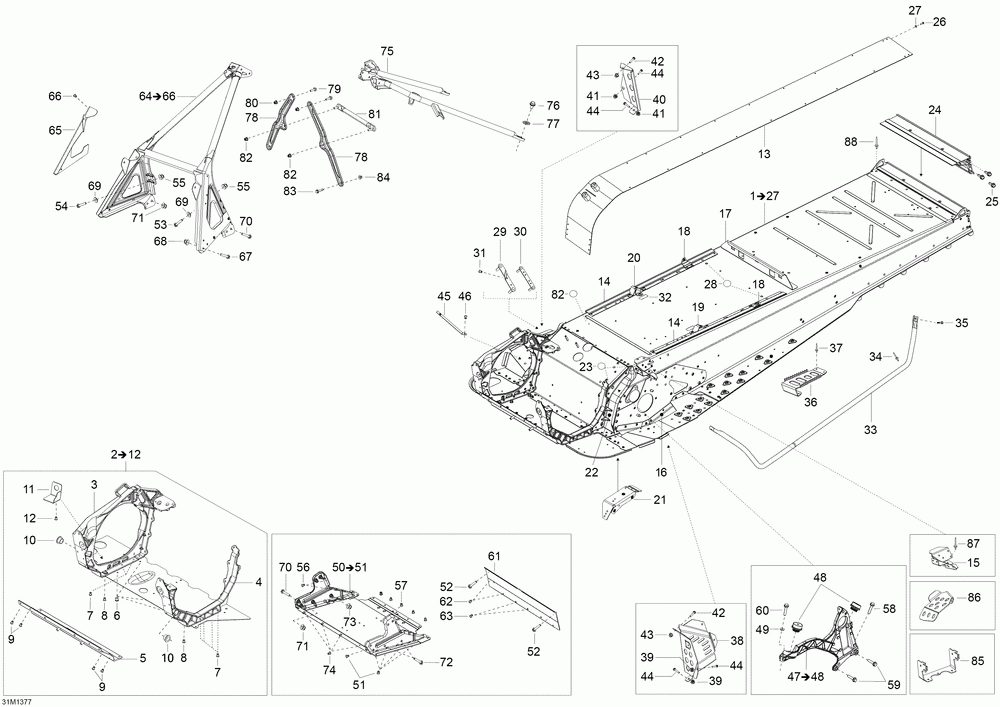

Рама

Ski-Doo (Bombardier) Skandic SWT 600 ACE (4-strokes) XU
Ski-Doo (Bombardier)
#oem кодцена
1
518327038
Chassis *frame (includes 1 To 27 Includes 1 To 27)
2
518326518
Module E *module E (includes 2 To 12 Includes 2 To 12)
3
518326328
Longeron Dr *rh Member
4
518326330
Longeron Ga *lh Member
5
518326198
Traverse Avant *front Member
6
605636002
Clinch Nut M8 Hexsert
7
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
8
293150120
Rivet Hemlock *rivet-hemlock 6.5mm (4.000 Per Pack)
9
293150119
Rivet *rivet (5.000 Per Pack)
10
505072690
Изолирующая втулка
12
293150163
Заклепка 4, 8 мм Hklp-r6-5
13
509000645
Радиатора Туннель
14
518326107
Крепежный Рельс
18
518327457
Короб Сиденья Кронштейн
19
518326109
Support Tube Bracket Lh
20
518326110
Support Tube Bracket Rh
21
518326430
Clinch Nut Plate
23
518325560
Rondelle *adhesive Patch
24
518325645
Rear Profile
25
207582586
Винт
26
205061244
Screw-socket Hd.din.912 (2.000 Per Pack)
28
518325560
Rondelle *adhesive Patch
29
518326123
Gearbox Counter Plate Front
30
518326124
Gearbox Counter Plate Rear
31
390402200
Rivet-pop 3/16 *rivet-pop 3/16 (50.000 Per Pack)
32
518326357
Rubber Cover
33
518325641
Footboard Support Tube Lh
33
518325642
Footboard Support Tube Rh
34
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
35
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
36
520000492
Repose-pied *footrest (2.000 Per Pack)
37
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
38
518327445
Toe Hook Lh Swt
39
605636003
Clinch Nut M6 Hexsert
40
518327447
Toe Hook Rh Swt
41
605636003
Clinch Nut M6 Hexsert
42
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
43
233261414
Гайка Din.6926 (отпускается по 10 шт)
44
250000129
Torx-truss M/s Gm6047m Nylon Patch (12.000 Per Pack)
45
514054846
Attache Ressort*brachet-spring
46
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
47
518327645
Bretelle Ass *ass. Brace (includes 47 To 48 Includes 47 To 48)
48
512060295
Опора крепления
49
234281474
Washer-spring Conical Din.6796 (10.000 Per Pack)
50
518326213
Module S *cross Member (includes 50 To 51 Includes 50 To 51)
51
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
52
210262080
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
53
207662544
Screw-hex.flange Din.6921 (25.000 Per Pack)
54
207662544
Screw-hex.flange Din.6921 (25.000 Per Pack)
55
233261414
Гайка Din.6926 (отпускается по 10 шт)
56
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
57
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
58
207582586
Винт
59
207583586
Screw-hex.flange Din.6921 S.grip (4.000 Per Pack)
60
207584044
Screw-hex.flange Din.6921 S.grip (10.000 Per Pack)
61
518326140
Support Moteur *engine Support
62
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
63
293150119
Rivet *rivet (5.000 Per Pack)
64
518327004
Front Member Assy (includes 64 To 66 Includes 64 To 66)
65
502007077
Bumper Fastener Lh
65
502007078
Bumper Fastener Rh
66
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
67
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
68
233261414
Гайка Din.6926 (отпускается по 10 шт)
69
224061201
Washer-flat (10.000 Per Pack)
70
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
71
233261414
Гайка Din.6926 (отпускается по 10 шт)
72
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
73
233261414
Гайка Din.6926 (отпускается по 10 шт)
74
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
75
518326103
Upper Support Tube
76
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
78
518326848
Support Colonne*upper Column
79
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
80
233261414
Гайка Din.6926 (отпускается по 10 шт)
81
518326355
Support Colonne*upper Column
82
233261414
Гайка Din.6926 (отпускается по 10 шт)
83
250000522
Screw-hex.flange Din.6921 (5.000 Per Pack)
84
233261414
Гайка Din.6926 (отпускается по 10 шт)
85
515177073
Fusebox Support
86
518327035
Brake Hose Cover
87
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
88
293150174
Rivet Hemlock *hemlock Rivet (10.000 Per Pack)
