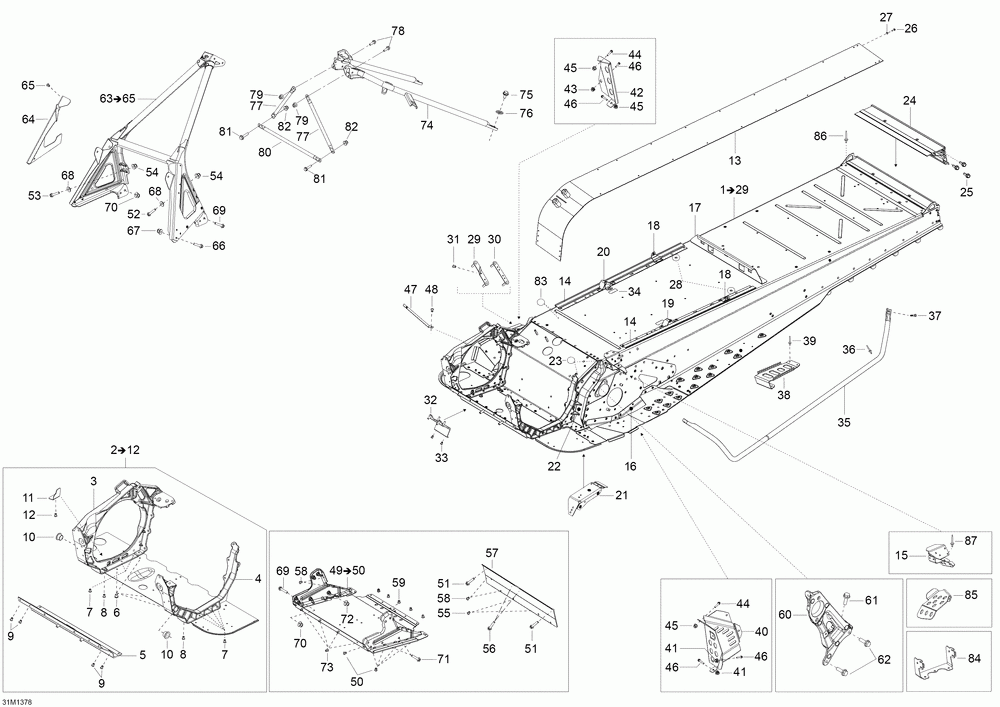

Рама

Ski-Doo (Bombardier) Skandic SWT 600 HO ETEC XU
Ski-Doo (Bombardier)
#oem кодцена
1
518326930
Chassis *frame (includes 1 To 29 )
2
518326660
Module E *module E (includes 2 To 12 )
3
518326795
Longeron Dr *rh Member
4
518326796
Longeron Ga *lh Member
5
518326198
Traverse Avant *front Member
6
605636002
Clinch Nut M8 Hexsert
7
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
8
293150120
Rivet Hemlock *rivet-hemlock 6.5mm (4.000 Per Pack)
9
293150119
Rivet *rivet (5.000 Per Pack)
10
505072690
Изолирующая втулка
11
518326642
Поддержка Глушитель
12
293150163
Заклепка 4, 8 мм Hklp-r6-5
13
509000626
Радиатора Туннель
14
518326107
Крепежный Рельс
18
518327457
Короб Сиденья Кронштейн
19
518326109
Support Tube Bracket Lh
20
518326110
Support Tube Bracket Rh
21
518326430
Clinch Nut Plate
23
518325560
Rondelle *adhesive Patch
24
518325645
Rear Profile
25
207582586
Винт
26
205061244
Screw-socket Hd.din.912 (2.000 Per Pack)
28
518325560
Rondelle *adhesive Patch
29
518326123
Gearbox Counter Plate Front
30
518326124
Gearbox Counter Plate Rear
31
390402200
Rivet-pop 3/16 *rivet-pop 3/16 (50.000 Per Pack)
32
518325943
Support Mag *mag Support
33
293150119
Rivet *rivet (5.000 Per Pack)
34
518326357
Rubber Cover
35
518325641
Footboard Support Tube Lh
35
518325642
Footboard Support Tube Rh
36
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
37
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
38
520000492
Repose-pied *footrest (2.000 Per Pack)
39
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
40
518327445
Toe Hook Lh Swt
41
605636003
Clinch Nut M6 Hexsert
42
518327447
Toe Hook Rh Swt
43
605636003
Clinch Nut M6 Hexsert
44
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
45
233261414
Гайка Din.6926 (отпускается по 10 шт)
46
250000129
Torx-truss M/s Gm6047m Nylon Patch (12.000 Per Pack)
47
514054846
Attache Ressort*brachet-spring
48
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
49
518326213
Module S *cross Member (includes 49 To 50 )
50
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
51
210262080
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
52
207662544
Screw-hex.flange Din.6921 (25.000 Per Pack)
53
207663034
Screw-hex.flange Din.6921 (5.000 Per Pack)
54
233261414
Гайка Din.6926 (отпускается по 10 шт)
55
293150119
Rivet *rivet (5.000 Per Pack)
56
207661644
Screw-hex.flange Din.6921 (25.000 Per Pack)
57
518325620
Опорная Плита
58
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
59
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
60
518326714
Support Poulie *pulley Support Machined
61
207582586
Винт
62
207583086
Винт
63
518327004
Front Member Assy (includes 63 To 65 )
64
502007077
Bumper Fastener Lh
64
502007078
Bumper Fastener Rh
65
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
66
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
67
233261414
Гайка Din.6926 (отпускается по 10 шт)
68
224061201
Washer-flat (10.000 Per Pack)
69
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
70
233261414
Гайка Din.6926 (отпускается по 10 шт)
71
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
72
233261414
Гайка Din.6926 (отпускается по 10 шт)
73
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
74
518326103
Upper Support Tube
75
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
77
518325114
Support Colonne*support
78
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
79
233261414
Гайка Din.6926 (отпускается по 10 шт)
80
518325115
Support Colonne*upper Column
81
250000522
Screw-hex.flange Din.6921 (5.000 Per Pack)
82
233261414
Гайка Din.6926 (отпускается по 10 шт)
83
518325560
Rondelle *adhesive Patch
84
515177073
Fusebox Support
85
518327035
Brake Hose Cover
86
293150174
Rivet Hemlock *hemlock Rivet (10.000 Per Pack)
87
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
