Электрика

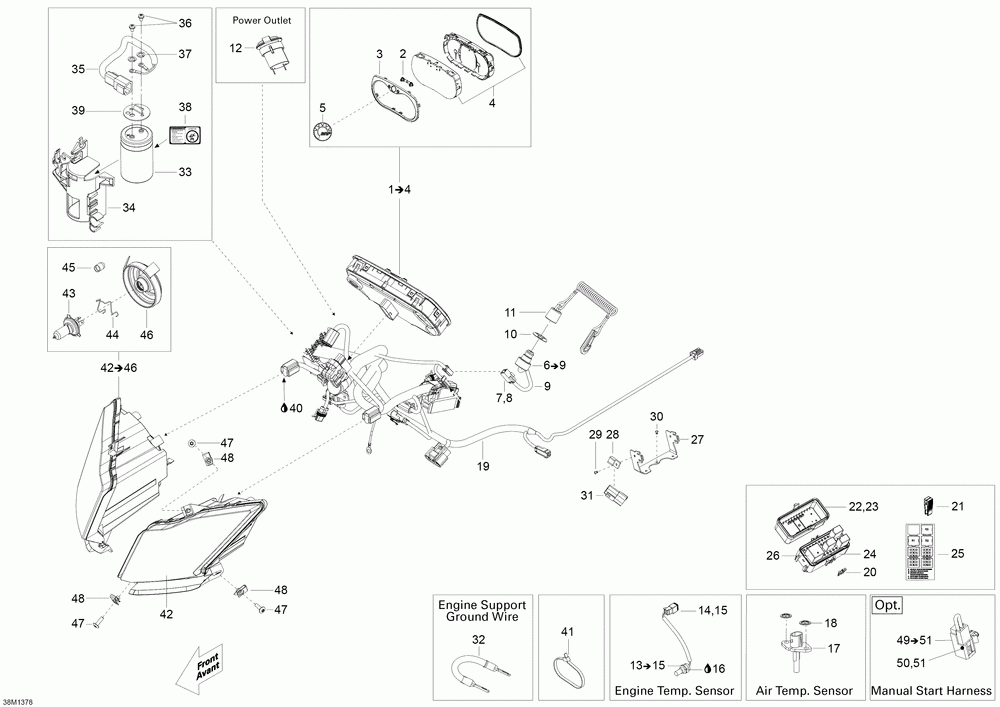

Ski-Doo (Bombardier) Skandic SWT 600 HO ETEC XU
Ski-Doo (Bombardier)
#oem кодцена
1
515177492
Ind Vitesse *speedometer (includes 1 To 4 )
2
415129355
Кнопки спидометра
3
415129348
Защитное кольцо
4
415129349
Стекло
5
219902677
Наклейка
6
515177249
Interrupt.dess *switch-dess (includes 6 To 9 )
7
515175232
Cosse Male *terminal-male (10.000 Per Pack)
8
515175494
Logement Male *housing-male (5.000 Per Pack)
9
409902000
Gaine Low Temp.vinyl
10
278002963
Гайка
11
515177057
Колпак
12
710001248
Дополнительная розетка DC
13
515177813
Capteur Temp. *sensor-temp. (includes 13 To 15 )
14
515175670
Корпус клеммы -Мама
15
278000632
Cosse Femelle *terminal-femal (10.000 Per Pack)
17
515176366
Capteur Temp. *sensor-air
18
389804300
Ecrou Pression *push-nut (10.000 Per Pack)
19
515177077
Main Harness
20
710000742
Mini-fusible *little Fuse
20
710000743
Mini-fusible *little Fuse
20
710000744
Mini-fusible *little Fuse
20
710000745
Mini-fusible *little Fuse
20
710000746
Mini-fusible *little Fuse
20
710000747
Mini-fusible *little Fuse
21
710000781
Pince Fusible *fuse Puller
22
710001026
Couvercle Fuse *fuse Box Cover
23
278002172
Coussinet *foam
24
415129856
Boitier Ass. *fuse Box Kit
25
516005892
Decal, Fusebox Xu Etec
26
515176775
Реле
26
515176774
Реле
27
515177073
Fusebox Support
28
270000141
Clip *clip (5.000 Per Pack)
29
293150037
Rivet Avdel *rivet-avdel 3/16 (10.000 Per Pack)
30
390402200
Rivet-pop 3/16 *rivet-pop 3/16 (50.000 Per Pack)
31
515176234
Bloc 6 Circ.fem*housing-tab
32
515176861
Fil De Masse *wire-ground
33
515176349
Condensateur *capacitor
34
515176607
Суппорт
35
515176605
Жгут
36
250000462
Screw-socket Bn.hd.s.grip 10-32 X 5/16 (10.000 Per Pack)
37
250200026
Washer-lock Helical #10
38
516005515
Decal Condensat*capacit Decal
39
515177193
Крышка
41
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
41
293750008
Tie Rap 368mm *tie-rap 368mm (10.000 Per Pack)
41
293750001
Tie Rap 94mm *tie-rap 94mm (50.000 Per Pack)
42
517304194
Phare Droit *rh.headlamp (includes 42 To 46 )
42
517304195
Phare Gauche *lh.headlamp (includes 42 To 46 )
43
515176274
Лампа H4
45
515176498
Крышка
46
515176499
Крышка
47
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
48
250100113
Extruded Panel Nut M6 X 1.0 (5.000 Per Pack)
49
515176661
Cablage *harness (includes 49 To 51 )
50
515175232
Cosse Male *terminal-male (10.000 Per Pack)
51
710000667
Logement 2 Pos *housing 2 Pos (5.000 Per Pack)
