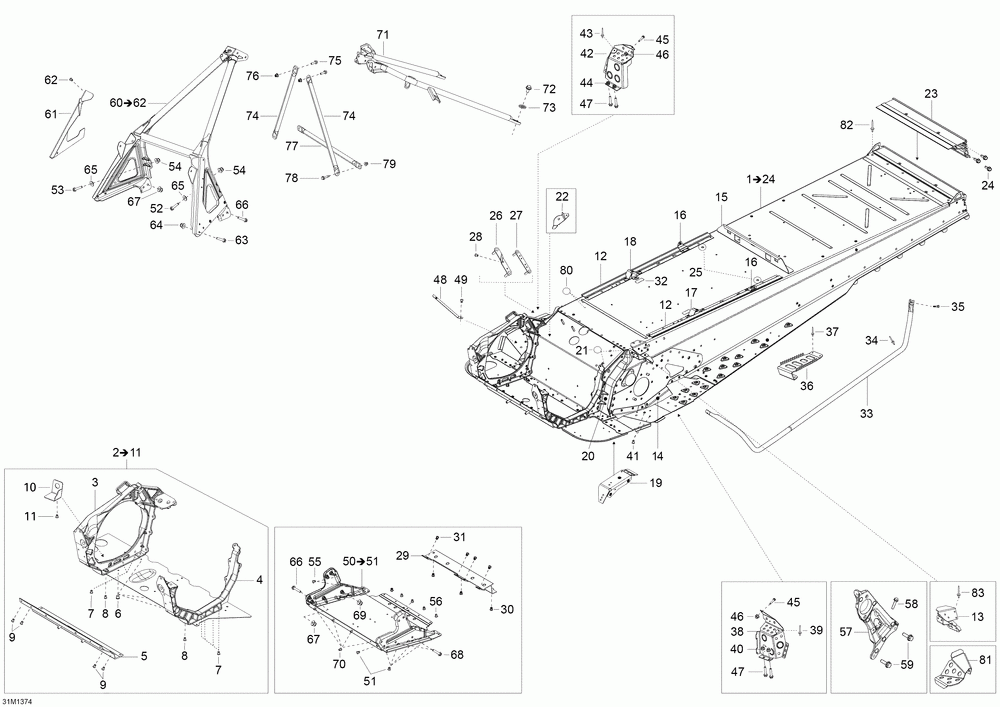

Рама

Ski-Doo (Bombardier) Skandic WT 550F XU
Ski-Doo (Bombardier)
#oem кодцена
1
518326965
Chassis *frame Xu 552 Fc Sc-5 (includes 1 To 24 )
2
518326515
Module E *module E (includes 2 To 11 )
3
518326795
Longeron Dr *rh Member
4
518325558
Longeron Ga *lh Member
5
518325818
Traverse Avant *front Member
6
605636002
Clinch Nut M8 Hexsert
7
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
8
293150120
Rivet Hemlock *rivet-hemlock 6.5mm (4.000 Per Pack)
9
293150119
Rivet *rivet (5.000 Per Pack)
11
293150163
Заклепка 4, 8 мм Hklp-r6-5
12
518326107
Крепежный Рельс
13
605355235
Крепежный Кронштейн
14
518326658
Drive Axle Cover Lh
14
518326659
Drive Axle Cover Rh
15
518325986
Поддержка Батареи
16
518325987
Короб Сиденья Кронштейн
17
518326109
Support Tube Bracket Lh
18
518326110
Support Tube Bracket Rh
19
518326430
Clinch Nut Plate
20
518325524
Coin Tunnel Ga *frame Corner
20
518325526
Coin Tunnel Dr *frame Corner
21
518325560
Rondelle *adhesive Patch
22
518326520
Support Droit *rh.support
23
518327194
Rear Profile
24
207582586
Винт
25
518325560
Rondelle *adhesive Patch
26
518326123
Gearbox Counter Plate Front
27
518326124
Gearbox Counter Plate Rear
28
390402200
Rivet-pop 3/16 *rivet-pop 3/16 (50.000 Per Pack)
29
518326719
Engine Support Machined
30
293150179
Magna-lok 6 *magna-lok 6
31
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
32
518326357
Rubber Cover
33
518326963
Footboard Support Tube Lh
33
518326964
Footboard Support Tube Rh
34
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
35
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
36
520000492
Repose-pied *footrest (2.000 Per Pack)
37
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
38
518326671
Toe Hook Lh
39
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
40
605636003
Clinch Nut M6 Hexsert
41
414644300
Крепеж-дротик(отпускается по 10 шт)
42
518326672
Toe Hook Rh
43
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
44
605636003
Clinch Nut M6 Hexsert
45
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
46
233261414
Гайка Din.6926 (отпускается по 10 шт)
47
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
48
514054846
Attache Ressort*brachet-spring
49
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
50
518326213
Module S *cross Member (includes 50 To 51 )
51
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
52
207662544
Screw-hex.flange Din.6921 (25.000 Per Pack)
53
207662544
Screw-hex.flange Din.6921 (25.000 Per Pack)
54
233261414
Гайка Din.6926 (отпускается по 10 шт)
55
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
56
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
57
518326714
Support Poulie *pulley Support Machined
58
207582586
Винт
59
207583086
Винт
60
518327004
Front Member Assy (includes 60 To 62 )
61
502007077
Bumper Fastener Lh
61
502007078
Bumper Fastener Rh
62
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
63
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
64
233261414
Гайка Din.6926 (отпускается по 10 шт)
65
224061201
Washer-flat (10.000 Per Pack)
66
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
67
233261414
Гайка Din.6926 (отпускается по 10 шт)
68
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
69
233261414
Гайка Din.6926 (отпускается по 10 шт)
70
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
71
518326103
Upper Support Tube
72
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
74
518325114
Support Colonne*support
75
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
76
233261414
Гайка Din.6926 (отпускается по 10 шт)
77
518325115
Support Colonne*upper Column
78
250000522
Screw-hex.flange Din.6921 (5.000 Per Pack)
79
233261414
Гайка Din.6926 (отпускается по 10 шт)
80
518325560
Rondelle *adhesive Patch
81
518325626
Brake Hose Cover
82
293150174
Rivet Hemlock *hemlock Rivet (10.000 Per Pack)
83
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
