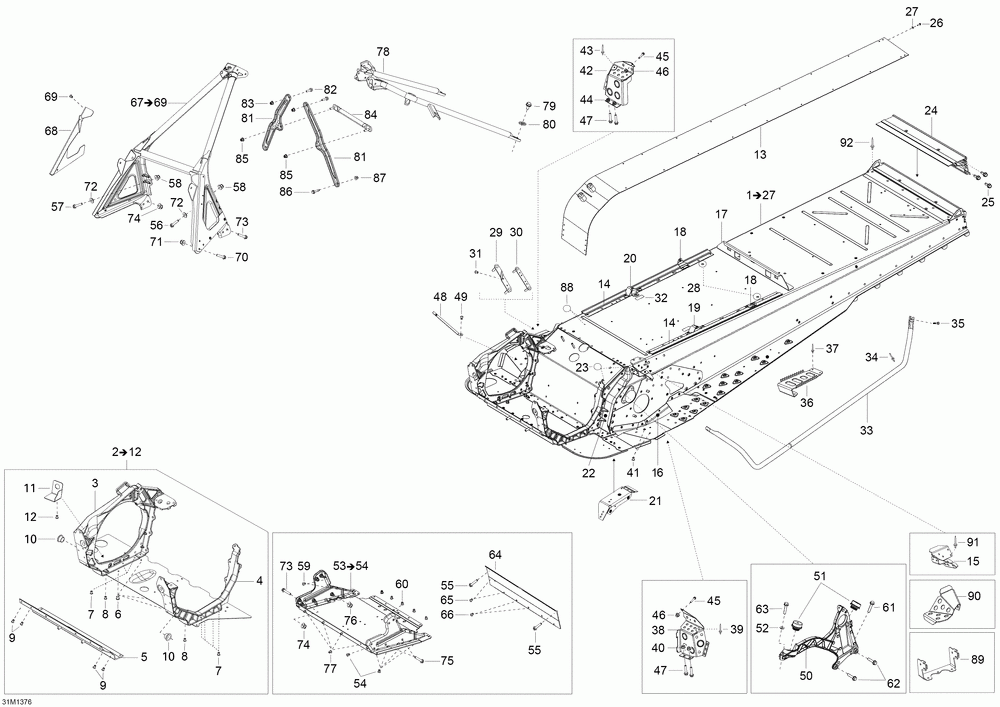

Рама

Ski-Doo (Bombardier) Skandic WT 600 ACE (4-strokes) XU
Ski-Doo (Bombardier)
#oem кодцена
1
518326988
Chassis *frame Xu Ace Sc-5 (includes 1 To 27 )
2
518326518
Module E *module E (includes 2 To 12 )
3
518326328
Longeron Dr *rh Member
4
518326330
Longeron Ga *lh Member
5
518326198
Traverse Avant *front Member
6
605636002
Clinch Nut M8 Hexsert
7
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
8
293150120
Rivet Hemlock *rivet-hemlock 6.5mm (4.000 Per Pack)
9
293150119
Rivet *rivet (5.000 Per Pack)
10
505072690
Изолирующая втулка
12
293150163
Заклепка 4, 8 мм Hklp-r6-5
13
509000645
Радиатора Туннель
14
518326107
Крепежный Рельс
15
605355235
Крепежный Кронштейн
16
518326658
Drive Axle Cover Lh
16
518326659
Drive Axle Cover Rh
17
518325986
Поддержка Батареи
18
518325987
Короб Сиденья Кронштейн
19
518326109
Support Tube Bracket Lh
20
518326110
Support Tube Bracket Rh
21
518326430
Clinch Nut Plate
22
518325524
Coin Tunnel Ga *frame Corner
22
518325526
Coin Tunnel Dr *frame Corner
23
518325560
Rondelle *adhesive Patch
24
518327194
Rear Profile
25
207582586
Винт
26
205061244
Screw-socket Hd.din.912 (2.000 Per Pack)
28
518325560
Rondelle *adhesive Patch
29
518326123
Gearbox Counter Plate Front
30
518326124
Gearbox Counter Plate Rear
31
390402200
Rivet-pop 3/16 *rivet-pop 3/16 (50.000 Per Pack)
32
518326357
Rubber Cover
33
518326963
Footboard Support Tube Lh
33
518326964
Footboard Support Tube Rh
34
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
35
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
36
520000492
Repose-pied *footrest (2.000 Per Pack)
37
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
38
518326671
Toe Hook Lh
39
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
40
605636003
Clinch Nut M6 Hexsert
41
414644300
Крепеж-дротик(отпускается по 10 шт)
42
518326672
Toe Hook Rh
43
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
44
605636003
Clinch Nut M6 Hexsert
45
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
46
233261414
Гайка Din.6926 (отпускается по 10 шт)
47
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
48
514054616
Attache Ressort*brachet-spring
49
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
50
518327534
Support Poulie *pulley Support Machined
51
512060295
Опора крепления
52
234281474
Washer-spring Conical Din.6796 (10.000 Per Pack)
53
518326213
Module S *cross Member (includes 53 To 54 )
54
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
55
210262080
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
56
207662544
Screw-hex.flange Din.6921 (25.000 Per Pack)
57
207662544
Screw-hex.flange Din.6921 (25.000 Per Pack)
58
233261414
Гайка Din.6926 (отпускается по 10 шт)
59
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
60
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
61
207582586
Винт
62
207583586
Screw-hex.flange Din.6921 S.grip (4.000 Per Pack)
63
207584044
Screw-hex.flange Din.6921 S.grip (10.000 Per Pack)
64
518326140
Support Moteur *engine Support
65
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
66
293150119
Rivet *rivet (5.000 Per Pack)
67
518327004
Front Member Assy (includes 67 To 69 )
68
502007077
Bumper Fastener Lh
68
502007078
Bumper Fastener Rh
69
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
70
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
71
233261414
Гайка Din.6926 (отпускается по 10 шт)
72
224061201
Washer-flat (10.000 Per Pack)
73
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
74
233261414
Гайка Din.6926 (отпускается по 10 шт)
75
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
76
233261414
Гайка Din.6926 (отпускается по 10 шт)
77
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
78
518326103
Upper Support Tube
79
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
81
518326848
Support Colonne*upper Column
82
207662086
Screw-hex.flange Din.6921 (10.000 Per Pack)
83
233261414
Гайка Din.6926 (отпускается по 10 шт)
84
518326355
Support Colonne*upper Column
85
233261414
Гайка Din.6926 (отпускается по 10 шт)
86
250000522
Screw-hex.flange Din.6921 (5.000 Per Pack)
87
233261414
Гайка Din.6926 (отпускается по 10 шт)
88
518325560
Rondelle *adhesive Patch
89
515177073
Fusebox Support
90
518325626
Brake Hose Cover
91
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
92
293150174
Rivet Hemlock *hemlock Rivet (10.000 Per Pack)
