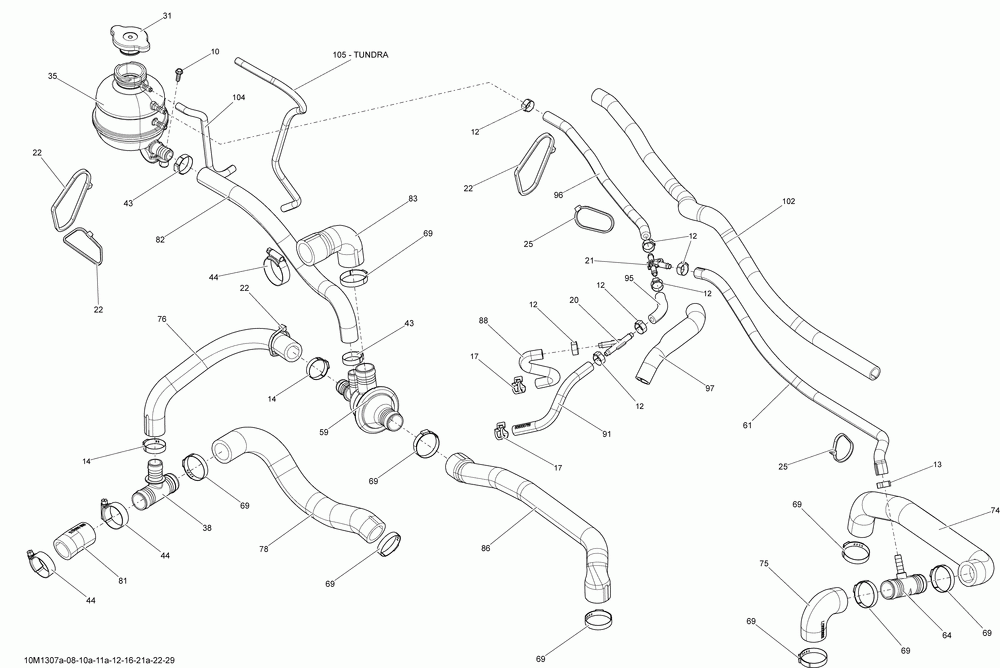

Система охлаждения

Ski-Doo (Bombardier) SUMMIT SP 600HOE XP
Ski-Doo (Bombardier)
#oem кодцена
10
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
12
293650046
Collet A Sertir*crimp Clamp (600ho Etec ) (5.000 Per Pack)
13
293650047
Collet A Sertir*crimp Clamp (5.000 Per Pack)
14
293650099
Collet A Sertir*crimp Clamp (except 600rs )
17
293650210
Collet Ressort *spring Clamp (600ho Etec ) (2.000 Per Pack)
20
293710059
Raccord En Y *y-connector (600ho Etec )
21
293710140
Raccord En Y *y-connector (600ho Etec )
22
293750008
Tie Rap 368mm *tie-rap 368mm (10.000 Per Pack)
25
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
31
509000180
Крышка расширительного бачка
35
509000368
Res.antigel *tank-coolant (except 600rs )
38
509000372
Тройник соеденительный
43
509000442
Collet A Sertir*crimp Clamp (except 600rs )
44
509000443
Collet A Vis *gear Clamp
59
509000499
Logement Therm *therm.housing (except 600rs )
61
509000502
Boyau Purge *breather Hose (600ho Etec )
64
509000510
Тройник соеденительный
69
509000529
Collet A Sertir*crimp Clamp (4.000 Per Pack)
74
509000670
Патрубок радиатора
75
509000671
Boyau Rad *hose-radiator
76
509000672
Boyau Deviation*bypass Hose (except 600rs )
78
509000673
Патрубок радиатора
81
509000675
Boyau Radiateur*radiator Hose (600ho Etec )
82
509000676
Boyau Rempliss *filling Hose (600ho Etec )
83
509000678
Boyau Sortie Mo*hose-outlet En (etec )
86
509000679
Boyau Sortie Th*hose-outlet Th (except 600rs )
88
509000768
Boyau *hose (600ho Etec )
91
509000769
Boyau *hose (600ho Etec )
97
513033231
Gaine *protector Tube (600ho Etec )
102
415080000
Gaine *protector Tube (600ho Etec )
104
415110000
Boyau Polyure *hose-polyurethane (600ho Etec Except Tundra ) (30.000 Per Pack)
