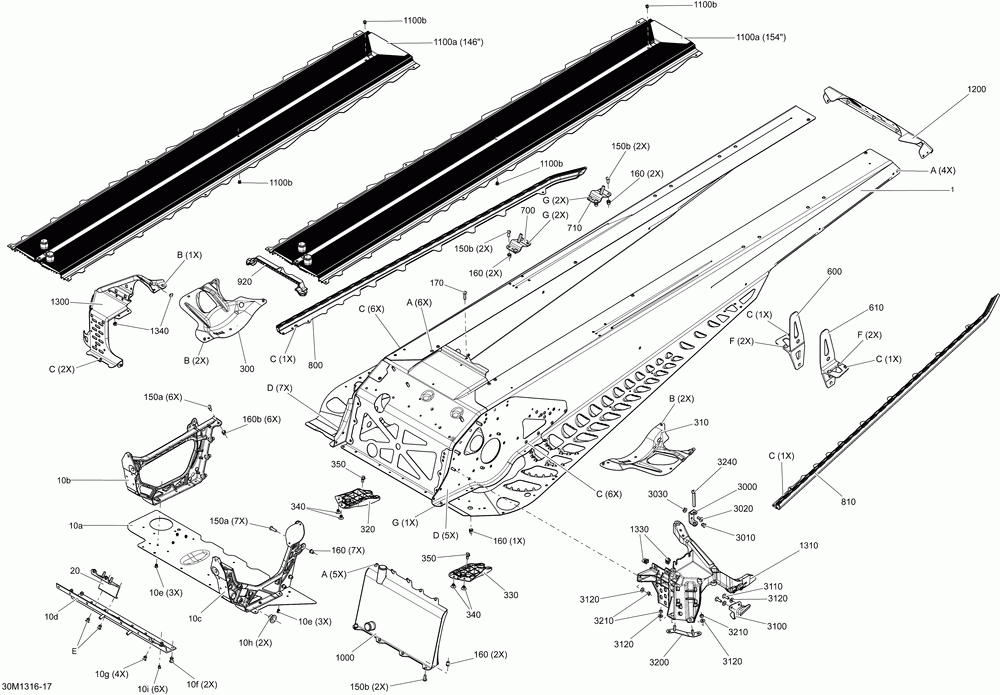

Рама 154"

Ski-Doo (Bombardier) SUMMIT SP 600HOE XP
Ski-Doo (Bombardier)
#oem кодцена
1
415129745
Chassis *frame (includes 1 To G )
A
390909200
Rivet Avex *rivet Avex (50.000 Per Pack)
B
390909100
Rivet Avex *rivet Avex (50.000 Per Pack)
C
293150144
Rivet Stavex *stavex Rivet (20.000 Per Pack)
D
293150146
Rivet Henrob *henrob Rivet (10.000 Per Pack)
E
293150119
Rivet *rivet (5.000 Per Pack)
F
293150147
Rivet *rivet (10.000 Per Pack)
G
293150174
Rivet Hemlock *hemlock Rivet (10.000 Per Pack)
20
518325943
Support Mag *mag Support
10a
518327567
Module E *module E (includes 10a To 10i )
10b
518326795
Longeron Dr *rh Member
10c
518326796
Longeron Ga *lh Member
10d
518326198
Traverse Avant *front Member
10e
293150144
Rivet Stavex *stavex Rivet (20.000 Per Pack)
10f
293150120
Rivet Hemlock *rivet-hemlock 6.5mm (4.000 Per Pack)
10g
293150119
Rivet *rivet (5.000 Per Pack)
10h
505073317
Подушка
160
233261414
Гайка Din.6926 (отпускается по 10 шт)
170
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
300
518324874
Renfort Dr *reinforcement
310
518324875
Renfort Ga *reinforcement
320
518325782
Deflecteur Dr. *rh Deflector
330
518325783
Deflecteur Ga. *lh Deflector
340
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
350
207561244
Винт
600
518324976
Attache Droite *rh.bracket
610
518324977
Кронштейн
700
518325973
Embase Arrire *rear Base
710
518325974
Embase Arrire *rear Base
800
518325159
Rouleau Droit *rh.roller
810
518325160
Rouleau Gauche *lh.roller
920
518326656
Уплотнение
1000
518326485
Radiateur Avant*front Radiator
1200
518327105
Capuchon *rear Cap
1300
518326216
Etrier Droit *rh.stirup
1310
518326820
Etrier Ga. *lh.stirup
1330
250000079
Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)
1340
293730042
Dard 5-6 *dart 5-6
150a
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
150b
207661644
Screw-hex.flange Din.6921 (25.000 Per Pack)
3000
518326961
Attache *attach
3010
293150147
Rivet *rivet (10.000 Per Pack)
3020
250000534
Torx-truss M/s Bzn 3m-2353y M6x16
3030
233061414
Nut-flange Hexagonal Din.6927 (10.000 Per Pack)
3100
518326960
Суппорт
3110
250000536
Torx-truss M/s Bzn Nylon Lock M6x18
3120
250200039
Rondelle Plate *flat Washer (10.000 Per Pack)
3200
518326986
Attache *attach
3210
232561434
Гайка с тефлоном
3240
250000535
Torx-truss M/s Bzn 3m-2353y M8x55
1100a
518326692
Radiateur Arr.s*rear Rad. Weld (includes 1100a To 1100b )
1100b
293150144
Rivet Stavex *stavex Rivet (20.000 Per Pack)
