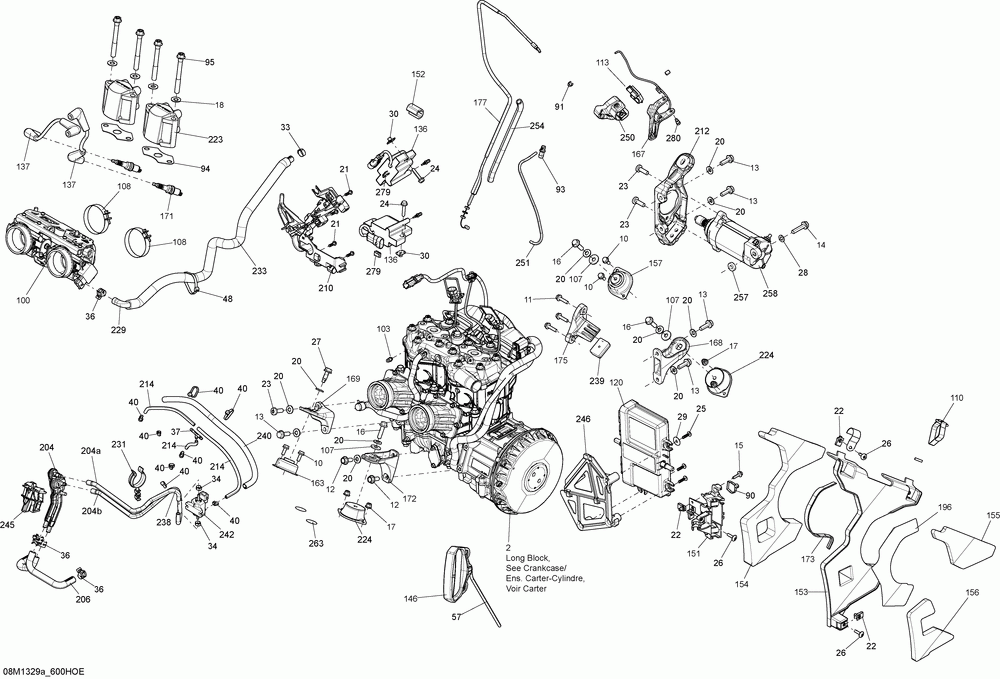

01- engine and engine support 600

Ski-Doo (Bombardier) TUNDRA XTREME 600HOE XP
Ski-Doo (Bombardier)
#oem кодцена
10
207561644
Screw-hex.flange Din.6921 S.grip (25.000 Per Pack)
11
207562544
Screw-hex.flange Din.6921 S.grip (10.000 Per Pack)
12
207582044
Screw-hex.flange Din.6921 S.grip (10.000 Per Pack)
13
207582586
Винт
14
207583544
Screw-hex.flange Din.6921 S.grip (dele )
15
207652044
Винт
16
207683044
Screw-hex.flange Din.6921 (10.000 Per Pack)
17
233261414
Гайка Din.6926 (отпускается по 10 шт)
18
234001410
Шайба Din.125a (отпускается по 10 шт)
20
250200146
Шайба пружинная
21
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
22
250000079
Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)
23
250000248
Screw-pan Hd.torx Black Scotch Grip (dele )
24
250000253
Screw-hex.flange Din.6921 Nylon Patch (5.000 Per Pack)
25
250000297
Винт
26
250000528
Torx-truss M/s Nylon Patch M5x20 (5.000 Per Pack)
27
250000570
Винт м8
28
250200008
Washer-flat Din.125a Teflon-coat (dele ) (5.000 Per Pack)
29
250200040
Rondelle Plate *flat Washer (3.000 Per Pack)
30
293100003
Ecrou A Souder *weld Nut A2 (6.000 Per Pack)
33
293650046
Collet A Sertir*crimp Clamp (5.000 Per Pack)
34
293650043
Bride Serrage *clamp-oetiker (5.000 Per Pack)
36
293650214
Зажим пружинный
37
293710068
Raccord En T *fitting-t (10.000 Per Pack)
40
293750001
Tie Rap 94mm *tie-rap 94mm (50.000 Per Pack)
48
293750008
Tie Rap 368mm *tie-rap 368mm (10.000 Per Pack)
90
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
91
414274500
Circlip-black Chromate (10.000 Per Pack)
93
414814100
Raccord Male *connector-male (5.000 Per Pack)
94
420430930
Прокладка
95
420441187
Винт Torx
100
420889197
Carter Accelera*throttle Body (600hoe )
103
420924724
Raccord Boyau *hose Nipple
107
503183200
Washer-yellow (10.000 Per Pack)
108
293650158
Bride *clamp (600hoe )
110
508000599
Bande Velcro *velcro-strip (xtrem )
113
512060859
Logement Supe. *housing-upper (except Freeride, Except Xrs )
120
512060833
Module Calibre *calib. Module (600hoe )
136
512060810
Катушка зажигания
137
512060094
Провод высоковольтный зажигания
146
512060136
Poignee Demarr.*starter Grip (dman )
151
512060298
Support Solen. *solen. Support
152
512060313
Защита
153
512060634
Plaque Acous *noise Shield (xtrem )
154
512060343
Шумоизоляционная пена
155
512060344
Шумоизоляционная пена
156
512060665
Mousse Acous *noise Foam (xtrem )
157
512060387
Опора крепления
163
512060448
Опора крепления
167
512060616
Manette Ass. *handle-assy (tundra Xtrem )
168
512060469
Support Moteur *engine Support
169
512060478
Support Pto Ar *support Pto Re
171
415129375
Bougie *spark Plug (600hoe ) (4.000 Per Pack)
172
512060559
Support Mag Ar *support Mag Re
173
512060574
Теплозащита
175
512060576
Support Butee *support Stop
177
512060633
Cable Accelerat*throttle Cable (tundra Xtrem )
196
512060666
Pare Chaleur *heat Shield (xtrem )
204
512060692
Коллектор
206
512060695
Шланг сформированный
206
512060694
Патрубок
210
512060696
Суппорт
212
512060712
Support *support (600hoe )
214
270000374
Boyau 4.3mm *hose-4.3mm (15.000 Per Pack)
223
512060727
Injecteur *fuel Injector (600hoe )
224
512060729
Опора крепления
229
512060740
Boyau Forme *hose-formed (600hoe )
231
512060762
Support Ass *clip Ass Y
233
415080000
Защитная оплетка шланга
238
415080200
Boyau Polyure *polyurethane Hose (10.000 Per Pack)
239
512060627
Butee *stopper (except Sum, Except Free )
240
415079900
Защитная оплетка шланга
242
512060774
Soupape Soleno.*solenoid Valve
245
512060769
Support *support (600hoe )
246
512060858
Суппорт модуля
250
512060860
Logement Inf. *hous.-lower (except Freeride, Except Xrs )
251
415080100
Boyau Amorce *line-primer (30.000 Per Pack)
254
409901700
Gaine 09mm I.d.*tubing-09mm I.d. (10.000 Per Pack)
257
515176500
Rondelle *washer (600hoe Dele )
258
515177389
Demarreur *starter (dele )
263
518325560
Rondelle *adhesive Patch
279
710000992
Зажим
280
732601143
Screw-shoulder (10.000 Per Pack)
204a
512060814
Пружина
204b
512060807
Пружина
