Дейвуд

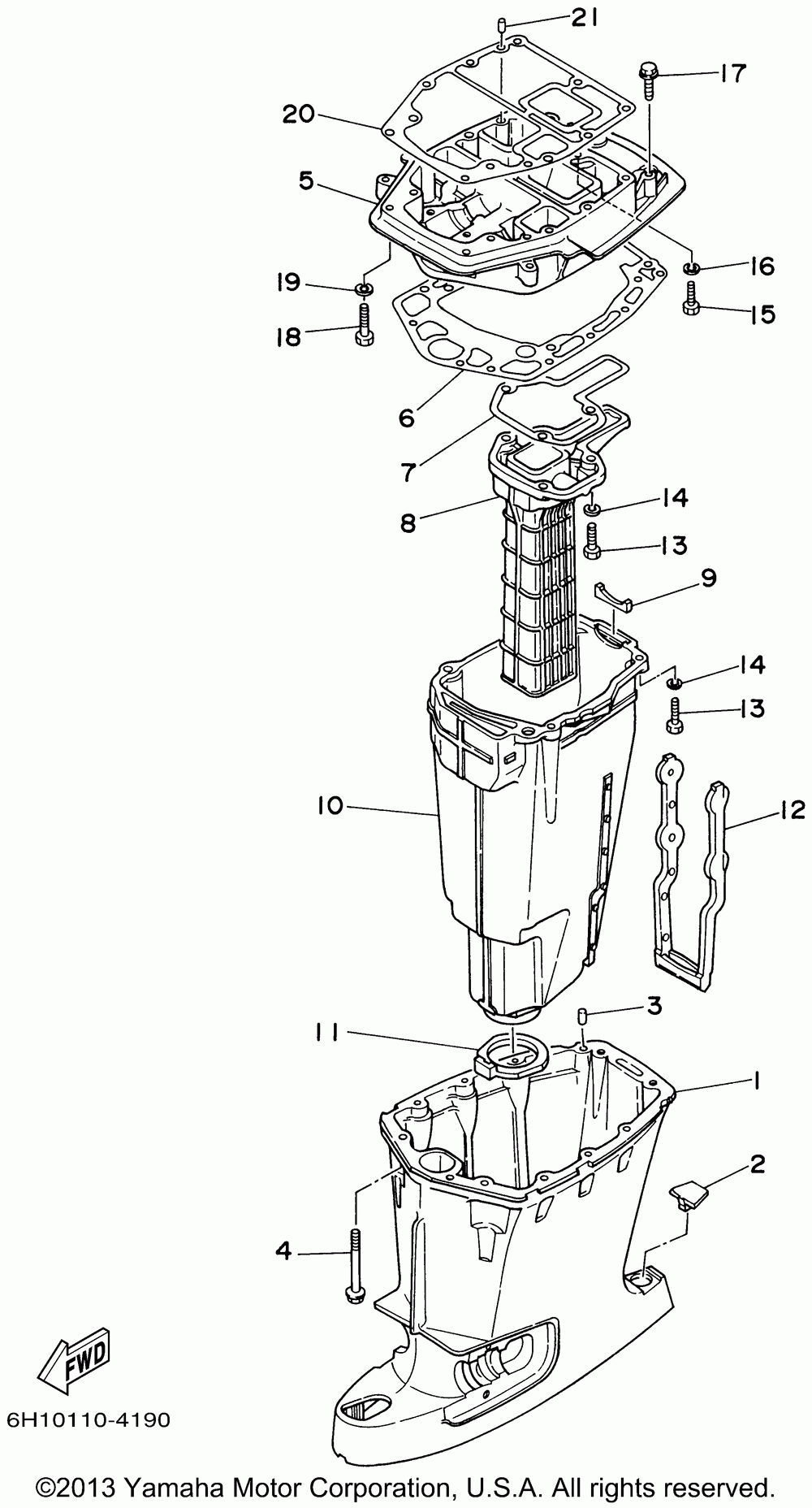

Yamaha 90TLRA
Yamaha
#oem кодцена
1
688-45111-04-8D
Casing, Upper (90tr)
1
688-45111-04-8D
Casing, Upper (90tr)
2
663-45155-10-00
Cap (90tr)
2
663-45155-10-00
Cap (90tr)
3
93606-12019-00
Pin, Dowel (90tr) (5 Per Pack)
3
93606-12019-00
Pin, Dowel (90tr) (5 Per Pack)
4
90119-08M80-00
Bolt, With Washer (90tr)
4
90119-08M80-00
Bolt, With Washer (90tr)
5
688-41137-03-CA
Guide, Exhaust (90tr)
5
688-41137-03-CA
Guide, Exhaust (90tr)
6
688-45114-A1-00
Gskt, Upper Casing (90tr)
6
688-45114-A1-00
Gskt, Upper Casing (90tr)
7
688-41134-A0-00
Gskt, Exh. Manifold (90tr)
8
688-41131-00-CA
Manifold, Ext. 1 (90tr)
8
688-41131-00-CA
Manifold, Ext. 1 (90tr)
9
688-41133-00-00
Gasket, Exh Mani 1 (90tr)
9
688-41133-00-00
Gasket, Exh Mani 1 (90tr)
10
688-14711-01-CA
Muffler 1 (90tr)
10
688-14711-01-CA
Muffler 1 (90tr)
11
688-45123-00-00
Gasket, Muffler (90tr)
11
688-45123-00-00
Gasket, Muffler (90tr)
12
663-14737-10-00
Damper, Muffler (90tr)
12
663-14737-10-00
Damper, Muffler (90tr)
13
97080-08030-00
Bolt (90tr)
13
97080-08030-00
Bolt (90tr)
14
92990-08100-00
Washer, Spring (90tr)
14
92990-08100-00
Washer, Spring (90tr)
15
97075-08025-00
Bolt (90tr)
15
97075-08025-00
Bolt (90tr)
16
92990-08100-00
Washer, Spring (90tr)
16
92990-08100-00
Washer, Spring (90tr)
17
97080-08030-00
Bolt (90tr)
17
97080-08030-00
Bolt (90tr)
18
97095-08035-00
Bolt (90tr)
18
97095-08035-00
Bolt (90tr)
19
92990-08100-00
Washer, Spring (90tr)
19
92990-08100-00
Washer, Spring (90tr)
20
688-45113-A0-00
Gskt, Upper Casing (90tr)
20
688-45113-A0-00
Gskt, Upper Casing (90tr)
21
93606-12019-00
Pin, Dowel (90tr) (5 Per Pack)
21
93606-12019-00
Pin, Dowel (90tr) (5 Per Pack)
