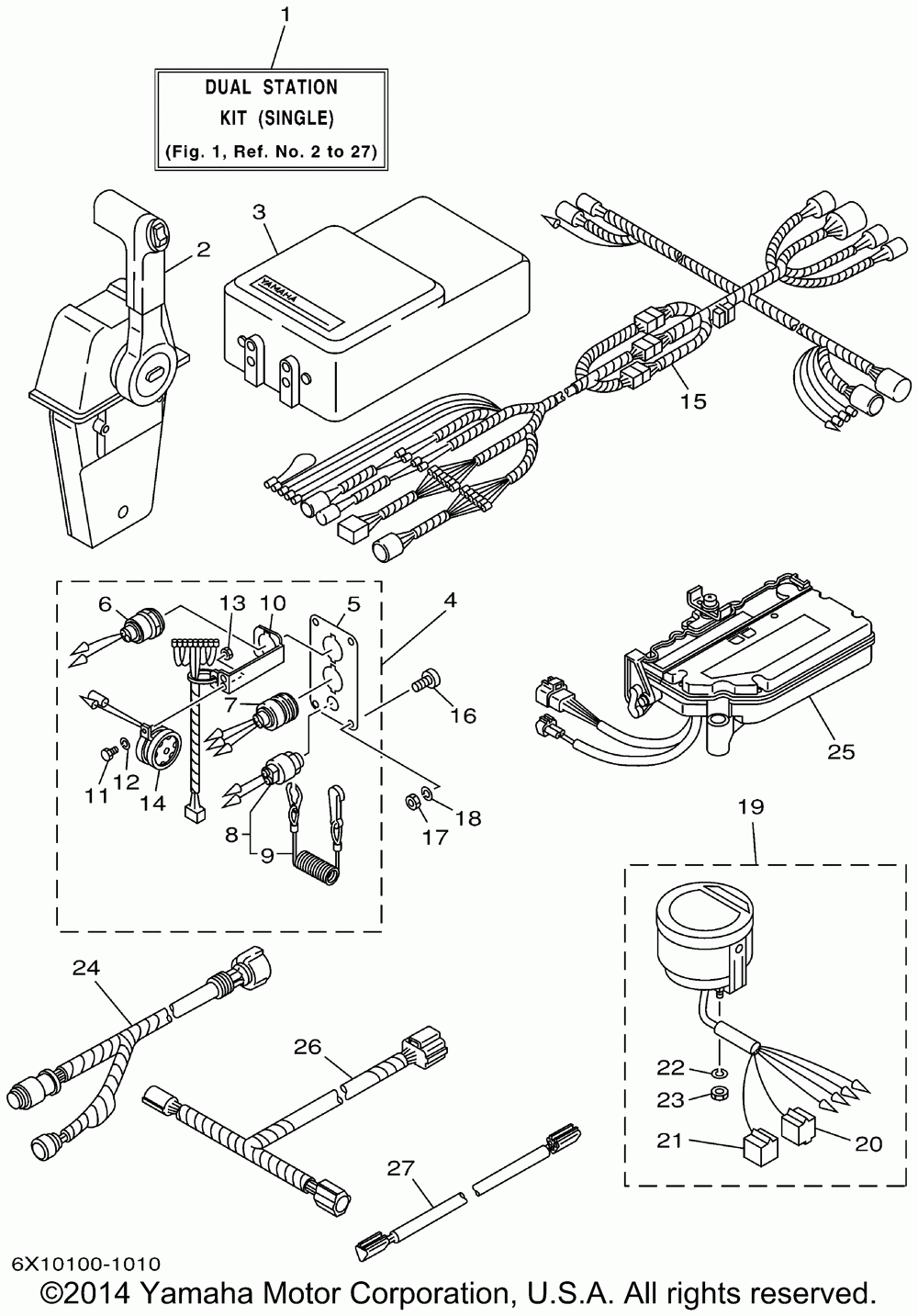

Dual station kit (single)

Yamaha DUAL_STATI
Yamaha
#oem кодцена
1
6X1-W0006-07-00
Dual Station Kit(sin (single) (6x10)
2
704-48205-B1-00
Control, Bin Std Sng See Fig.5 With Pt/t Sw.(6x10)
3
6X1-48208-02-00
Junction Box (dual Station) See Fig.4(6x10)
4
6X1-82570-01-00
Panel Switch Assy (6x10)
5
6X1-82571-00-00
Panel, Switch (6x10)
6
6X1-81870-00-00
Starting Switch As (6x10)
7
6X1-82550-00-00
Eng Stop Swtch Asy (6x10)
8
688-82575-01-00
Emergency Safetysw (6x10)
9
682-82556-00-00
Emerg.stop Lanyard (6x10)
10
6X1-82581-00-00
Stay, Cord Clamp (6x10)
11
97095-05012-00
Bolt (6a4) (6x10)
12
92990-05100-00
Washer, Spring (6x10) (5 Per Pack)
13
95380-05700-00
Nut (6x10)
14
688-83383-12-00
Buzzer (6x10)
15
6X1-8258A-20-00
Extension, Wire Harn (6x10)
16
90149-05M05-00
Screw, Spec'l Shape (6x10)
17
95380-05600-00
Nut (6x10) (5 Per Pack)
18
92990-05100-00
Washer, Spring (6x10) (5 Per Pack)
19
6Y5-8350T-83-00
Tachometer Assy (rnd (6x10)
20
9E450-04433-00
Housing, Cplr M-4-w 5 M-4-w(6x10)
21
9E450-04533-00
Housing, Cplr F-4-w 5 F-4-w(6x10)
22
92990-04100-00
Washer, Spring (6x10) (5 Per Pack)
23
95303-04600-00
Nut (6x10)
24
6K1-8258A-40-00
10p/main/hrns/26ft (8m) (6x10)
25
6X1-48208-20-00
Actuater(dual Statio (dual Station) See Fig.3(6x10)
26
6X1-83553-00-00
Wire Harness (6x10)
27
6X1-82531-00-00
Wire Lead (6x10)
