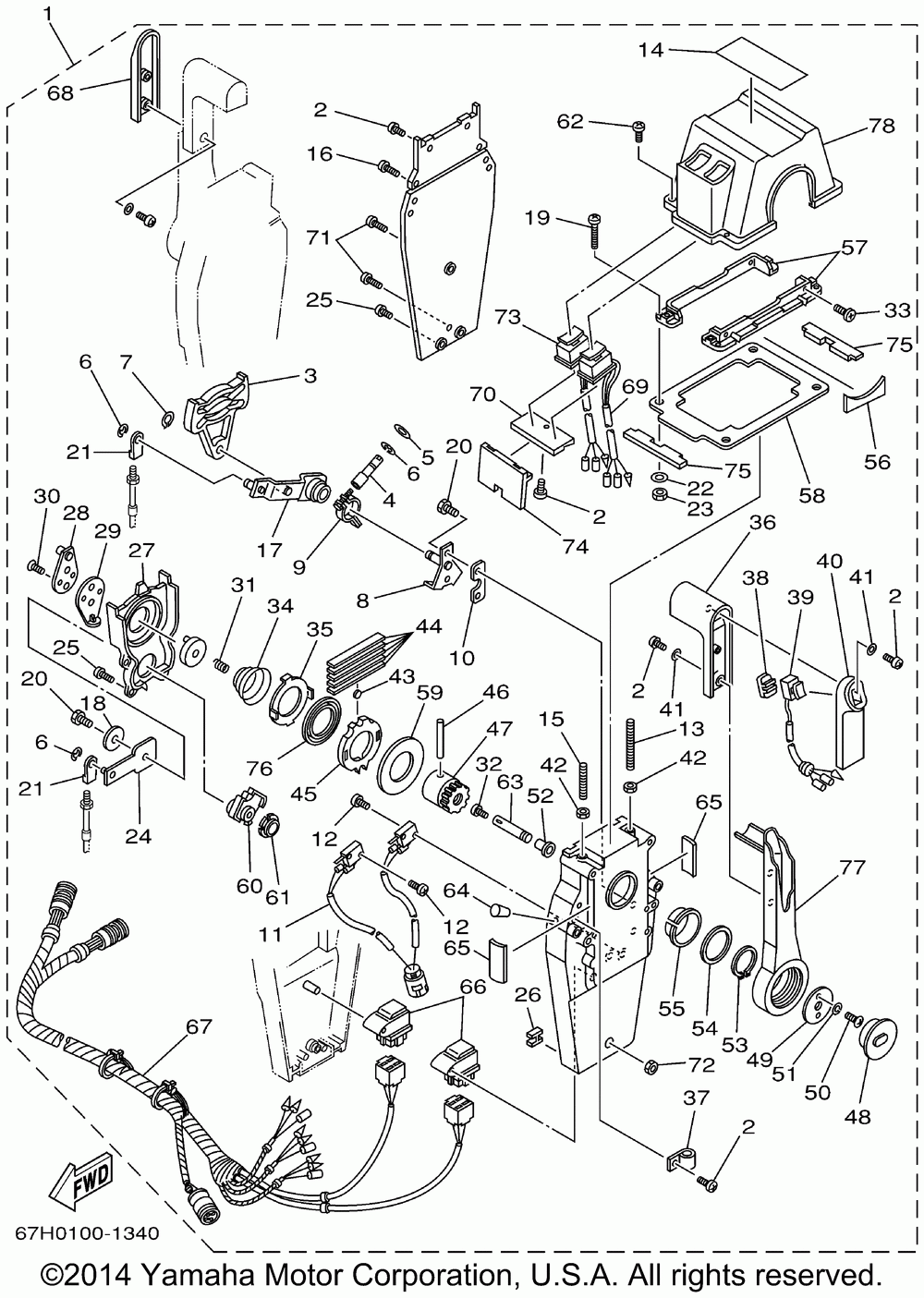

Remote control assy 4

Yamaha DUAL_STATI
Yamaha
#oem кодцена
1
704-48207-P1-00
Control, Bin Prm Dua With Pt/t Sw.(6x10)
2
97885-05016-00
Screw, Pan Head (6x10)
2
97885-05016-00
Screw, Pan Head (6x10)
3
EL8-48251-00-00
Plate, Cam (6x10)
3
EL8-48251-00-00
Plate, Cam (6x10)
4
704-48265-00-00
Shaft, Friction (6x10)
4
704-48265-00-00
Shaft, Friction (6x10)
5
701-48246-00-00
Spacer 1 (6x10)
5
701-48246-00-00
Spacer 1 (6x10)
6
93430-06024-00
Circlip, E-type (6x10)
6
93430-06024-00
Circlip, E-type (6x10)
7
EL8-48259-00-00
Circlip (6x10)
7
EL8-48259-00-00
Circlip (6x10)
9
704-48264-00-00
Throttle, Friction (6x10)
9
704-48264-00-00
Throttle, Friction (6x10)
11
6XE-82540-10-00
Neutral Switch Asy (6x10)
11
6XE-82540-10-00
Neutral Switch Asy (6x10)
12
98580-03014-00
Screw (6x10)
12
98580-03014-00
Screw (6x10)
13
EL8-48281-00-00
Screw 1 (6x10)
13
EL8-48281-00-00
Screw 1 (6x10)
14
704-48215-10-00
Graphic (6x10)
14
704-48215-10-00
Graphic (6x10)
15
704-48281-00-00
Screw 1 (6x10)
15
704-48281-00-00
Screw 1 (6x10)
16
98580-05525-00
Screw, Panhead (6x10)
16
98580-05525-00
Screw, Panhead (6x10)
17
704-48261-00-00
Arm, Throttle (6x10)
17
704-48261-00-00
Arm, Throttle (6x10)
18
EL8-48191-00-00
Washer 1 (6x10)
18
EL8-48191-00-00
Washer 1 (6x10)
19
98580-05540-00
Screw, Pan Head (6x10)
19
98580-05540-00
Screw, Pan Head (6x10)
20
97080-06018-00
Bolt (6x10)
20
97080-06018-00
Bolt (6x10)
21
703-48345-01-00
Cable End, Remote (6x10)
21
703-48345-01-00
Cable End, Remote (6x10)
22
704-48287-00-00
Washer 1 (6x10)
23
95380-05600-00
Nut (6x10) (5 Per Pack)
23
95380-05600-00
Nut (6x10) (5 Per Pack)
24
EL8-48271-00-00
Arm, Shift (6x10)
24
EL8-48271-00-00
Arm, Shift (6x10)
25
EL8-48127-00-00
Screw 1 (6x10)
25
EL8-48127-00-00
Screw 1 (6x10)
26
703-48358-00-00
Anchor, Cable 2 (6x10)
26
703-48358-00-00
Anchor, Cable 2 (6x10)
27
EL8-48231-00-00
Housing, Gear (6x10)
27
EL8-48231-00-00
Housing, Gear (6x10)
28
EL8-48241-00-00
Arm, Drive (6x10)
28
EL8-48241-00-00
Arm, Drive (6x10)
29
EL8-48254-00-00
Stopper, Thrtl Adj (6x10)
29
EL8-48254-00-00
Stopper, Thrtl Adj (6x10)
30
98780-06020-00
Screw, Flat Head (6x10)
30
98780-06020-00
Screw, Flat Head (6x10)
32
98580-04006-00
Screw, Pan Head (6x10)
32
98580-04006-00
Screw, Pan Head (6x10)
33
98780-05018-00
Screw, Flat Head (6x10) (5 Per Pack)
33
98780-05018-00
Screw, Flat Head (6x10) (5 Per Pack)
34
EL8-48244-00-00
Spring, Free Accel (6x10)
34
EL8-48244-00-00
Spring, Free Accel (6x10)
35
EL8-48245-00-00
Plate, Lock (6x10)
35
EL8-48245-00-00
Plate, Lock (6x10)
36
704-48222-00-00
Grip, Control Lever (6x10)
36
704-48222-00-00
Grip, Control Lever (6x10)
37
704-82594-00-00
Clamp (6x10)
37
704-82594-00-00
Clamp (6x10)
38
704-48228-00-00
Holder, Switch (6x10)
38
704-48228-00-00
Holder, Switch (6x10)
39
704-82563-31-00
Trim & Tilt Switch A (6x10)
39
704-82563-31-00
Trim & Tilt Switch A (6x10)
40
704-48229-00-00
Grip, Control Lvr 2 (6x10)
40
704-48229-00-00
Grip, Control Lvr 2 (6x10)
41
92990-05300-00
Washer (6x10) (5 Per Pack)
42
95380-06600-00
Nut (6x10) (5 Per Pack)
42
95380-06600-00
Nut (6x10) (5 Per Pack)
43
701-48248-00-00
Roller, Free Accel. (6x10)
43
701-48248-00-00
Roller, Free Accel. (6x10)
44
703-48238-00-00
Spring, Detent (6x10)
44
703-48238-00-00
Spring, Detent (6x10)
45
EL8-48232-00-00
Gear 1 (6x10)
45
EL8-48232-00-00
Gear 1 (6x10)
47
704-48242-00-00
Shaft, Drive (6x10)
47
704-48242-00-00
Shaft, Drive (6x10)
48
704-48225-00-00
Cover (6x10)
48
704-48225-00-00
Cover (6x10)
49
704-48192-00-00
Washer 2 (6x10)
49
704-48192-00-00
Washer 2 (6x10)
50
97880-06018-00
Screw, Pan Head (6x10)
50
97880-06018-00
Screw, Pan Head (6x10)
51
92990-06300-00
Washer, In.tooth (6x10)
51
92990-06300-00
Washer, In.tooth (6x10)
52
702-48263-00-00
Bushing 4 (6x10)
52
702-48263-00-00
Bushing 4 (6x10)
53
EL8-48279-00-00
Circlip 2 (6x10)
53
EL8-48279-00-00
Circlip 2 (6x10)
54
704-48193-00-00
Washer 3 (6x10)
54
704-48193-00-00
Washer 3 (6x10)
55
EL8-48234-00-00
Bush 1 (6x10)
55
EL8-48234-00-00
Bush 1 (6x10)
56
704-48219-00-00
Cover, Lead (6x10)
56
704-48219-00-00
Cover, Lead (6x10)
57
704-48144-00-00
Plate, Stopper 2 (6x10)
57
704-48144-00-00
Plate, Stopper 2 (6x10)
58
704-48176-10-00
Grommet (6x10)
58
704-48176-10-00
Grommet (6x10)
59
703-48192-00-00
Washer 2 (6x10)
60
EL8-48233-00-00
Gear 2 (6x10)
60
EL8-48233-00-00
Gear 2 (6x10)
61
703-48235-00-00
Bushing (6x10)
61
703-48235-00-00
Bushing (6x10)
62
704-48282-00-00
Screw 2 (6x10)
62
704-48282-00-00
Screw 2 (6x10)
63
EL8-48153-10-00
Shaft, Free Accel. (6x10)
63
EL8-48153-10-00
Shaft, Free Accel. (6x10)
64
704-48166-00-00
Plug (6x10)
64
704-48166-00-00
Plug (6x10)
65
704-48284-00-00
Grommet 1 (6x10)
65
704-48284-00-00
Grommet 1 (6x10)
66
704-81950-00-00
Relay Assy (6x10)
66
704-81950-00-00
Relay Assy (6x10)
67
704-82590-10-00
Wire Harness Assy (6x10)
67
704-82590-10-00
Wire Harness Assy (6x10)
68
704-48229-10-00
Grip, Control Lvr (6x10)
68
704-48229-10-00
Grip, Control Lvr (6x10)
69
704-82563-F0-00
Trim & Tilt Switch (6x10)
69
704-82563-F0-00
Trim & Tilt Switch (6x10)
70
704-48228-10-00
Holder, Switch (6x10)
70
704-48228-10-00
Holder, Switch (6x10)
71
98580-05555-00
Screw, Pan Head (6x10)
71
98580-05555-00
Screw, Pan Head (6x10)
72
704-48156-00-00
Nut 1 (6x10)
72
704-48156-00-00
Nut 1 (6x10)
73
704-82563-F0-00
Trim & Tilt Switch (6x10)
73
704-82563-F0-00
Trim & Tilt Switch (6x10)
74
704-48285-00-00
Grommet 2 (6x10)
74
704-48285-00-00
Grommet 2 (6x10)
75
704-48286-00-00
Grommet 3 (6x10)
75
704-48286-00-00
Grommet 3 (6x10)
77
704-48221-00-00
Handle, Control 704 (6x10)
77
704-48221-00-00
Handle, Control 704 (6x10)
78
704-48119-20-00
Cover, Housing Dual (6x10)
78
704-48119-20-00
Cover, Housing Dual (6x10)
