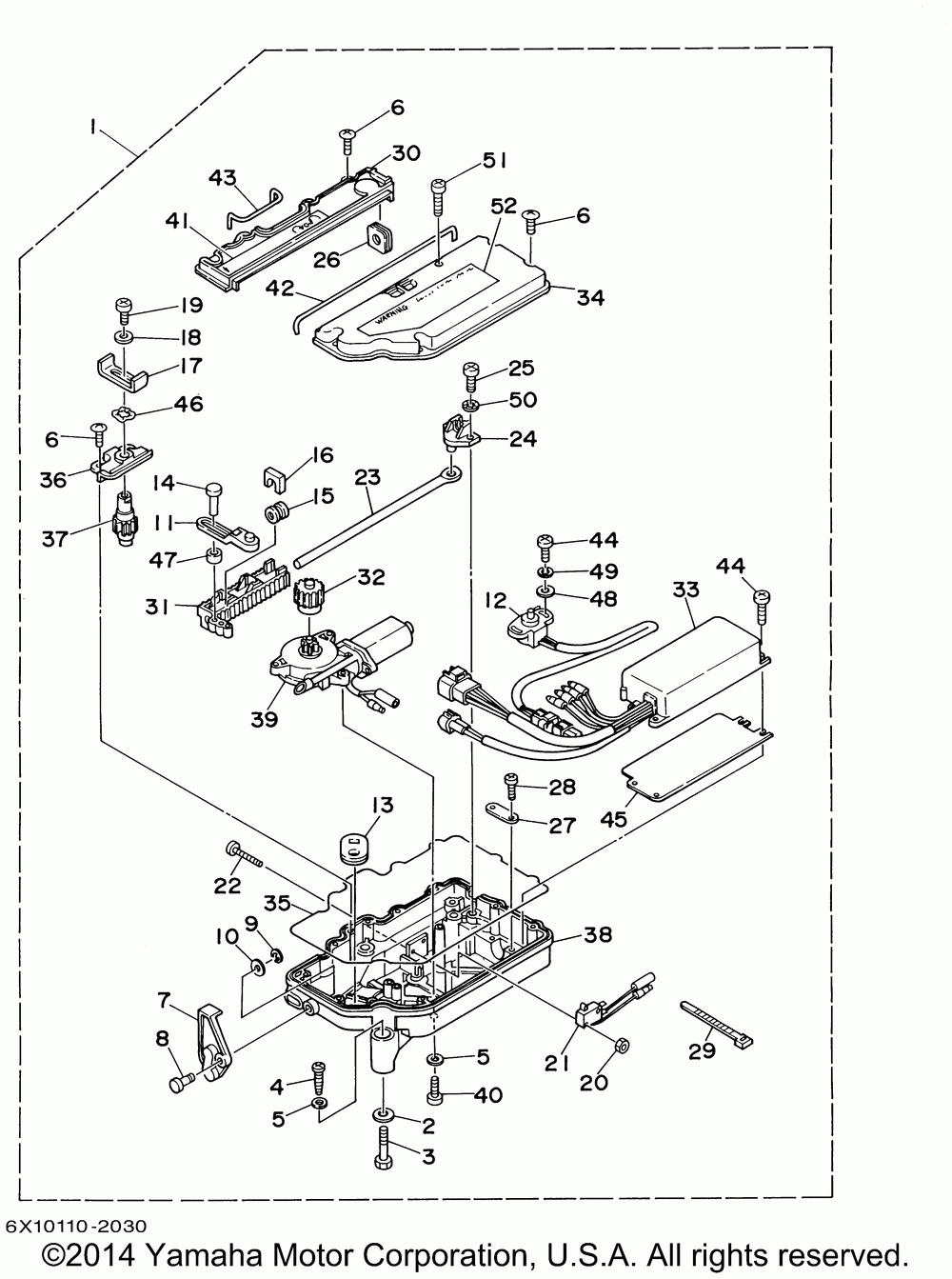

Remote control assy1(actuater)
Remote control assy1(actuater)

Remote control assy1(actuater)

Yamaha DUAL_STATI

Remote control assy1(actuater)

#

oem код

название

цена

1

6X1-48208-20-00

Actuater(dual Statio (dual Station) (6x10)

Actuater(dual Statio (dual Station) (6x10)

2

Washer (6x10) (5 Per Pack)

Washer (6x10) (5 Per Pack)

3

6X1-48171-00-00

Bolt (m8x1.25x40) (6x10)

Bolt (m8x1.25x40) (6x10)

4

6X0-48128-00-00

Screw 2 (m6x30) (6x10)

Screw 2 (m6x30) (6x10)

5

702-48288-00-00

Washer, Plain (6x10)

Washer, Plain (6x10)

6

6X1-48127-00-00

Screw (m5x12) (6x10)

Screw (m5x12) (6x10)

7

6X1-48136-00-00

Lever, Shift (6x10)

Lever, Shift (6x10)

8

6X1-48173-00-00

Pin (6x10)

Pin (6x10)

9

Circlip, E-type (6x10)

Circlip, E-type (6x10)

10

701-48246-00-00

Spacer 1 (6x10)

Spacer 1 (6x10)

11

6X1-14573-00-00

Lever (6x10)

Lever (6x10)

12

6X2-85885-10-00

Throttle Sensor Assy (6x10)

Throttle Sensor Assy (6x10)

13

6X1-48284-00-00

Grommet (6x10)

Grommet (6x10)

14

6X1-48174-00-00

Pin (6x10)

Pin (6x10)

15

6X1-48333-00-00

Cable, End (10-32unf) (6x10)

Cable, End (10-32unf) (6x10)

16

6X1-48354-00-00

Set-plate, Cable (6x10)

Set-plate, Cable (6x10)

17

6X1-48148-00-00

Lever, Shift 2 (6x10)

Lever, Shift 2 (6x10)

18

704-48287-00-00

Washer 1 (6x10)

Washer 1 (6x10)

19

6X1-48281-00-00

Screw (m5x0.8x12) (6x10)

Screw (m5x0.8x12) (6x10)

20

Nut (6x10) (5 Per Pack)

Nut (6x10) (5 Per Pack)

21

703-82540-00-00

Neutral Switch Asy (6x10)

Neutral Switch Asy (6x10)

22

6X1-48282-00-00

Screw (m3x0.5x20) (6x10)

Screw (m3x0.5x20) (6x10)

23

6X1-48294-00-00

Shaft 1 (6x10)

Shaft 1 (6x10)

24

6X1-48178-00-00

Plate, Shift (6x10)

Plate, Shift (6x10)

25

6X1-48282-A0-00

Screw (m6x1.0x25) (6x10)

Screw (m6x1.0x25) (6x10)

26

6X1-48285-00-00

Grommet 2 (6x10)

Grommet 2 (6x10)

27

6X1-48143-00-00

Plate, Stopper (6x10)

Plate, Stopper (6x10)

28

6X1-48289-00-00

Screw (m5x10) (6x10)

Screw (m5x10) (6x10)

29

1UA-82591-00-00

Band (6x10)

Band (6x10)

30

6X1-48224-00-00

Cover, Control Levr (6x10)

Cover, Control Levr (6x10)

31

6X1-48232-A0-00

Gear (6x10)

Gear (6x10)

32

6X1-48233-A0-00

Gear 2 (6x10)

Gear 2 (6x10)

33

6X1-85590-20-00

Control Unit Assy (6x10)

Control Unit Assy (6x10)

34

6X1-48119-A0-00

Cover (6x10)

Cover (6x10)

35

6X1-48353-00-00

Bush, Rubber (6x10)

Bush, Rubber (6x10)

36

6X1-48517-00-00

Cap (6x10)

Cap (6x10)

37

6X1-48122-00-00

Gear 2 (6x10)

Gear 2 (6x10)

38

6X1-48211-A0-00

Housing, 1 (6x10)

Housing, 1 (6x10)

39

Motor Assy (6x1) (6x10)

Motor Assy (6x1) (6x10)

40

6X1-48281-A0-00

Screw (m6x1.0x35) (6x10)

Screw (m6x1.0x35) (6x10)

41

6X1-14488-00-00

Label, Caution (6x10)

Label, Caution (6x10)

42

6X1-48353-10-00

Bush, Rubber (6x10)

Bush, Rubber (6x10)

43

6X1-48353-20-00

Bush, Rubber (6x10)

Bush, Rubber (6x10)

44

6X1-48129-00-00

Screw (m5x16) (6x10)

Screw (m5x16) (6x10)

45

6X1-48213-00-00

Plate (6x10)

Plate (6x10)

46

6X1-48555-00-00

Washer, Wave (6x10)

Washer, Wave (6x10)

47

6X1-48246-00-00

Spacer (6x10)

Spacer (6x10)

48

Washer (6x10) (5 Per Pack)

Washer (6x10) (5 Per Pack)

49

Washer, Spring (6x10) (5 Per Pack)

Washer, Spring (6x10) (5 Per Pack)

50

Washer (6x10) (5 Per Pack)

Washer (6x10) (5 Per Pack)

51

6X1-48128-00-00

Screw (m5x30) (6x10)

Screw (m5x30) (6x10)

52

6X1-13437-00-00

Mark, Caution (6x10)

Mark, Caution (6x10)
