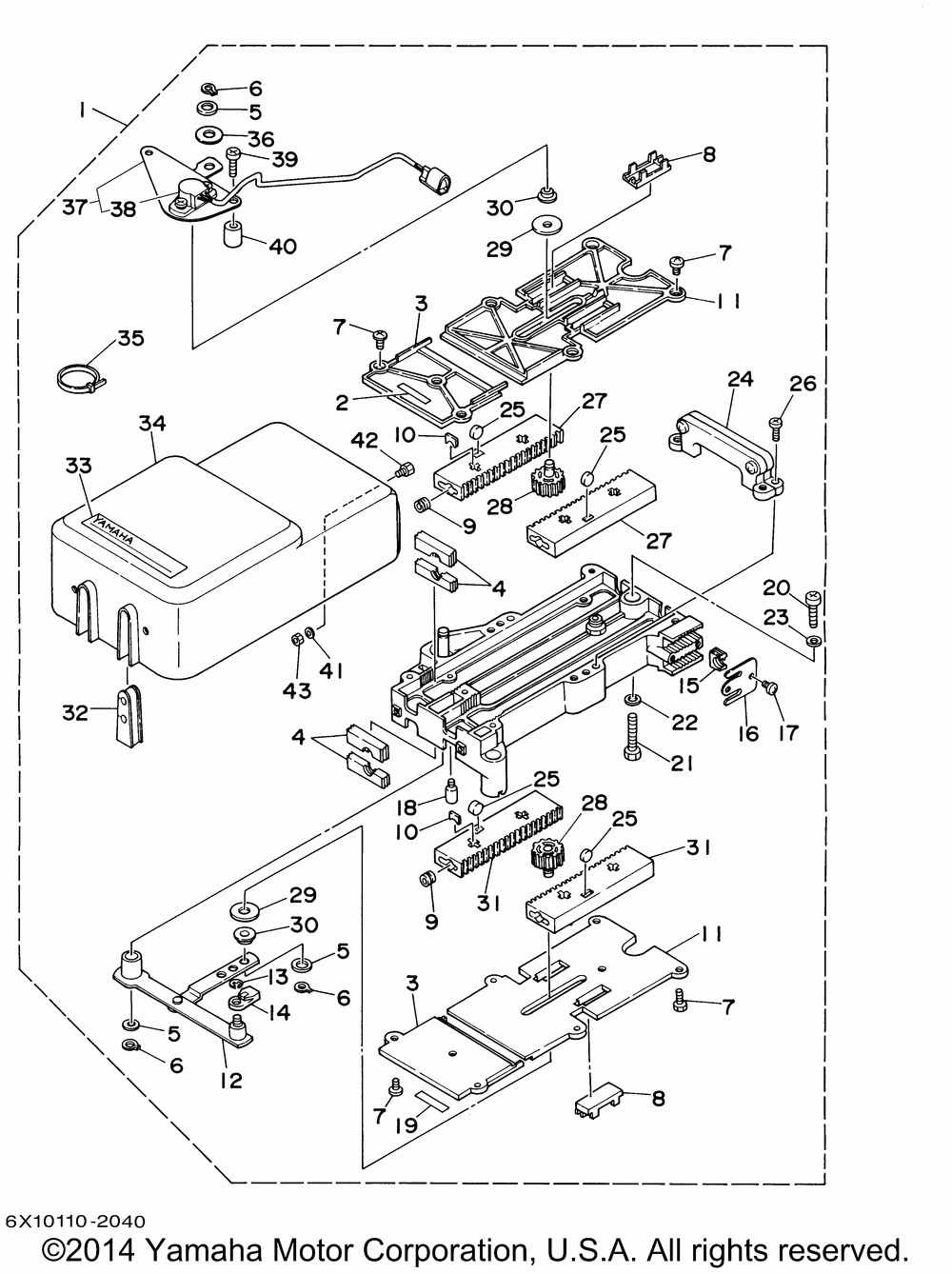

Remote control assy2(junction)
Remote control assy2(junction)

Remote control assy2(junction)

Yamaha DUAL_STATI

Remote control assy2(junction)

#

oem код

название

цена

1

6X1-48208-02-00

Junction Box (dual Station) (6x10)

Junction Box (dual Station) (6x10)

2

6X1-48125-00-00

Mark (6x10)

Mark (6x10)

2

6X1-48125-00-00

Mark (6x10)

Mark (6x10)

3

6X1-48229-00-00

Cover (6x10)

Cover (6x10)

3

6X1-48229-00-00

Cover (6x10)

Cover (6x10)

4

6X1-48331-00-00

Hook, Cable (6x10)

Hook, Cable (6x10)

4

6X1-48331-00-00

Hook, Cable (6x10)

Hook, Cable (6x10)

5

702-48288-00-00

Washer, Plain (6x10)

Washer, Plain (6x10)

5

702-48288-00-00

Washer, Plain (6x10)

Washer, Plain (6x10)

6

EL8-48259-00-00

Circlip (6x10)

Circlip (6x10)

6

EL8-48259-00-00

Circlip (6x10)

Circlip (6x10)

7

EL8-48127-00-00

Screw 1 (6x10)

Screw 1 (6x10)

7

EL8-48127-00-00

Screw 1 (6x10)

Screw 1 (6x10)

8

6X1-48138-00-00

Cap, Lock Arm (6x10)

Cap, Lock Arm (6x10)

8

6X1-48138-00-00

Cap, Lock Arm (6x10)

Cap, Lock Arm (6x10)

9

6X1-48333-00-00

Cable, End (10-32unf) (6x10)

Cable, End (10-32unf) (6x10)

9

6X1-48333-00-00

Cable, End (10-32unf) (6x10)

Cable, End (10-32unf) (6x10)

10

6X1-48354-00-00

Set-plate, Cable (6x10)

Set-plate, Cable (6x10)

10

6X1-48354-00-00

Set-plate, Cable (6x10)

Set-plate, Cable (6x10)

11

6X1-48235-00-00

Cover 1 (6x10)

Cover 1 (6x10)

11

6X1-48235-00-00

Cover 1 (6x10)

Cover 1 (6x10)

12

6X1-48261-00-00

Arm, Throttle (6x10)

Arm, Throttle (6x10)

12

6X1-48261-00-00

Arm, Throttle (6x10)

Arm, Throttle (6x10)

13

Circlip, E-type (6x10)

Circlip, E-type (6x10)

13

Circlip, E-type (6x10)

Circlip, E-type (6x10)

14

703-48345-01-00

Cable End, Remote (6x10)

Cable End, Remote (6x10)

14

703-48345-01-00

Cable End, Remote (6x10)

Cable End, Remote (6x10)

15

6X1-48361-00-00

Hook, Cable (6x10)

Hook, Cable (6x10)

15

6X1-48361-00-00

Hook, Cable (6x10)

Hook, Cable (6x10)

16

6X1-48147-00-00

Plate (6x10)

Plate (6x10)

16

6X1-48147-00-00

Plate (6x10)

Plate (6x10)

17

Screw, Pan Head (6x10)

Screw, Pan Head (6x10)

17

Screw, Pan Head (6x10)

Screw, Pan Head (6x10)

18

6X1-48163-00-00

Pin 1 (6x10)

Pin 1 (6x10)

18

6X1-48163-00-00

Pin 1 (6x10)

Pin 1 (6x10)

19

6X1-48126-00-00

Graphic (6x10)

Graphic (6x10)

19

6X1-48126-00-00

Graphic (6x10)

Graphic (6x10)

20

6X0-48128-00-00

Screw 2 (m6x30) (6x10)

Screw 2 (m6x30) (6x10)

21

6X1-48171-00-00

Bolt (m8x1.25x40) (6x10)

Bolt (m8x1.25x40) (6x10)

21

6X1-48171-00-00

Bolt (m8x1.25x40) (6x10)

Bolt (m8x1.25x40) (6x10)

22

Washer (6x10) (5 Per Pack)

Washer (6x10) (5 Per Pack)

22

Washer (6x10) (5 Per Pack)

Washer (6x10) (5 Per Pack)

23

702-48288-00-00

Washer, Plain (6x10)

Washer, Plain (6x10)

23

702-48288-00-00

Washer, Plain (6x10)

Washer, Plain (6x10)

24

6X1-48274-01-00

Shift Housing Comp (6x10)

Shift Housing Comp (6x10)

24

6X1-48274-01-00

Shift Housing Comp (6x10)

Shift Housing Comp (6x10)

25

6X1-48236-00-00

Roller, Detent (6x10)

Roller, Detent (6x10)

25

6X1-48236-00-00

Roller, Detent (6x10)

Roller, Detent (6x10)

26

6X1-48281-00-00

Screw (m5x0.8x12) (6x10)

Screw (m5x0.8x12) (6x10)

26

6X1-48281-00-00

Screw (m5x0.8x12) (6x10)

Screw (m5x0.8x12) (6x10)

27

6X1-48232-00-00

Gear (6x10)

Gear (6x10)

27

6X1-48232-00-00

Gear (6x10)

Gear (6x10)

28

6X1-48233-00-00

Gear 2 (6x10)

Gear 2 (6x10)

28

6X1-48233-00-00

Gear 2 (6x10)

Gear 2 (6x10)

29

6X1-48287-00-00

Washer (6x10)

Washer (6x10)

29

6X1-48287-00-00

Washer (6x10)

Washer (6x10)

30

6X1-48234-00-00

Bushing 1 (6x10)

Bushing 1 (6x10)

30

6X1-48234-00-00

Bushing 1 (6x10)

Bushing 1 (6x10)

31

6X1-48121-00-00

Gear 1 (6x10)

Gear 1 (6x10)

31

6X1-48121-00-00

Gear 1 (6x10)

Gear 1 (6x10)

32

6X1-48166-00-00

Plug (6x10)

Plug (6x10)

32

6X1-48166-00-00

Plug (6x10)

Plug (6x10)

33

6X1-48225-00-00

Graphic (6x10)

Graphic (6x10)

33

6X1-48225-00-00

Graphic (6x10)

Graphic (6x10)

34

6X1-48119-00-00

Cover (6x10)

Cover (6x10)

34

6X1-48119-00-00

Cover (6x10)

Cover (6x10)

35

1UA-82591-00-00

Band (6x10)

Band (6x10)

35

1UA-82591-00-00

Band (6x10)

Band (6x10)

36

701-48266-00-00

Spacer (6x10)

Spacer (6x10)

36

701-48266-00-00

Spacer (6x10)

Spacer (6x10)

37

6X1-48271-02-00

Arm, Shift (6x10)

Arm, Shift (6x10)

37

6X1-48271-02-00

Arm, Shift (6x10)

Arm, Shift (6x10)

38

6X2-85885-10-00

Throttle Sensor Assy (6x10)

Throttle Sensor Assy (6x10)

38

6X2-85885-10-00

Throttle Sensor Assy (6x10)

Throttle Sensor Assy (6x10)

39

6X1-48283-00-00

Screw (m5x0.8x25) (6x10)

Screw (m5x0.8x25) (6x10)

39

6X1-48283-00-00

Screw (m5x0.8x25) (6x10)

Screw (m5x0.8x25) (6x10)

40

6X1-48293-00-00

Spacer, Remote Ctl (6x10)

Spacer, Remote Ctl (6x10)

40

6X1-48293-00-00

Spacer, Remote Ctl (6x10)

Spacer, Remote Ctl (6x10)

41

Washer (6x10) (5 Per Pack)

Washer (6x10) (5 Per Pack)

41

Washer (6x10) (5 Per Pack)

Washer (6x10) (5 Per Pack)

42

6X1-48165-00-00

Bushing (6x10)

Bushing (6x10)

42

6X1-48165-00-00

Bushing (6x10)

Bushing (6x10)

43

Nut (6x10) (5 Per Pack)

Nut (6x10) (5 Per Pack)

43

Nut (6x10) (5 Per Pack)

Nut (6x10) (5 Per Pack)
