Кронштейн 1 Каталог оригинальных запчастей для лодочных моторов Yamaha DX150TLRA (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Yamaha
2002
DX150TLRA

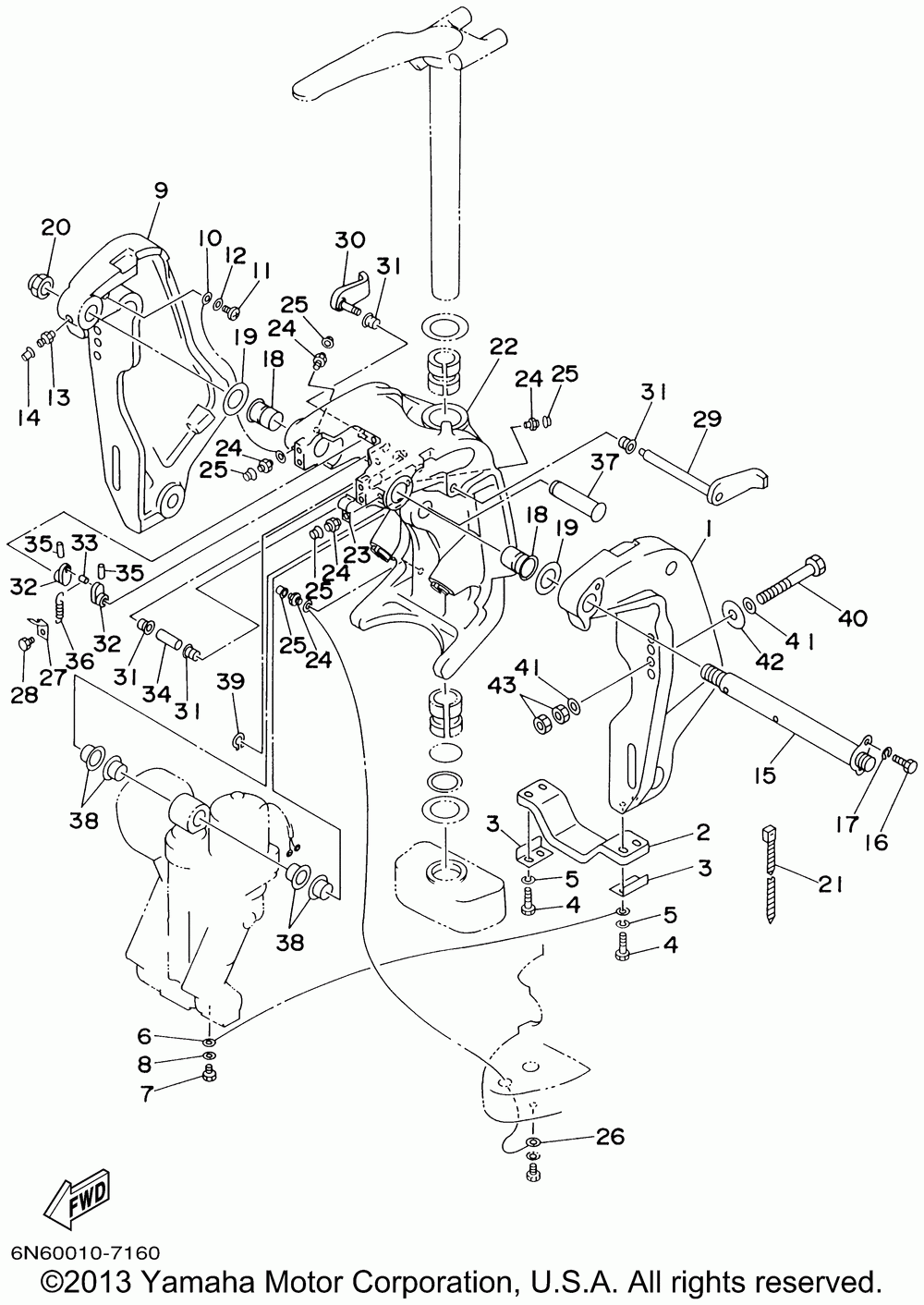

Кронштейн 1
Кронштейн 1

Кронштейн 1

Yamaha DX150TLRA

Кронштейн 1

#

oem код

название

цена

1

64E-43111-02-8D

Bracket, Clamp (67n1)

Bracket, Clamp (67n1)

2

6G5-45251-02-00

Anode (67n1)

Anode (67n1)

3

6G5-44526-00-00

Plate (67n1)

Plate (67n1)

4

Bolt (67n1)

Bolt (67n1)

5

Washer (67n1) (5 Per Pack)

Washer (67n1) (5 Per Pack)

6

6E5-82148-00-00

Wire, Lead 4 (67n1)

Wire, Lead 4 (67n1)

7

Bolt (67n1)

Bolt (67n1)

8

Washer (67n1) (5 Per Pack)

Washer (67n1) (5 Per Pack)

9

64E-43112-02-8D

Bracket, Clamp (67n1)

Bracket, Clamp (67n1)

10

6E5-82148-00-00

Wire, Lead 4 (67n1)

Wire, Lead 4 (67n1)

11

Screw, Pan Head (67n1)

Screw, Pan Head (67n1)

12

Washer (67n1) (5 Per Pack)

Washer (67n1) (5 Per Pack)

13

Nipple, Grease (67n1)

Nipple, Grease (67n1)

14

663-45119-00-00

Cap, Grease Nipple Ap(67n1)

Cap, Grease Nipple Ap(67n1)

15

64E-43131-01-00

Bolt, Clamp Bracket (67n1)

Bolt, Clamp Bracket (67n1)

16

Bolt (67n1)

Bolt (67n1)

17

Washer, Spring (67n1)

Washer, Spring (67n1)

18

Bush, Spec'l Nylon (67n1)

Bush, Spec'l Nylon (67n1)

19

Washer, Plate (67n1)

Washer, Plate (67n1)

20

Nut, Self-locking (67n1)

Nut, Self-locking (67n1)

21

Clamp (67n1)

Clamp (67n1)

22

64E-43311-10-8D

Bracket, Swivel 1 L(67n1)

Bracket, Swivel 1 L(67n1)

23

Clamp (67n1)

Clamp (67n1)

24

Nipple, Grease (67n1)

Nipple, Grease (67n1)

25

663-45119-00-00

Cap, Grease Nipple Ap(67n1)

Cap, Grease Nipple Ap(67n1)

26

6E5-82147-00-00

Wire, Lead 4 L(67n1)

Wire, Lead 4 L(67n1)

27

6G5-43144-00-00

Hook, Spring (67n1)

Hook, Spring (67n1)

28

Bolt (67n1)

Bolt (67n1)

29

6G5-43181-02-00

Lever, Tilt Stop (67n1)

Lever, Tilt Stop (67n1)

30

6G5-43185-02-00

Lever, Tilt Stop 2 (67n1)

Lever, Tilt Stop 2 (67n1)

31

Bush, Spec'l Nylon (67n1) (5 Per Pack)

Bush, Spec'l Nylon (67n1) (5 Per Pack)

32

6G5-43148-00-00

Collar, Distance (67n1)

Collar, Distance (67n1)

33

Pin, Spec'l Shape (67n1)

Pin, Spec'l Shape (67n1)

34

Collar (67n1)

Collar (67n1)

35

Pin, Spring (67n1)

Pin, Spring (67n1)

36

Spring, Tension (67n1)

Spring, Tension (67n1)

37

64E-43126-00-00

Pin, Upper Shock Mt (67n1)

Pin, Upper Shock Mt (67n1)

38

Bush, Spec'l Nylon (67n1)

Bush, Spec'l Nylon (67n1)

39

Circlip, S-type (67n1)

Circlip, S-type (67n1)

40

Bolt (l:130mm) (l:130mm) (67n1)

Bolt (l:130mm) (l:130mm) (67n1)

41

Washer, Plate (67n1)

Washer, Plate (67n1)

42

Washer, Plate (67n1)

Washer, Plate (67n1)

43

Nut (67n1)

Nut (67n1)
