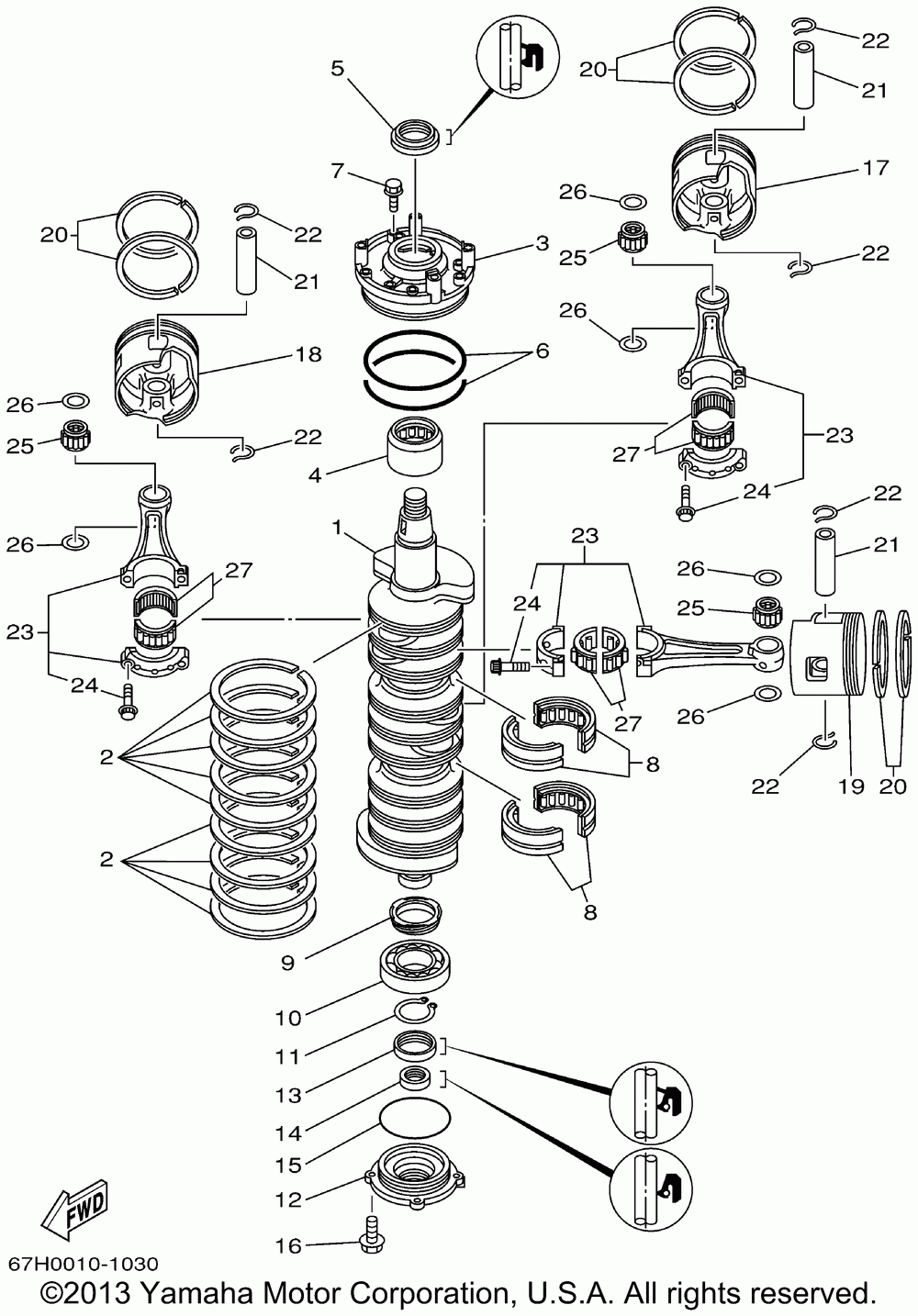

Коленчатый вал и Поршень

Yamaha DX150TLRA
Yamaha
#oem кодцена
1
67H-11411-01-00
Crankshaft (67n1)
2
6E5-11447-00-00
Seal, Crank (67n1)
3
67H-15163-00-1S
Housing, Bearing 1 (67n1)
4
93311-940U3-00
Bearing, Cyl.#11 (67n1)
5
93102-40M38-00
Oil Seal, Sd-type (67n1)
6
93211-04001-00
O-ring (67n1)
7
90119-06MA3-00
Bolt, With Washer (67n1)
8
93310-954U1-00
Bearing, Cyl. (67n1)
9
6R3-11536-00-00
Gear, Drive (67n1)
10
93306-208U0-00
Bearing (67n1)
11
99009-40400-00
Circlip (67n1)
12
6G5-15359-00-94
Housing, Oil Seal (67n1)
13
93102-35M13-00
Oil Seal, Sd-type (67n1)
14
93101-22M15-00
Oil Seal, S-type (67n1)
15
93210-74M35-00
O-ring (67n1)
16
90119-06MA2-00
Bolt, With Washer (67n1)
17
68F-11636-01-00
Piston (0.50mm O/s) (0.50mm O/s) Ap(67n1)
17
68F-11631-01-85
Piston (std) (std) 3, 5(67n1)
17
68F-11635-01-00
Piston (0.25mm O/s) (0.25mm O/s) Ap(67n1)
18
68F-11631-01-85
Piston (std) (std) 1(67n1)
18
68F-11635-01-00
Piston (0.25mm O/s) (0.25mm O/s) Ap(67n1)
18
68F-11636-01-00
Piston (0.50mm O/s) (0.50mm O/s) Ap(67n1)
19
64D-11646-02-00
Piston 2 (0.50mm O/s (0.50mm O/s) Ap(67n1)
19
64D-11645-02-00
Piston 2 (0.25mm O/s (0.25mm O/s) Ap(67n1)
19
64D-11642-02-90
Piston 2 (std) (std) 2, 4, 6(67n1)
20
64D-11603-02-00
Piston Ring Set (std (std) (67n1)
20
64D-11604-02-00
Piston Ring Set (0.2 (0.25mm O/s) Ap(67n1)
20
64D-11605-02-00
Piston Ring Set (0.5 (0.50mm O/s) Ap(67n1)
21
6R5-11633-10-00
Pin, Piston (67n1)
22
6R5-11634-10-00
Clip, Piston Pin (67n1)
23
6R5-11650-10-00
Connecting Rod Asy (67n1)
24
90109-08022-00
Bolt (67n1)
25
93310-32337-00
Bearing (67n1)
26
90201-23M01-00
Washer, Plate (67n1) (5 Per Pack)
27
93310-836U0-00
Bearing, Cyl.(61u) (67n1)
