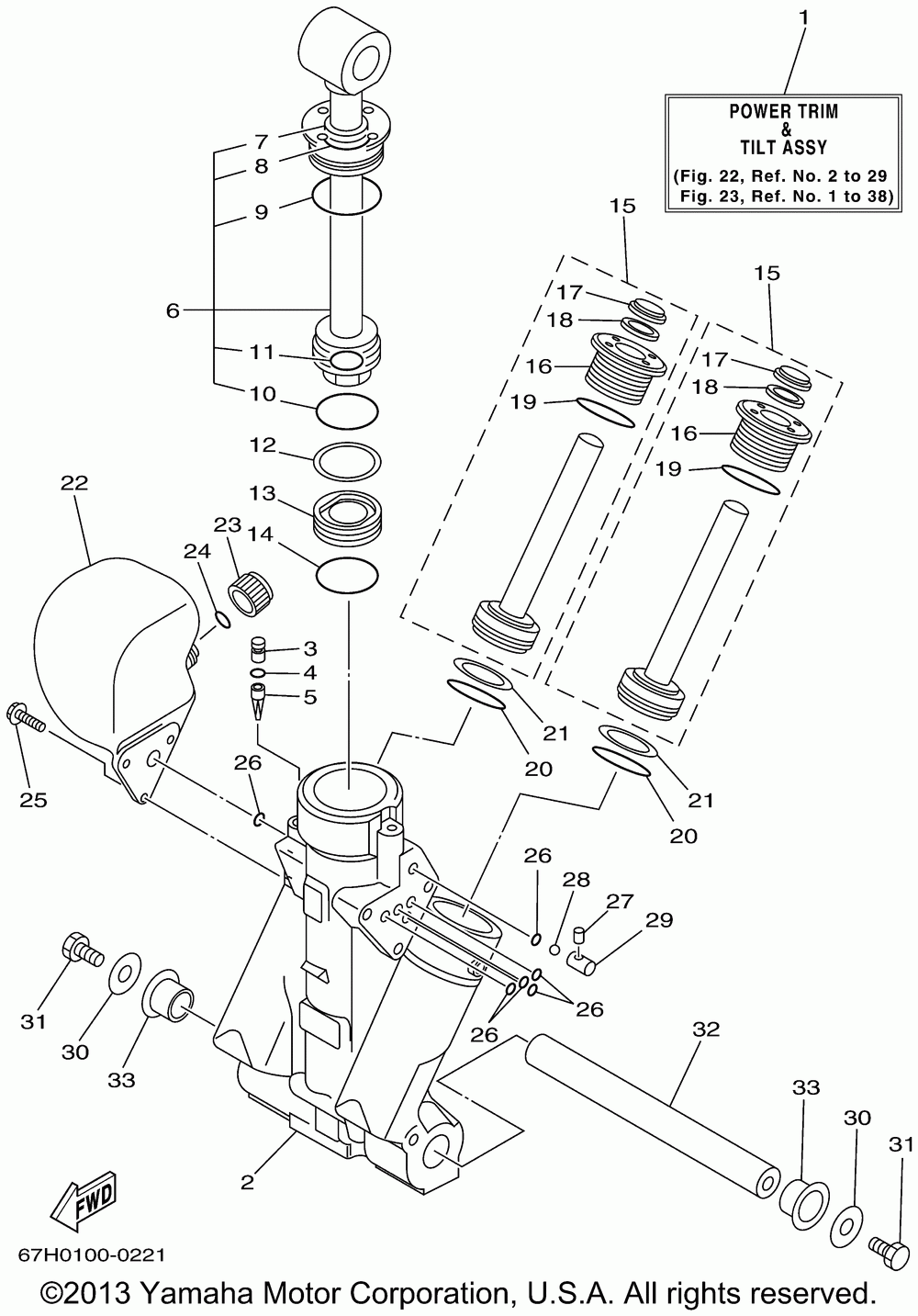

Power trim & tilt assy 1

Yamaha DX150TLRA
Yamaha
#oem кодцена
1
63P-43800-06-00
Power Trim & Tilt As (67n1)
2
64E-43825-09-00
Housing, Trim & Tilt (67n1)
3
6AW-4388J-00-00
Plug 2 (67n1)
4
93210-10M74-00
O-ring (67n1) (5 Per Pack)
5
64E-43817-00-00
Filter 2 (67n1)
6
64E-43810-09-00
Tilt Piston Sub Assy (67n1)
7
64E-43898-00-00
Dust Seal (67n1)
8
64E-43867-00-00
O-ring (67n1)
9
64E-43866-00-00
O-ring (67n1)
10
6E5-43862-00-00
O-ring (67n1)
11
64E-43883-00-00
O-ring (67n1)
12
6E5-43872-00-00
Ring, Back Up (67n1)
13
6E5-43814-02-00
Piston, Free (67n1)
14
6E5-43862-00-00
O-ring (67n1)
15
64E-43820-09-00
Trim Piston Sub Assy (67n1)
16
64E-43821-09-00
Screw, Trim Cylinder (67n1)
17
64E-43822-00-00
Seal, Trim Dust (67n1)
18
64E-4384J-00-00
Seal, Trim Down (67n1)
19
6G5-43864-00-00
O-ring (67n1)
20
6E5-43864-00-00
O-ring (67n1)
21
6E5-43874-01-00
Ring, Back Up (67n1)
22
64E-43828-01-00
Body, Reservoir (67n1)
23
64E-43829-01-00
Plug, Reservoir (67n1)
24
64E-43897-00-00
O-ring (67n1)
25
64E-4388E-01-00
Bolt , Screw (l:14mm) (l:14mm) (67n1)
26
64E-43869-00-00
O-ring (67n1)
27
64E-4381G-00-00
Pin 1 (67n1)
28
6E5-43858-00-00
Ball 1 (67n1)
29
64E-4382G-00-00
Seat Valve (67n1)
30
90201-08M14-00
Washer, Plate (67n1)
31
97080-08016-00
Bolt (67n1)
32
99999-03932-00
Lower Shock Mount Pi (67n1)
33
90386-22M98-00
Bush, Spec'l Nylon (67n1)
