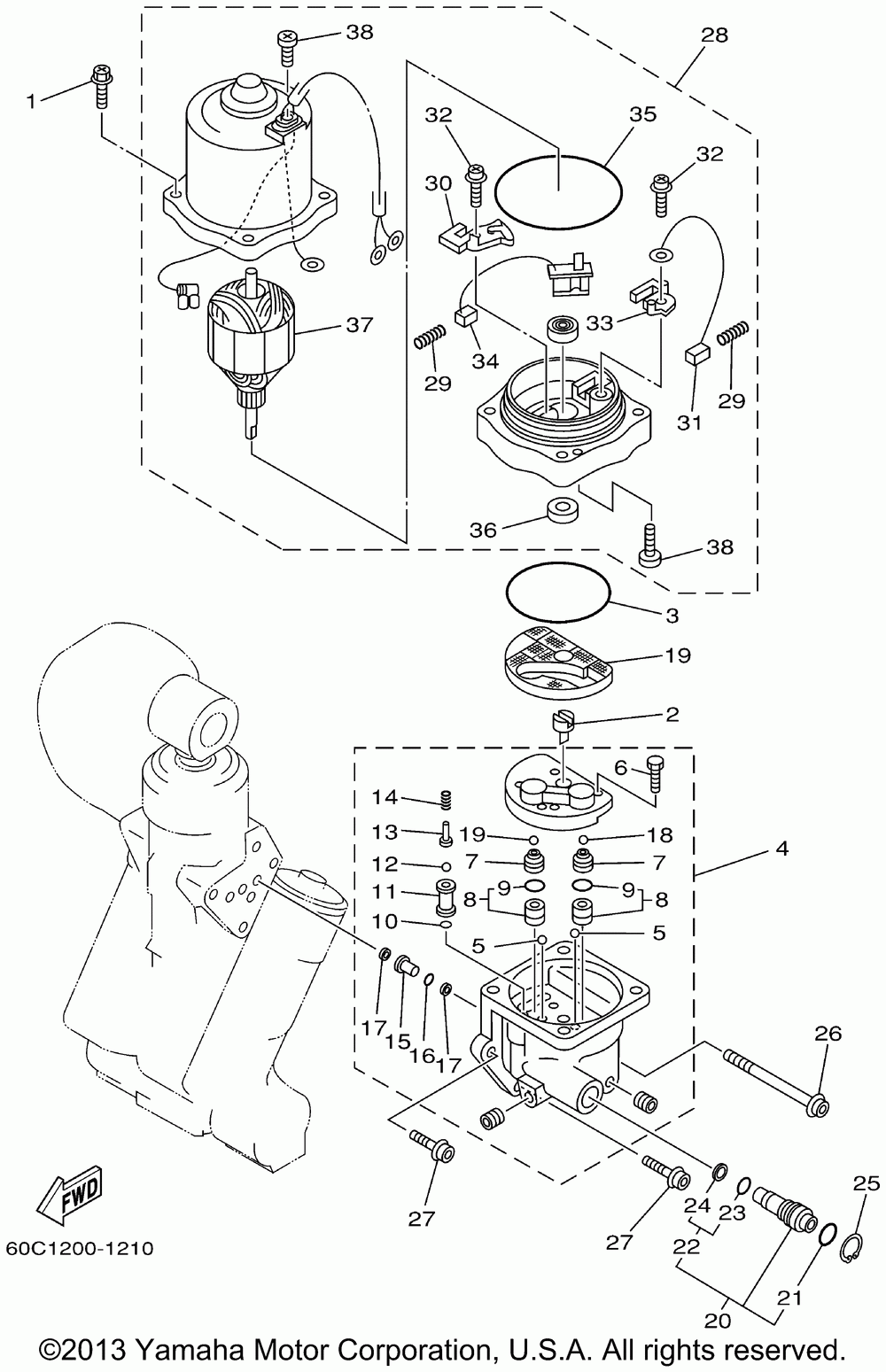

Power trim & tilt assy 2

Yamaha DX150TLRA
Yamaha
#oem кодцена
1
64E-4388E-11-00
Bolt , Screw (l:34.7m (l:14mm) (67n1)
2
64E-43831-00-00
Connector, Shaft (67n1)
3
64E-43868-00-00
O-ring (67n1)
4
6CB-43830-00-00
Gear Pump Assy (67n1)
5
72X-43858-00-00
Ball (67n1)
6
64E-43843-00-00
Screw, Valve Lock (67n1)
7
64E-43841-00-00
Piston, Shuttle (67n1)
8
64E-43802-00-00
Valve Sub Assy (67n1)
9
6E5-43896-00-00
O-ring (67n1)
10
6G5-43863-00-00
O-ring (67n1)
11
64E-43851-00-00
Seat, Relief Valve (67n1)
12
64E-43858-00-00
Ball (67n1)
13
64E-43859-00-00
Pin, Valve Support (67n1)
14
64E-43855-00-00
Spring, Up Relief (67n1)
15
64E-43850-00-00
Valve Sub-assy (67n1)
16
6E5-43883-00-00
O-ring (67n1)
17
64E-43816-00-00
Filter 1 (67n1)
18
64E-43858-00-00
Ball (67n1)
19
64E-43817-11-00
Filter 2 (67n1)
20
64E-43860-01-00
Manual Valve Sub-ass (67n1)
21
72X-85075-L0-00
O-ring (67n1)
22
64E-43827-00-00
Ring Set (67n1)
23
64E-4387A-00-00
O-ring (67n1)
24
64E-43873-00-00
Ring, Back Up (67n1)
25
6AW-43875-00-00
Ring, Snap (67n1)
26
64E-43879-11-00
Screw, With Washer (67n1)
27
64E-43879-01-00
Screw, With Washer (67n1)
28
67H-43880-10-00
Motor Assy (67n1)
29
6H1-4386K-10-00
Spring, Brush (67n1)
30
64E-4380J-00-00
Brush Holder Assy (67n1)
31
64E-43891-00-00
Brush 1 (67n1)
32
98507-04010-00
Screw, Panhead (67n1)
33
64E-4380F-00-00
Holder, Brush 2 (67n1)
34
64E-43892-00-00
Brush 2 (brush 2) (67n1)
35
6G5-43865-01-00
O-ring (67n1)
36
93102-08M43-00
Oil Seal, Sd-type (67n1)
37
64E-43805-01-00
Armature Assy (67n1)
38
64E-43843-10-00
Screw, Valve Lock (67n1)
