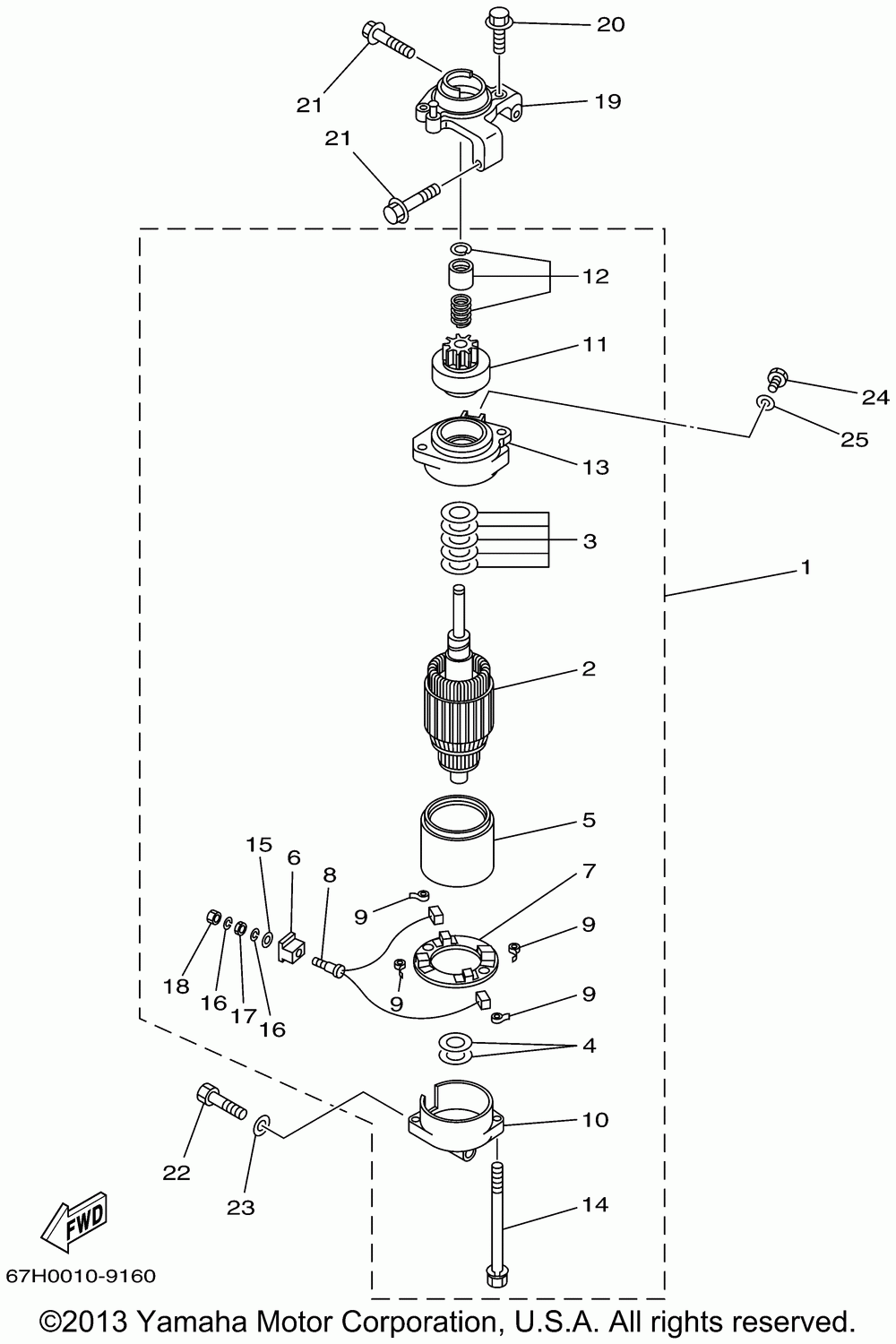

ПУСКОВОЙ ЭЛЕКТРОДВИГАТЕЛЬ

Yamaha DX150TLRA
Yamaha
#oem кодцена
1
6N7-81800-10-00
Starting Motor Assy (67n1)
2
6N7-81850-10-00
Armature Assy (67n1)
3
61A-81809-00-00
Washer Kit (67n1)
4
61A-81824-00-00
Washer 2 (67n1)
5
6N7-81810-00-00
Stator Asy (67n1)
6
6K7-8182G-10-00
Bush, Terminal (67n1)
7
6N7-81840-00-00
Brush Holder Asy (67n1)
8
6N7-81801-00-00
Brush Set (67n1)
9
6N7-81813-00-00
Spring, Brush (67n1)
10
6N7-81820-10-00
Rear Bracket Assy (67n1)
11
6N7-81807-00-00
Gear Assy, Startin (67n1)
12
6N7-81857-00-00
Retainer (67n1)
13
6N7-81830-00-00
Fornt Bracket Asy (67n1)
14
6K7-81826-11-00
Bolt (67n1)
15
6E5-8182E-10-00
Washer, Plain (67n1)
16
6E5-8182F-10-00
Washer, Plain (67n1)
17
6E5-8182A-10-00
Nut (67n1)
18
6E5-8182K-10-00
Nut (67n1)
19
67H-81822-00-94
Bracket, Starting (67n1)
20
90119-08M76-00
Bolt, With Washer (67n1)
21
90119-08M77-00
Bolt, With Washer (67n1)
22
90119-08M57-00
Bolt, With Washer (67n1)
23
92990-08600-00
Washer (67n1) (5 Per Pack)
24
97095-08016-00
Bolt (67n1)
25
92990-08600-00
Washer (67n1) (5 Per Pack)
