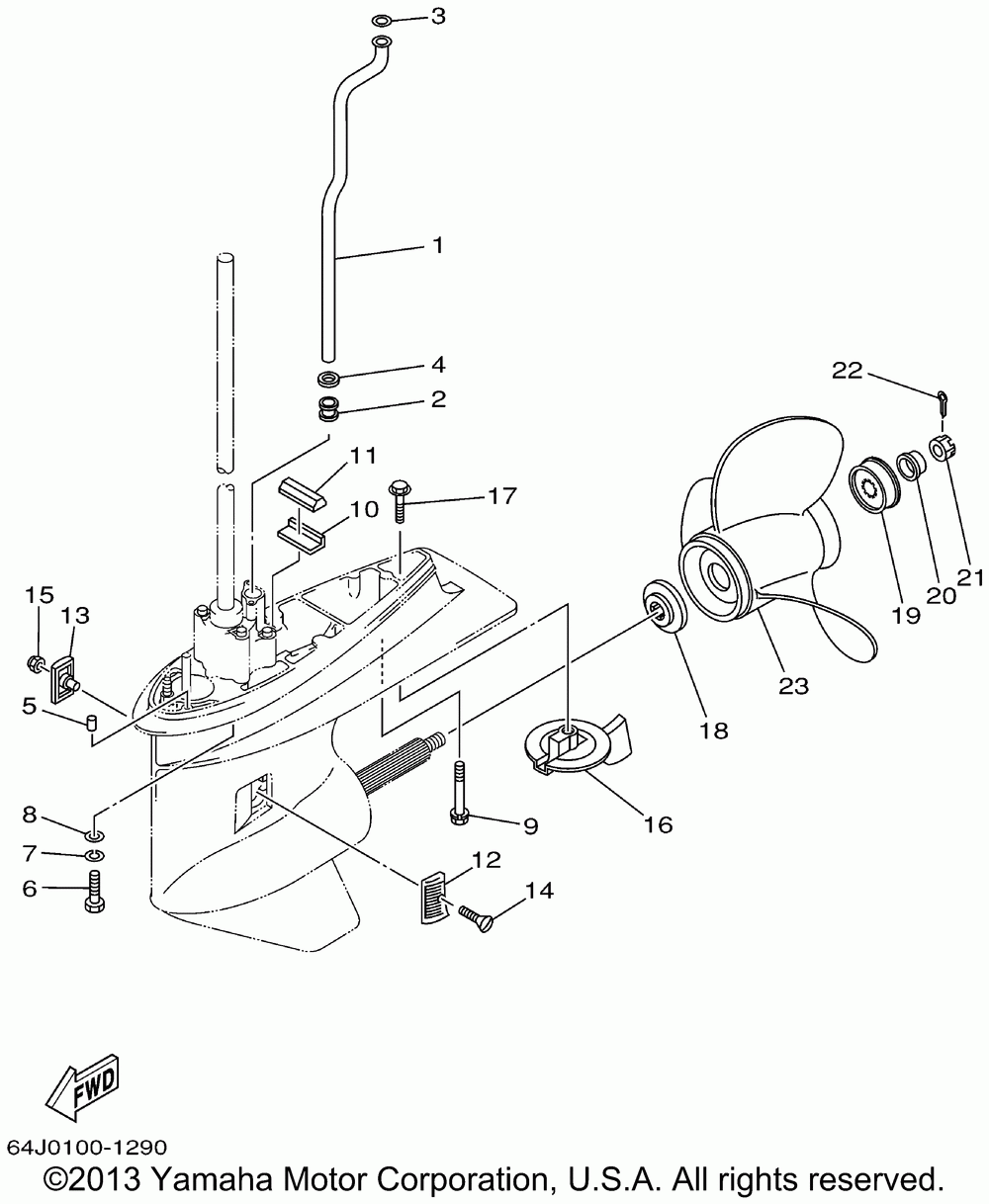

Lower casing drive two t50tlra

Yamaha F50TLRA/T50TLRA/F50TJRA
Yamaha
#oem кодцена
1
62Y-44361-00-00
Tube, Water (t50)
2
663-44367-00-00
Water Seal (t50)
3
90202-12060-00
Washer, Plate (t50)
4
90430-12072-00
Gasket (t50)
5
93606-12019-00
Pin, Dowel (t50) (5 Per Pack)
6
97075-10040-00
Bolt (t50)
7
92990-10100-00
Washer, Spring (t50) (5 Per Pack)
8
92990-10600-00
Washer (t50) (5 Per Pack)
9
90119-08M84-00
Bolt, With Washer (t50)
10
663-45376-00-00
Guide, Rub.seal (t50)
11
688-45375-00-00
Seal, Rubber (t50)
12
6H1-45214-00-00
Cover, Wtr.inlet (t50)
13
6H1-45215-00-00
Cover, Water Inlet (t50)
14
90151-05M00-00
Screw, Countersunk (t50) (5 Per Pack)
15
90185-05904-00
Nut, Self-locking (t50)
16
67F-45371-00-00
Tab-trim (t50)
17
90105-10M00-00
Bolt, Washer Based (t50)
18
688-45987-01-00
Spacer 1 (t50)
19
67F-45997-00-00
Spacer (t50)
20
90389-25M00-00
Bush (t50)
21
90171-16011-00
Nut, Castle (t50)
22
91490-40030-00
Pin, Cotter (t50) (5 Per Pack)
23
6E5-45956-00-00
Al.prop 3x13"x25"-k (3x13"x25"-k) Ur (t50)
23
6E5-45943-00-00
Al.prop.12 5/8x21 (3x12-5/8"x21"-k) Ur (t50)
23
6E5-45954-00-00
Al.prop. 14 X 11 (3x14"x11"-k) Ur (t50)
23
6E5-45952-00-00
Al.prop.13 X 23 (3x13"x23"-k) Ur (t50)
23
6E5-45949-00-00
Al.prop.13 5/8 X 13 (3x13-5/8"x13"-k) Ur (t50)
23
6E5-45947-00-00
Al.prop13 1/2x15 (3x13-1/2"x15"-k) Ur (t50)
23
6E5-45945-01-00
Al.prop 13-1/4x17 (3x13-1/4"x17"-k) Ur (t50)
23
6E5-45941-00-00
Al.prop. 13x19 (3x13"x19"-k) Ur (t50)
