Crankshaft piston Каталог оригинальных запчастей для лодочных моторов Yamaha F50TLRA/T50TLRA/F50TJRA (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

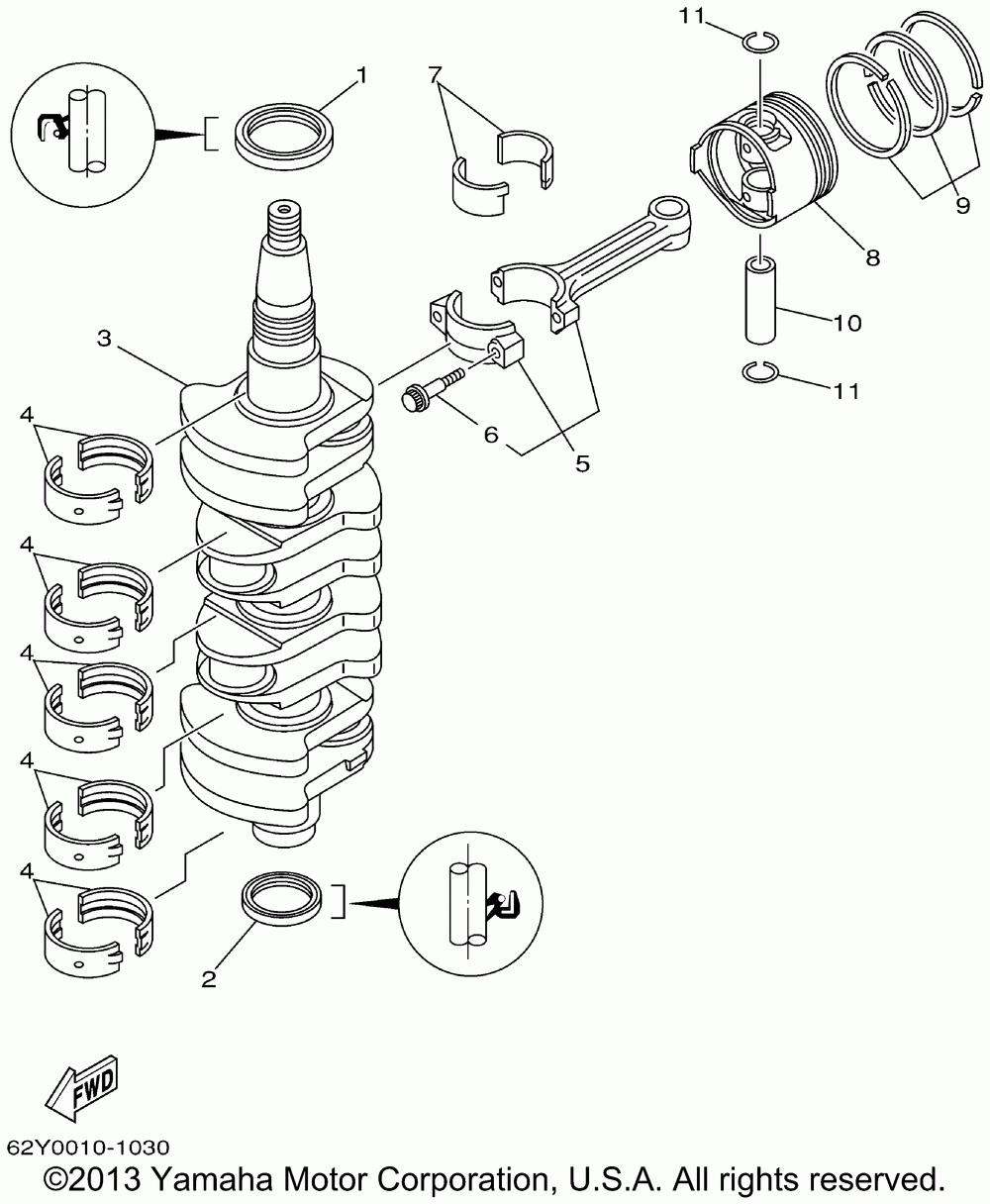

Crankshaft piston

Yamaha F50TLRA/T50TLRA/F50TJRA

Crankshaft piston

#

oem код

название

цена

1

Сальник

Сальник

2

Сальник

Сальник

3

Crankshaft & Nut Set

Crankshaft & Nut Set

4

6C5-11416-30-00

Plane Bearing, Crank Ur Green

Plane Bearing, Crank Ur Green

4

6C5-11416-00-00

Plane Bearing, Crank Ur Yellow

Plane Bearing, Crank Ur Yellow

4

6C5-11416-10-00

Plane Bearing, Crank Ur Red

Plane Bearing, Crank Ur Red

4

6C5-11416-20-00

Plane Bearing, Crank Ur Pink

Plane Bearing, Crank Ur Pink

5

6C5-11650-10-00

Шатун в комплекте

Шатун в комплекте

6

6C5-11654-00-00

Болт шатуна

Болт шатуна

7

6CJ-11656-30-00

Plane Bearing, Conne Ur Green

Plane Bearing, Conne Ur Green

7

6CJ-11656-20-00

Plane Bearing, Conne Ur Pink

Plane Bearing, Conne Ur Pink

7

6CJ-11656-10-00

Plane Bearing, Conne Ur Red

Plane Bearing, Conne Ur Red

7

6CJ-11656-00-00

Plane Bearing, Conne Ur Yellow

Plane Bearing, Conne Ur Yellow

8

62Y-11631-10-96

Поршень (стд.)

Поршень (стд.)

8

62Y-11636-10-00

Piston (0.50mm O/s) (0.50mm O/s) Ap

Piston (0.50mm O/s) (0.50mm O/s) Ap

8

62Y-11635-10-00

Piston (0.25mm O/s) (0.25mm O/s) Ap

Piston (0.25mm O/s) (0.25mm O/s) Ap

9

64J-11604-01-00

Piston Ring Set (0.2 (0.25mm O/s) Ap

Piston Ring Set (0.2 (0.25mm O/s) Ap

9

64J-11605-01-00

Piston Ring Set (0.5 (0.50mm O/s) Ap

Piston Ring Set (0.5 (0.50mm O/s) Ap

9

64J-11603-01-00

Piston Ring Set (std (std)

Piston Ring Set (std (std)

10

62Y-11633-00-00

ПАЛЕЦ ПОРШНЕВОЙ

ПАЛЕЦ ПОРШНЕВОЙ

11

Circlip, Inner (5 Per Pack)

Circlip, Inner (5 Per Pack)
