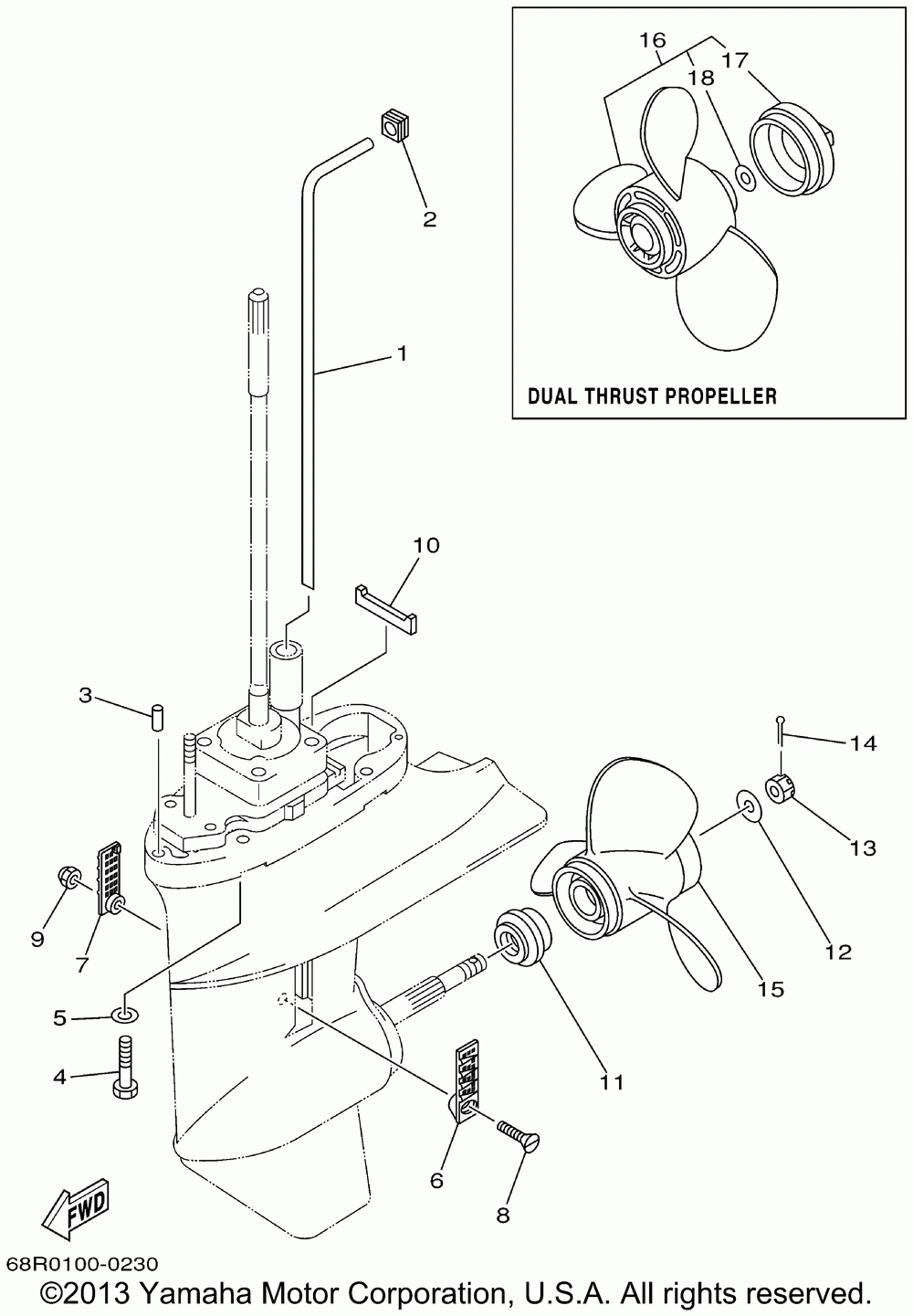

Корпус редуктора 2

Yamaha F6MLHA/F8MSHA/F8MLHA/F6MSHA
Yamaha
#oem кодцена
1
68T-44361-00-00
Tube, Water Ur S(mh)
1
68T-44361-10-00
Tube, Water Ur L(mh)
2
63V-44365-10-00
Water Seal (mh)
3
93604-10M03-00
Pin, Dowel (mh) (5 Per Pack)
4
97095-08035-00
Bolt (mh)
5
92990-08600-00
Washer (mh) (5 Per Pack)
6
6G1-45214-00-00
Cover, Wtr.inlet (mh)
7
6G1-45215-00-00
Cover, Water Inlet (mh)
8
90152-05M03-00
Screw, Countersunk (mh)
9
90185-05904-00
Nut, Self-locking (mh)
10
63V-45375-00-00
Seal, Rubber (mh)
11
6G1-45987-02-00
Spacer 1 (mh)
12
90201-10M01-00
Washer, Plate (mh)
13
90171-10M01-00
Nut, Castle (mh)
14
91490-30020-00
Pin, Cotter (mh)
15
6G1-45943-00-00
Propeller (3x8-1/2 X (3x8-1/2"x7-1/2"-n) Ur(mh)
15
6G1-45952-00-00
Propeller (3x8-1/2 X (3x8-1/2"x8"-n) Ur(mh)
15
6G1-45947-00-00
Propeller (3x8-1/2"x (3x8-1/2"x6-1/2"-n) Ur(mh)
15
6G1-45941-00-00
Propeller (3x8-1/2"x (3x8-1/2"x8-1/2"-n) Ur(mh)
16
6G1-W4591-01-00
Prop. Dual Thrust (3x9"x7"-n) Ur Dual Thrust Prop.(mh)
17
6G1-45616-01-00
Nut, Propeller (mh)
18
90201-10M02-00
Washer, Plate (mh)
