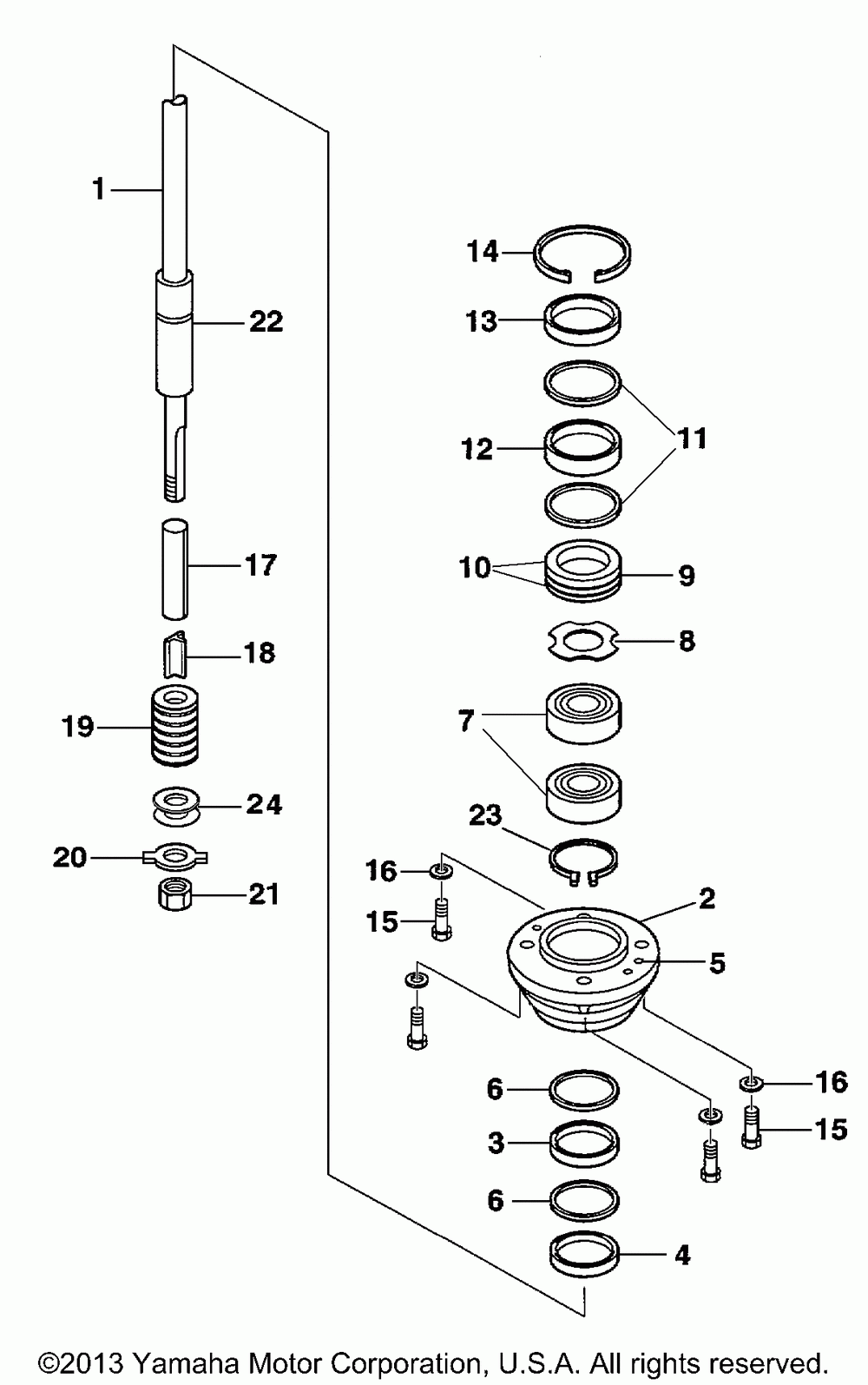

Drive 1 f80 90

Yamaha F80TJRA-PU
Yamaha
#oem кодцена
1
67F-JD001-56-20
Driveshaft
1
67F-JD001-56-31
Driveshaft Assy W/br
2
6H1-JD003-93-05
Bearing Carr Assy 5/
3
6H4-JD005-06-00
Shaft Seal N472324 (n472324)
4
6H4-JD005-07-00
Shaft Seal, N6324s (n6324s)
5
6H4-JD005-21-00
O-ring-011
6
6H4-JD005-17-00
Retng.ring Spirolx
7
6H1-JD005-02-00
Bearing, Sng. Row (u7305b-ua)
8
6H1-JD004-04-00
Back-up Washer Dbl
9
6H1-JD004-32-00
Up Seal Carr.w/sls
10
6H1-JD005-27-00
Уплотнительное кольцо
11
6H4-JD005-17-00
Retng.ring Spirolx
12
6H4-JD005-06-00
Shaft Seal N472324 (n472324)
13
6H4-JD005-07-00
Shaft Seal, N6324s (n6324s)
14
6H1-JD005-13-00
Retaining Ring Tru
15
6H1-JD006-02-01
Bolt, 5/16-18 1"
16
6H4-JD006-40-00
Washer, Spr.loc5/16
17
6H1-JD001-36-00
Shaft Sleeve, Implr
18
6H1-JD004-34-00
Tee Key
19
6H1-JD001-21-00
Shim Washer
20
6H1-JD007-81-00
Nut Keeper
21
6H1-JD001-22-10
Nut, Driveshaft
22
6H4-JD000-41-00
Shft.bear.thr.ring
23
6H4-JD005-11-00
Стопорное кольцо
24
67F-JD001-71-90
Torsional Damper Kit
25
67F-JD004-62-02
Snap, Seal & O-ring Not Shown
