Карбюратор Каталог оригинальных запчастей для лодочных моторов Yamaha T25TLRA (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Yamaha
2002
T25TLRA
Карбюратор
Карбюратор

Карбюратор

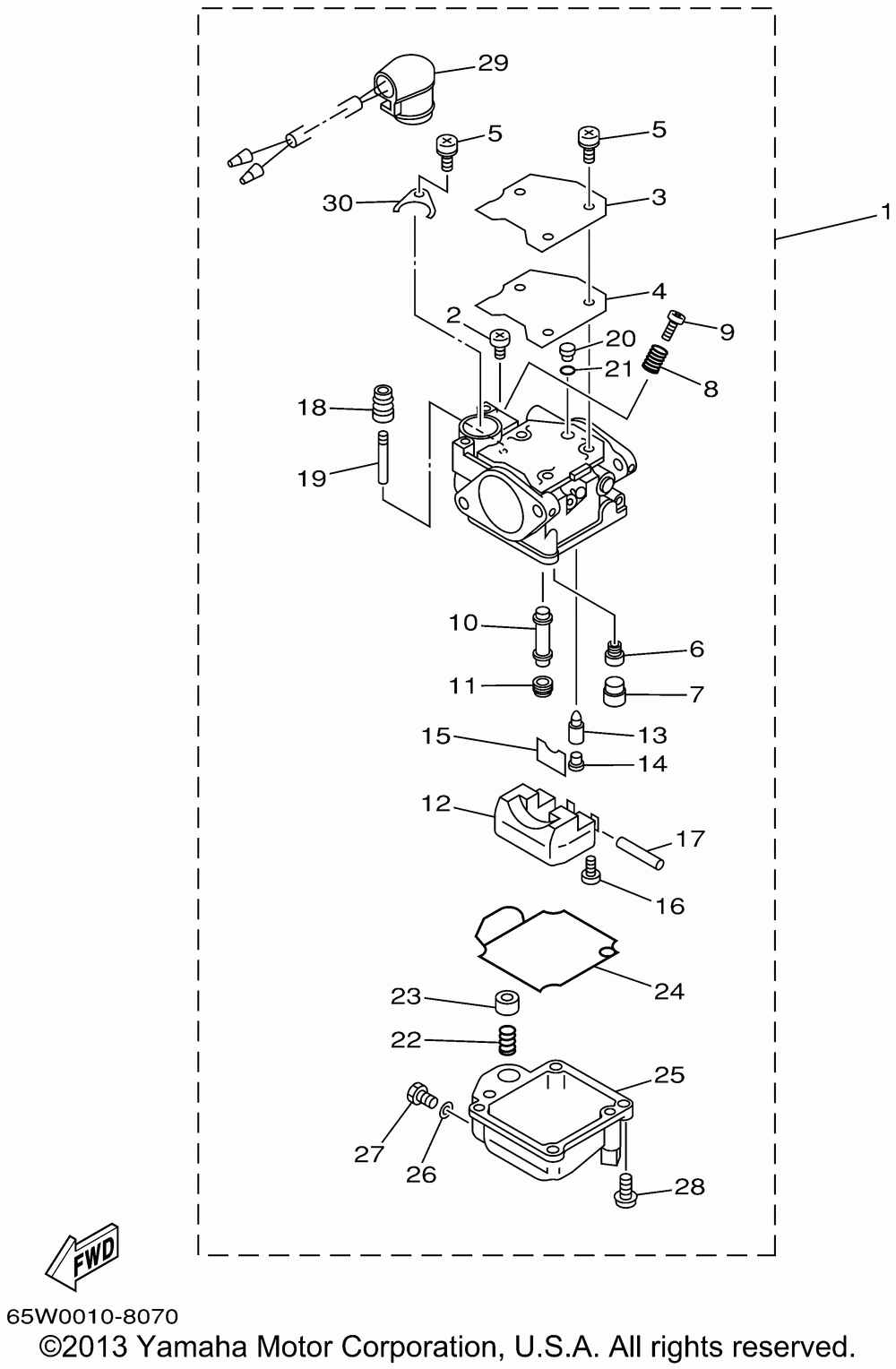

Yamaha T25TLRA

Карбюратор

#

oem код

название

цена

1

65W-14901-12-00

Carburetor Assy 1 (tr)

Carburetor Assy 1 (tr)

2

Screw, Pan Head (tr)

Screw, Pan Head (tr)

2

Screw, Pan Head (tr)

Screw, Pan Head (tr)

3

65W-14572-00-00

Plate (tr)

Plate (tr)

3

65W-14572-00-00

Plate (tr)

Plate (tr)

4

65W-14126-00-00

Gasket (tr)

Gasket (tr)

4

65W-14126-00-00

Gasket (tr)

Gasket (tr)

5

Screw, Pan Head (tr)

Screw, Pan Head (tr)

5

Screw, Pan Head (tr)

Screw, Pan Head (tr)

6

676-14948-07-00

Jet (#50) (#50) (tr)

Jet (#50) (#50) (tr)

6

676-14948-07-00

Jet (#50) (#50) (tr)

Jet (#50) (#50) (tr)

7

679-14966-00-00

Rubber Cap (tr)

Rubber Cap (tr)

7

679-14966-00-00

Rubber Cap (tr)

Rubber Cap (tr)

8

Spring, Compression (tr)

Spring, Compression (tr)

8

Spring, Compression (tr)

Spring, Compression (tr)

9

63V-14523-00-00

Screw, Stop (tr)

Screw, Stop (tr)

9

63V-14523-00-00

Screw, Stop (tr)

Screw, Stop (tr)

10

65W-14947-00-00

Jet, Needle (tr)

Jet, Needle (tr)

10

65W-14947-00-00

Jet, Needle (tr)

Jet, Needle (tr)

11

65W-14943-29-00

Jet, Main (#110) (#112) (tr)

Jet, Main (#110) (#112) (tr)

11

65W-14943-29-00

Jet, Main (#110) (#112) (tr)

Jet, Main (#110) (#112) (tr)

12

63V-14985-00-00

Float (tr)

Float (tr)

12

63V-14985-00-00

Float (tr)

Float (tr)

13

6G1-14546-01-00

Valve, Needle (tr)

Valve, Needle (tr)

13

6G1-14546-01-00

Valve, Needle (tr)

Valve, Needle (tr)

14

676-14186-00-00

Pin, Float (tr)

Pin, Float (tr)

14

676-14186-00-00

Pin, Float (tr)

Pin, Float (tr)

15

633-14159-00-00

Clip (tr)

Clip (tr)

15

633-14159-00-00

Clip (tr)

Clip (tr)

16

Screw, Pan Head (tr)

Screw, Pan Head (tr)

16

Screw, Pan Head (tr)

Screw, Pan Head (tr)

17

6H4-14548-00-00

Pin, Float Arm (tr)

Pin, Float Arm (tr)

17

6H4-14548-00-00

Pin, Float Arm (tr)

Pin, Float Arm (tr)

18

65W-14373-01-00

Cover, Plunger Cap (tr)

Cover, Plunger Cap (tr)

18

65W-14373-01-00

Cover, Plunger Cap (tr)

Cover, Plunger Cap (tr)

19

65W-14379-00-00

Rod, Starter (tr)

Rod, Starter (tr)

19

65W-14379-00-00

Rod, Starter (tr)

Rod, Starter (tr)

20

65W-1414F-00-00

Jet, Pilot (# 52) (#52) (tr)

Jet, Pilot (# 52) (#52) (tr)

21

65W-14147-00-00

O-ring (tr)

O-ring (tr)

21

65W-14147-00-00

O-ring (tr)

O-ring (tr)

22

65W-14335-00-00

Spring, Plunger (tr)

Spring, Plunger (tr)

22

65W-14335-00-00

Spring, Plunger (tr)

Spring, Plunger (tr)

23

65W-14371-00-00

Plunger, Starter (tr)

Plunger, Starter (tr)

23

65W-14371-00-00

Plunger, Starter (tr)

Plunger, Starter (tr)

24

65W-14384-00-00

Gasket, Float Cham (tr)

Gasket, Float Cham (tr)

24

65W-14384-00-00

Gasket, Float Cham (tr)

Gasket, Float Cham (tr)

25

65W-14980-00-00

Body, Float Chambe (tr)

Body, Float Chambe (tr)

25

65W-14980-00-00

Body, Float Chambe (tr)

Body, Float Chambe (tr)

26

6G1-14398-00-00

Washer (tr)

Washer (tr)

26

6G1-14398-00-00

Washer (tr)

Washer (tr)

27

65W-14992-00-00

Screw, Drain (tr)

Screw, Drain (tr)

27

65W-14992-00-00

Screw, Drain (tr)

Screw, Drain (tr)

28

Screw, W/washer (tr)

Screw, W/washer (tr)

28

Screw, W/washer (tr)

Screw, W/washer (tr)

29

65W-14380-00-00

Prime Starter Assy (tr)

Prime Starter Assy (tr)

29

65W-14380-00-00

Prime Starter Assy (tr)

Prime Starter Assy (tr)

30

65W-14346-00-00

Plate (tr)

Plate (tr)

30

65W-14346-00-00

Plate (tr)

Plate (tr)
