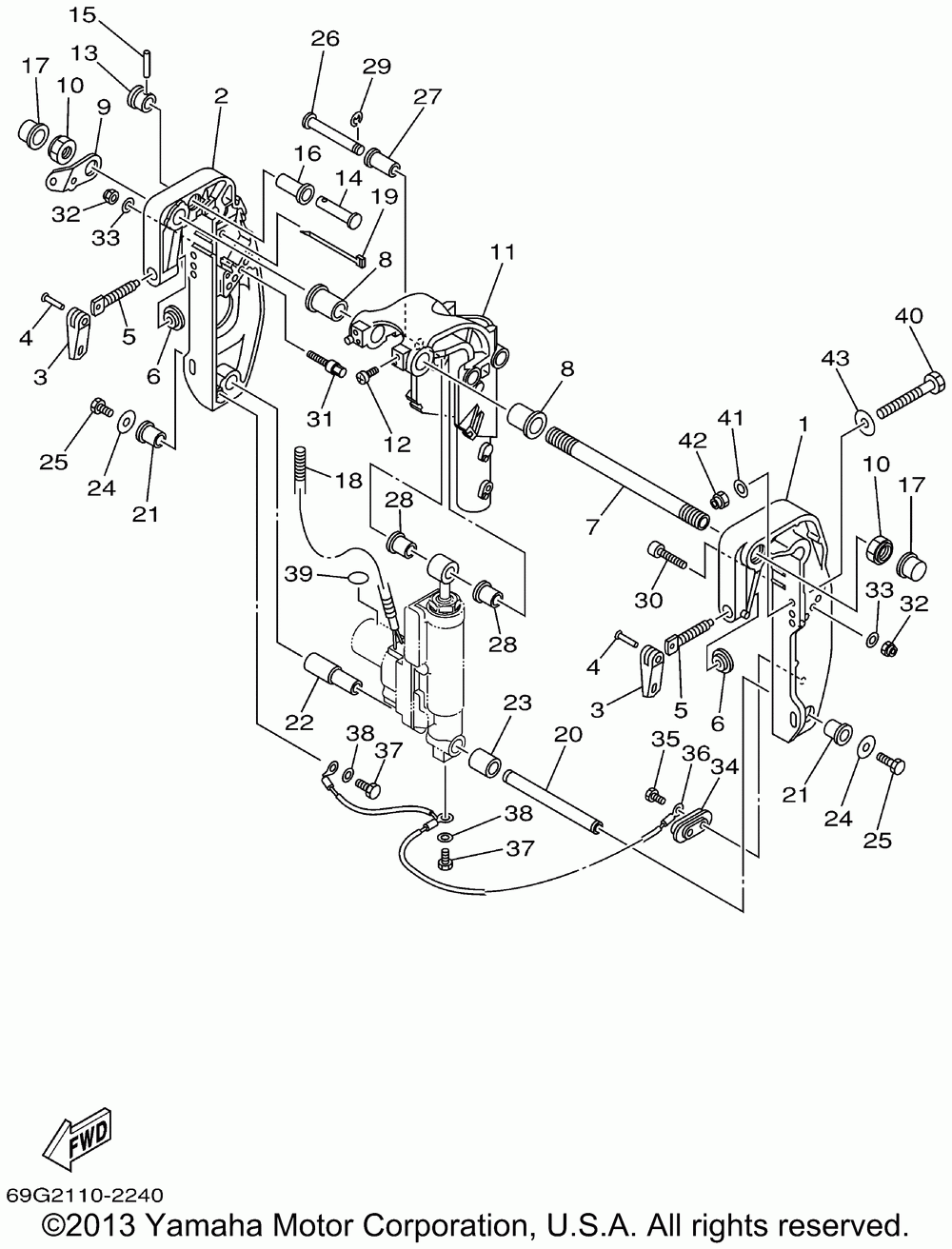

Bracket 2 (for ph / pr)

Yamaha T8PLHA/T8ELHA/T8PXHA/T8EXHA/T8PLRA/T8PXRA
Yamaha
#oem кодцена
1
69A-43111-01-4D
Bracket, Clamp 1 (ph/r)
2
69A-43112-01-4D
Bracket, Clamp 2 (ph/r)
3
6E0-43118-01-00
Handle, Transom Clp (ph/r)
4
90243-04M01-00
Pin (ph/r)
5
6L2-43116-00-00
Screw, Transom Clam (ph/r)
6
648-43114-01-00
Pad, Transom Clamp (ph/r)
7
69A-43131-00-00
Bolt, Clamp Bracket (ph/r)
8
90386-22MA4-00
Bush (ph/r)
9
69A-43113-00-00
Plate, Clamp Bracket (ph/r)
10
90185-22007-00
Nut, Self-locking (ph/r)
11
69G-43311-11-4D
Bracket, Swivel 1 (ph/r)
12
97885-08010-00
Screw, Pan Head (ph/r)
13
65W-43192-00-00
Knob, Stopper (ph/r)
14
65W-43191-00-00
Shaft, Stopper (ph/r)
15
91690-30018-00
Pin, Spring (ph/r)
16
90386-14MA1-00
Bush (ph/r)
17
6G5-43145-01-00
Cap, Clamp Bracket (ph/r)
18
90447-10001-00
Hose, With Spring (ph/r)
19
90465-13M97-00
Clamp (ph/r)
20
69G-43818-00-00
Pin, Lower Shock Mou (ph/r)
21
90386-16MA7-00
Bush (ph/r)
22
90386-16MA8-00
Bush (ph/r)
23
90387-16M02-00
Collar (ph/r)
24
90201-08M03-00
Washer, Plate (ph/r)
25
97080-08016-00
Bolt (ph/r)
26
90249-12M38-00
Pin (ph/r)
27
90381-12M10-00
Bush, Solid (ph/r)
28
90381-12M11-00
Bush, Solid (ph/r)
29
99080-10600-00
Circlip (ph/r)
30
90110-08M05-00
Bolt, Hexagon Socket (ph/r)
31
90109-08010-00
Bolt (ph/r)
32
95780-08300-00
Nut Self-locking (ph/r)
33
92990-08600-00
Washer (ph/r) (5 Per Pack)
34
65W-45251-00-00
Anode (ph/r)
35
90101-06020-00
Bolt (ph/r)
36
63V-82127-00-00
Wire, Lead 2 (ph/r)
37
97085-06010-00
Bolt (ph/r)
38
92990-06600-00
Washer (ph/r) (5 Per Pack)
39
69A-43155-00-00
Mark 1 (ph/r)
40
90101-08M88-00
Bolt (ph/r)
41
92990-08600-00
Washer (ph/r) (5 Per Pack)
42
95780-08300-00
Nut Self-locking (ph/r)
43
90201-08MA4-00
Washer (ph/r)
