Power tilt assy Каталог оригинальных запчастей для лодочных моторов Yamaha T8PLHA/T8ELHA/T8PXHA/T8EXHA/T8PLRA/T8PXRA (2002)

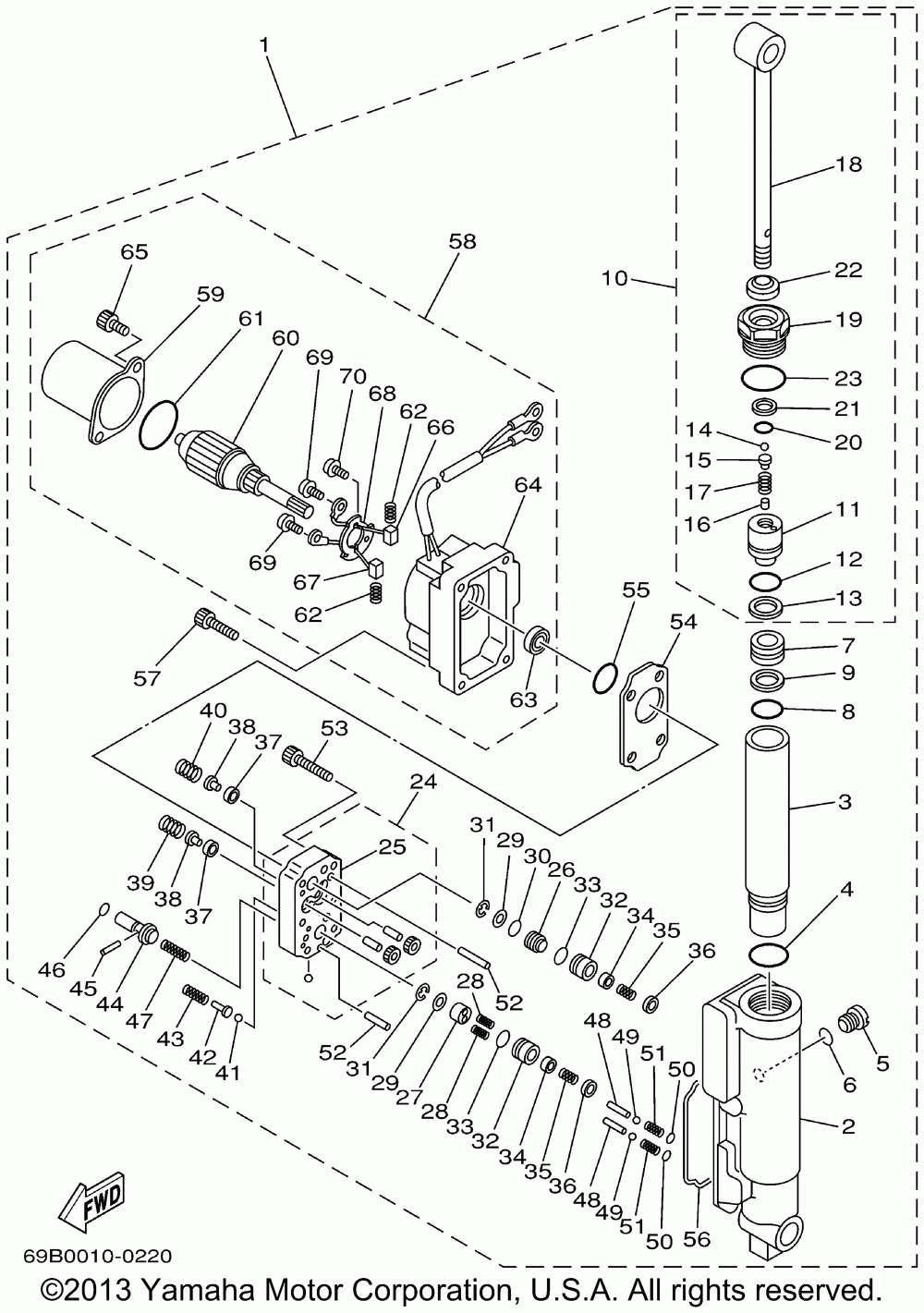

Power tilt assy

Yamaha T8PLHA/T8ELHA/T8PXHA/T8EXHA/T8PLRA/T8PXRA

oem код

название

цена

69G-43840-02-4D

Power Tilt Assy Ph/pr (ph/r)

69G-43840-02-4D

Power Tilt Assy Ph/pr (ph/r)

69A-4380K-00-00

Cylinder, Tilt Sub A (ph/r)

69A-4380K-00-00

Cylinder, Tilt Sub A (ph/r)

69A-22471-00-00

Case, Cylinder (ph/r)

69A-22471-00-00

Case, Cylinder (ph/r)

93210-27666-00

O-ring (ph/r) (5 Per Pack)

93210-27666-00

O-ring (ph/r) (5 Per Pack)

6H1-4388E-11-00

Plug, Tapper Screw (ph/r)

6H1-4388E-11-00

Plug, Tapper Screw (ph/r)

O-ring (ph/r)

O-ring (ph/r)

Piston, Free (ph/r)

Piston, Free (ph/r)

O-ring (ph/r)

O-ring (ph/r)

Ring, Back Up (ph/r)

Ring, Back Up (ph/r)

Piston Sub Assy (ph/r)

69A-43810-00-00

Piston Sub Assy (ph/r)

Piston Comp. (ph/r)

Piston Comp. (ph/r)

O-ring (ph/r)

O-ring (ph/r)

Ring, Back Up (ph/r)

Ring, Back Up (ph/r)

Ball (ph/r)

Ball (ph/r)

Pin, Absorber Valve (ph/r)

65W-4386A-00-00

Pin, Absorber Valve (ph/r)

93604-06136-00

Pin, Dowel (ph/r)

93604-06136-00

Pin, Dowel (ph/r)

69A-43857-00-00

Spring, Absorber Val (ph/r)

69A-43857-00-00

Spring, Absorber Val (ph/r)

69A-43801-00-00

Rod (ph/r)

69A-43801-00-00

Rod (ph/r)

69A-43811-01-00

Screw, Cylinder End (ph/r)

69A-43811-01-00

Screw, Cylinder End (ph/r)

O-ring (ph/r)

O-ring (ph/r)

Ring, Back Up (ph/r)

Ring, Back Up (ph/r)

Seal, Dust (ph/r)

Seal, Dust (ph/r)

O-ring (ph/r)

O-ring (ph/r)

Gear Pump Assy (ph/r)

69A-43830-00-00

Gear Pump Assy (ph/r)

69A-4380C-00-00

Gear Housing Assy (ph/r)

69A-4380C-00-00

Gear Housing Assy (ph/r)

69A-43841-00-00

Piston, Shuttle (ph/r)

69A-43841-00-00

Piston, Shuttle (ph/r)

69A-4384M-00-00

Piston, Shuttle 2 (ph/r)

69A-4384M-00-00

Piston, Shuttle 2 (ph/r)

62Y-43894-00-00

Spring, Shuttle Retu (ph/r)

62Y-43894-00-00

Spring, Shuttle Retu (ph/r)

69A-4384F-00-00

Seal, Main Valve (ph/r)

69A-4384F-00-00

Seal, Main Valve (ph/r)

O-ring (ph/r)

Circlip (6l5) (ph/r)

Circlip (6l5) (ph/r)

Valve Seat (ph/r)

Valve Seat (ph/r)

O-ring (ph/r)

O-ring (ph/r)

Seat Valve Comp. 1 (ph/r)

6T4-43808-00-00

Seat Valve Comp. 1 (ph/r)

6T4-43853-00-00

Spring, Main Valve (ph/r)

6T4-43853-00-00

Spring, Main Valve (ph/r)

6H1-43816-00-00

Filter 1 (ph/r)

6H1-43816-00-00

Filter 1 (ph/r)

6H1-4384G-11-00

Seal, Relief Valve (ph/r)

6H1-4384G-11-00

Seal, Relief Valve (ph/r)

6H1-43844-10-00

Pin, Valve Support (ph/r)

6H1-43844-10-00

Pin, Valve Support (ph/r)

69A-43855-00-00

Spring, Up Relief (ph/r)

69A-43855-00-00

Spring, Up Relief (ph/r)

6H1-43856-10-00

Spring, Down Relief (ph/r)

6H1-43856-10-00

Spring, Down Relief (ph/r)

93501-08001-00

Ball 1/8 (ph/r)

93501-08001-00

Ball 1/8 (ph/r)

69A-4386A-00-00

Pin, Absorber Valve (ph/r)

69A-4386A-00-00

Pin, Absorber Valve (ph/r)

69A-43824-00-00

Spring, Down Relief (ph/r)

69A-43824-00-00

Spring, Down Relief (ph/r)

69A-43848-00-00

Rod, Manual Release (ph/r)

69A-43848-00-00

Rod, Manual Release (ph/r)

Pin, Dowel (ph/r)

Pin, Dowel (ph/r)

O-ring (ph/r)

O-ring (ph/r)

Spring, Manual Relea (ph/r)

69A-43854-00-00

Spring, Manual Relea (ph/r)

Pin 1 (ph/r)

Pin 1 (ph/r)

Ball 1/8 (ph/r)

Ball 1/8 (ph/r)

O-ring (ph/r)

O-ring (ph/r)

Spring (ph/r)

Spring (ph/r)

Pin, Dowel (ph/r)

Pin, Dowel (ph/r)

Bolt, Socket Head (ph/r)

91317-05025-00

Bolt, Socket Head (ph/r)

Filter 1 (ph/r)

Filter 1 (ph/r)

O-ring (ph/r)

O-ring (ph/r)

Gasket, Drain Plug (ph/r)

69A-23129-00-00

Gasket, Drain Plug (ph/r)

Bolt, Socket (ph/r)

Bolt, Socket (ph/r)

Motor Assy (ph/r)

Motor Assy (ph/r)

Stator Assy (ph/r)

Stator Assy (ph/r)

Armature Assy (ph/r)

Armature Assy (ph/r)

O-ring (ph/r)

O-ring (ph/r)

Spring, Brush (ph/r)

Oil Seal (ph/r)

Oil Seal (ph/r)

Frame, End (ph/r)

Frame, End (ph/r)

Bolt (ph/r)

Bolt (ph/r)

Brush 2 (ph/r)

Brush 2 (ph/r)

Brush 1 (ph/r)

Brush 1 (ph/r)

Plate, Brush Holder (ph/r)

65W-4380F-00-00

Plate, Brush Holder (ph/r)

65W-43879-00-00

Screw, W/washer (ph/r)

65W-43879-00-00

Screw, W/washer (ph/r)

65W-4388E-00-00

Bolt (ph/r)

65W-4388E-00-00

Bolt (ph/r)
