Стартер Каталог оригинальных запчастей для лодочных моторов Yamaha T8PLHA/T8ELHA/T8PXHA/T8EXHA/T8PLRA/T8PXRA (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

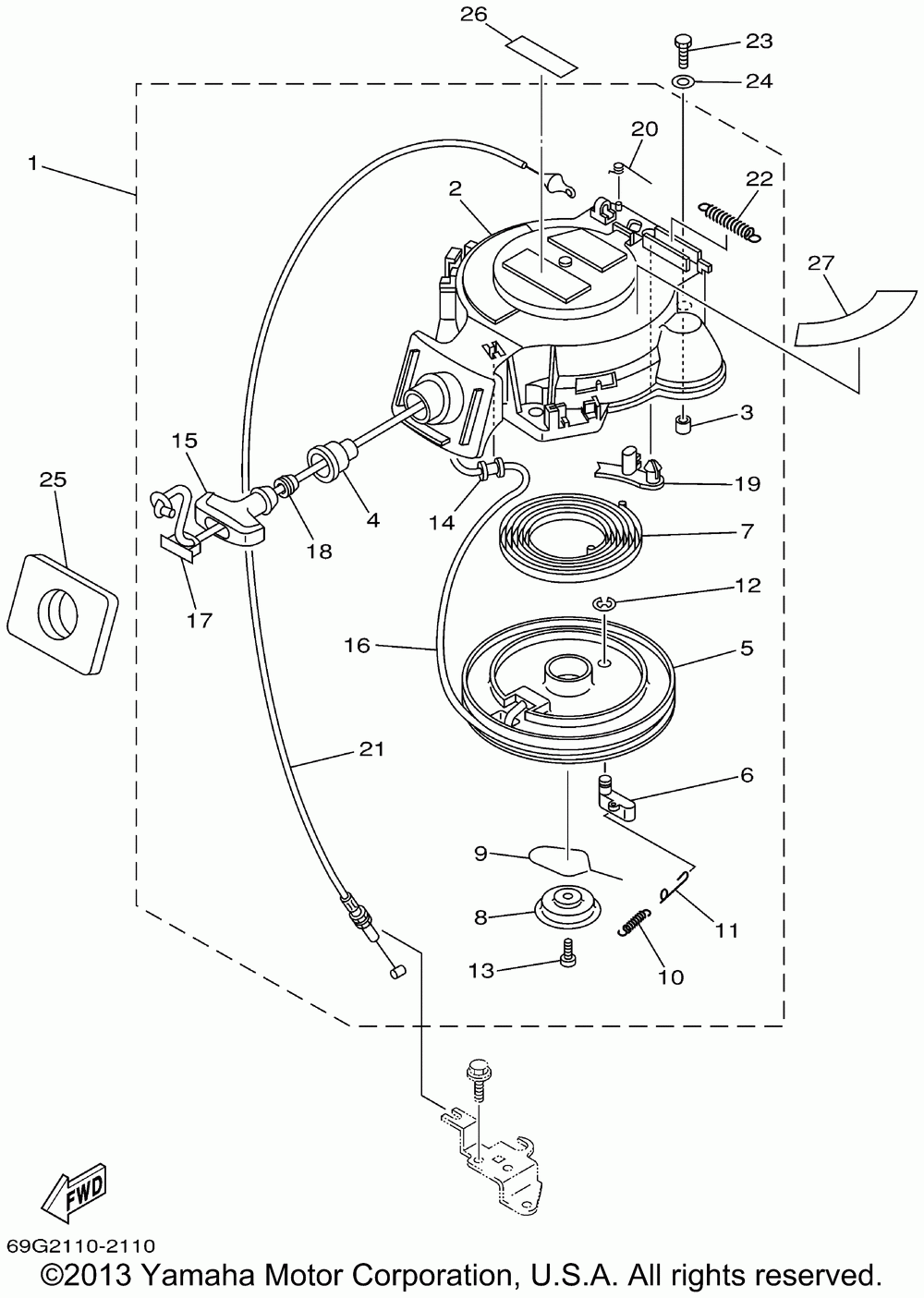

Стартер

Yamaha T8PLHA/T8ELHA/T8PXHA/T8EXHA/T8PLRA/T8PXRA

Стартер

#

oem код

название

цена

1

68T-15710-13-00

Starter Assy Eh(eh)

Starter Assy Eh(eh)

2

68T-15711-01-00

Case, Starter (eh)

Case, Starter (eh)

3

67D-15764-00-00

Collar 1 (eh)

Collar 1 (eh)

4

68T-15795-00-00

Guide, Rope (eh)

Guide, Rope (eh)

5

63V-15714-00-00

Drum, Sheave (eh)

Drum, Sheave (eh)

6

63V-15741-00-00

Pawl, Drive (eh)

Pawl, Drive (eh)

7

63V-15713-00-00

Spring, Starter (eh)

Spring, Starter (eh)

8

68T-15716-00-00

Plate, Drive (eh)

Plate, Drive (eh)

9

63V-15705-01-00

Spring, Drive Pawl (eh)

Spring, Drive Pawl (eh)

10

63V-15767-01-00

Spring (eh)

Spring (eh)

11

68T-15784-00-00

Spring, Return (eh)

Spring, Return (eh)

12

63V-15744-00-00

Circlip (eh)

Circlip (eh)

13

68T-15793-00-00

Screw (eh)

Screw (eh)

14

68T-15764-00-00

Collar 1 (eh)

Collar 1 (eh)

15

6G1-15755-00-00

Handle, Starter (eh)

Handle, Starter (eh)

16

Starter Rope (eh)

Starter Rope (eh)

17

6G1-15779-00-00

Cover (eh)

Cover (eh)

18

6A0-15789-00-00

Damper (eh)

Damper (eh)

19

66T-15794-00-00

Stopper (eh)

Stopper (eh)

20

66T-15734-00-00

Spring, Return (eh)

Spring, Return (eh)

21

68T-15770-00-00

Cable Comp., Starter (eh)

Cable Comp., Starter (eh)

22

66T-15731-00-00

Spring, Return (eh)

Spring, Return (eh)

23

Bolt(7u8) Eh(eh) (5 Per Pack)

Bolt(7u8) Eh(eh) (5 Per Pack)

24

Washer Eh(eh) (5 Per Pack)

Washer Eh(eh) (5 Per Pack)

25

68T-15762-00-00

Seal, Rubber 2 Eh(eh)

Seal, Rubber 2 Eh(eh)

26

6A1-83625-41-00

Mark 5 Eh(eh)

Mark 5 Eh(eh)

27

68T-85711-40-00

Mark, Caution Eh(eh)

Mark, Caution Eh(eh)
