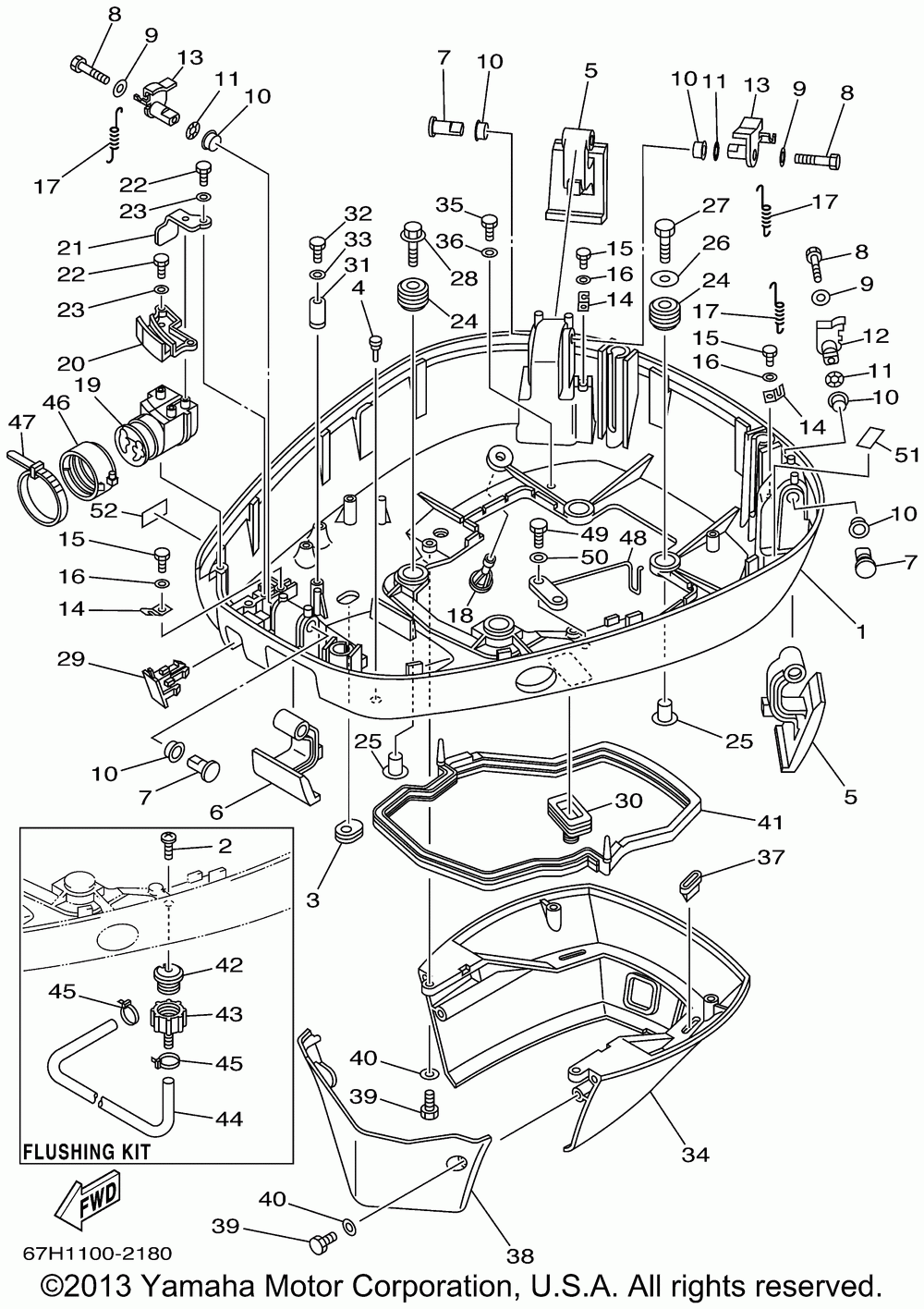

Нижний обтекатель Каталог оригинальных запчастей для лодочных моторов Yamaha VX150TLRA (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Yamaha
2002
VX150TLRA
Нижний обтекатель
Нижний обтекатель

Нижний обтекатель

Yamaha VX150TLRA

Нижний обтекатель

#

oem код

название

цена

1

64D-42711-01-8D

Cowling, Bottom (67m1)

Cowling, Bottom (67m1)

2

Screw Truss Head Flushing Kit(67m1)

Screw Truss Head Flushing Kit(67m1)

3

61A-42727-00-00

Grommet 4 (67m1)

Grommet 4 (67m1)

4

6H4-42748-00-00

Grommet (67m1)

Grommet (67m1)

5

64D-42815-00-8D

Lever, Clamp (67m1)

Lever, Clamp (67m1)

6

64D-42816-00-8D

Lever, Clamp 2 (67m1)

Lever, Clamp 2 (67m1)

7

64D-42835-00-00

Pin, Set 1 (67m1)

Pin, Set 1 (67m1)

8

Bolt (682) (67m1) (5 Per Pack)

Bolt (682) (67m1) (5 Per Pack)

9

Washer, Plate (67m1)

Washer, Plate (67m1)

10

Bush, Spec'l Nylon (67m1)

Bush, Spec'l Nylon (67m1)

11

Washer, Wave (67m1)

Washer, Wave (67m1)

12

64D-42818-20-00

Lever Clamp 4 (67m1)

Lever Clamp 4 (67m1)

13

64D-42818-30-00

Lever Clamp 4 (67m1)

Lever Clamp 4 (67m1)

14

64D-43144-00-00

Hook, Spring (67m1)

Hook, Spring (67m1)

15

Bolt (67m1)

Bolt (67m1)

16

Washer (67m1) (5 Per Pack)

Washer (67m1) (5 Per Pack)

17

Spring, Tension (67m1)

Spring, Tension (67m1)

18

6E5-44391-00-00

Nipple, Hose (67m1)

Nipple, Hose (67m1)

19

64D-42725-30-00

Grommet (67m1)

Grommet (67m1)

20

64D-42738-00-8D

Plate, Fitting (67m1)

Plate, Fitting (67m1)

21

64D-42738-11-00

Plate, Fitting (67m1)

Plate, Fitting (67m1)

22

Bolt (ga1) (67m1) (5 Per Pack)

Bolt (ga1) (67m1) (5 Per Pack)

23

Washer (67m1) (5 Per Pack)

Washer (67m1) (5 Per Pack)

24

Grommet (67m1)

Grommet (67m1)

25

Collar (67m1)

Collar (67m1)

26

Washer, Plate (67m1)

Washer, Plate (67m1)

27

Bolt (67m1)

Bolt (67m1)

28

Bolt, With Washer (67m1)

Bolt, With Washer (67m1)

29

67H-42723-00-00

Cover, Bottom (67m1)

Cover, Bottom (67m1)

30

688-42726-10-00

Grommet 3 (67m1)

Grommet 3 (67m1)

31

6E5-82588-00-00

Plate (67m1)

Plate (67m1)

32

Bolt(7u8) (67m1) (5 Per Pack)

Bolt(7u8) (67m1) (5 Per Pack)

33

Washer (67m1) (5 Per Pack)

Washer (67m1) (5 Per Pack)

34

6R3-42741-02-8D

Apron 1 (67m1)

Apron 1 (67m1)

35

Bolt(7u8) (67m1) (5 Per Pack)

Bolt(7u8) (67m1) (5 Per Pack)

36

Washer (67m1) (5 Per Pack)

Washer (67m1) (5 Per Pack)

37

64D-42717-00-00

Seal 2 (67m1)

Seal 2 (67m1)

38

6R3-42771-01-8D

Apron 2 (67m1)

Apron 2 (67m1)

39

Bolt(7u8) (67m1) (5 Per Pack)

Bolt(7u8) (67m1) (5 Per Pack)

40

Washer (67m1) (5 Per Pack)

Washer (67m1) (5 Per Pack)

41

6E5-42716-10-00

Seal, Rubber (67m1)

Seal, Rubber (67m1)

42

6R3-12572-00-00

Adapter Flushing Kit(67m1)

Adapter Flushing Kit(67m1)

43

6R3-12580-00-00

Joint Assy. Flushing Kit(67m1)

Joint Assy. Flushing Kit(67m1)

44

Hose (l540) Flushing Kit(67m1)

Hose (l540) Flushing Kit(67m1)

45

Clamp Flushing Kit(67m1)

Clamp Flushing Kit(67m1)

46

68F-42753-00-00

Fastner (67m1)

Fastner (67m1)

47

Clamp (67m1)

Clamp (67m1)

48

6K7-82588-00-00

Plate (67m1)

Plate (67m1)

49

Bolt(7u8) (67m1) (5 Per Pack)

Bolt(7u8) (67m1) (5 Per Pack)

50

Washer (67m1) (5 Per Pack)

Washer (67m1) (5 Per Pack)

51

6E7-42791-10-00

Mark 1 (67m1)

Mark 1 (67m1)

52

65L-2415E-40-00

Label, Caution (67m1)

Label, Caution (67m1)
