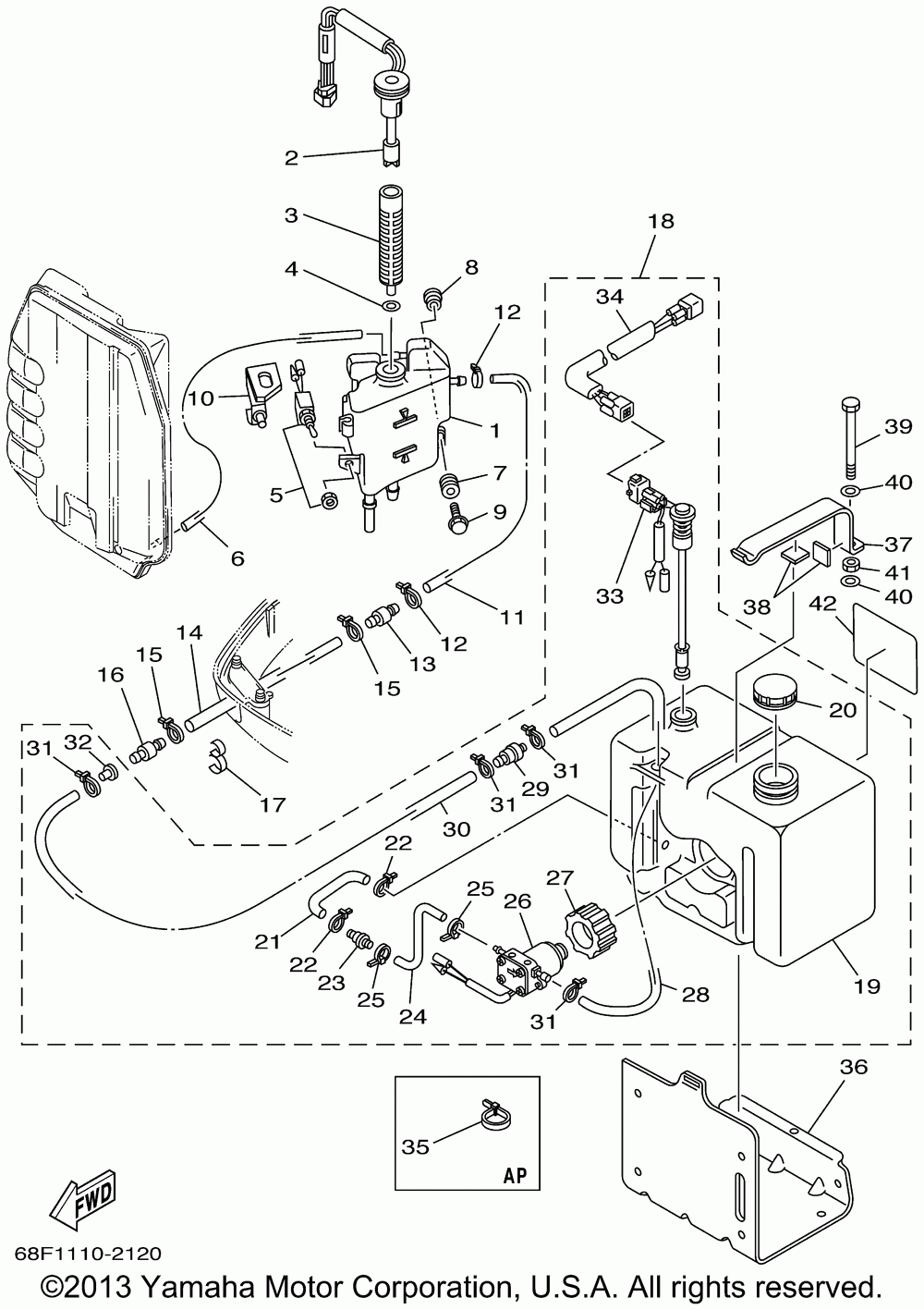

Масляный бак

Yamaha VZ150TLRA/VZ200TLRA/VZ175TLRA
Yamaha
#oem кодцена
1
68F-21750-00-00
Oil Tank Assy (vz)
2
67H-85730-02-00
Oil Level Gauge Assy (vz)
3
6E5-13411-00-00
Strainer, Oil (vz)
4
6E5-13414-00-00
Gasket, Strnr Cover (vz) (5 Per Pack)
5
6R3-8259E-00-00
Switch Assy (vz)
6
90445-07M43-00
Hose (l600) (vz)
7
6A0-82317-00-00
Damper, Ign Coil (vz)
8
90387-06119-00
Collar (vz)
9
90119-06M95-00
Bolt, With Washer (vz)
10
90465-12M92-00
Clamp (vz)
11
6E5-24323-00-00
Pipe 12 (vz)
12
90465-10098-00
Clamp (vz)
13
6E5-24379-00-00
Pipe, Joint (vz)
14
90445-12M05-00
Hose (l2400) (vz)
15
90465-10098-00
Clamp (vz)
16
6E5-24379-00-00
Pipe, Joint (vz)
17
90464-13M34-00
Clamp (vz)
18
6E5-21708-10-00
Sub Oil Tank Assy. Ap(vz)
19
6E5-21733-20-00
Sub Tank, Oil (10.5l (10.5l) (vz)
20
6E5-21770-03-00
Cap Assy, Oil Tank (vz)
21
6E5-24322-00-00
Pipe (vz)
22
90465-10098-00
Clamp (vz)
23
646-24251-02-00
Strainer 1 (vz)
24
6E5-24319-01-00
Pipe, Oil (vz)
25
90465-10098-00
Clamp (vz)
26
6E5-81900-01-00
Motor Pump Assy (vz)
27
6E5-81922-00-00
Grommet (vz)
28
6E5-24321-01-00
Pipe 10 (vz)
29
6E5-24379-00-00
Pipe, Joint (vz)
30
90445-11M81-00
Hose (l3000) For 6e5-21708-08(vz)
31
90465-10098-00
Clamp (vz)
32
90480-06M19-00
Grommet (vz)
33
6E5-85720-06-00
Oil Level Gauge Assy (vz)
34
6R3-85721-30-00
Oil, Trim, Ext., 9.8 (l=3.0m) For 6e5-21708-08(vz)
35
90465-13M11-00
Clamp Ap(vz)
36
6E5-21734-01-33
Hldr, Oil Sub Tank Ap(vz)
37
6E5-21798-01-33
Bracket, Damper Ap(vz)
38
6E5-21746-00-00
Damper Ap(vz)
39
97080-06100-00
Bolt Ap(vz)
40
92990-06600-00
Washer Ap(vz) (5 Per Pack)
41
95380-06600-00
Nut Ap(vz) (5 Per Pack)
42
6E5-13437-43-00
Mark, Caution (vz)
