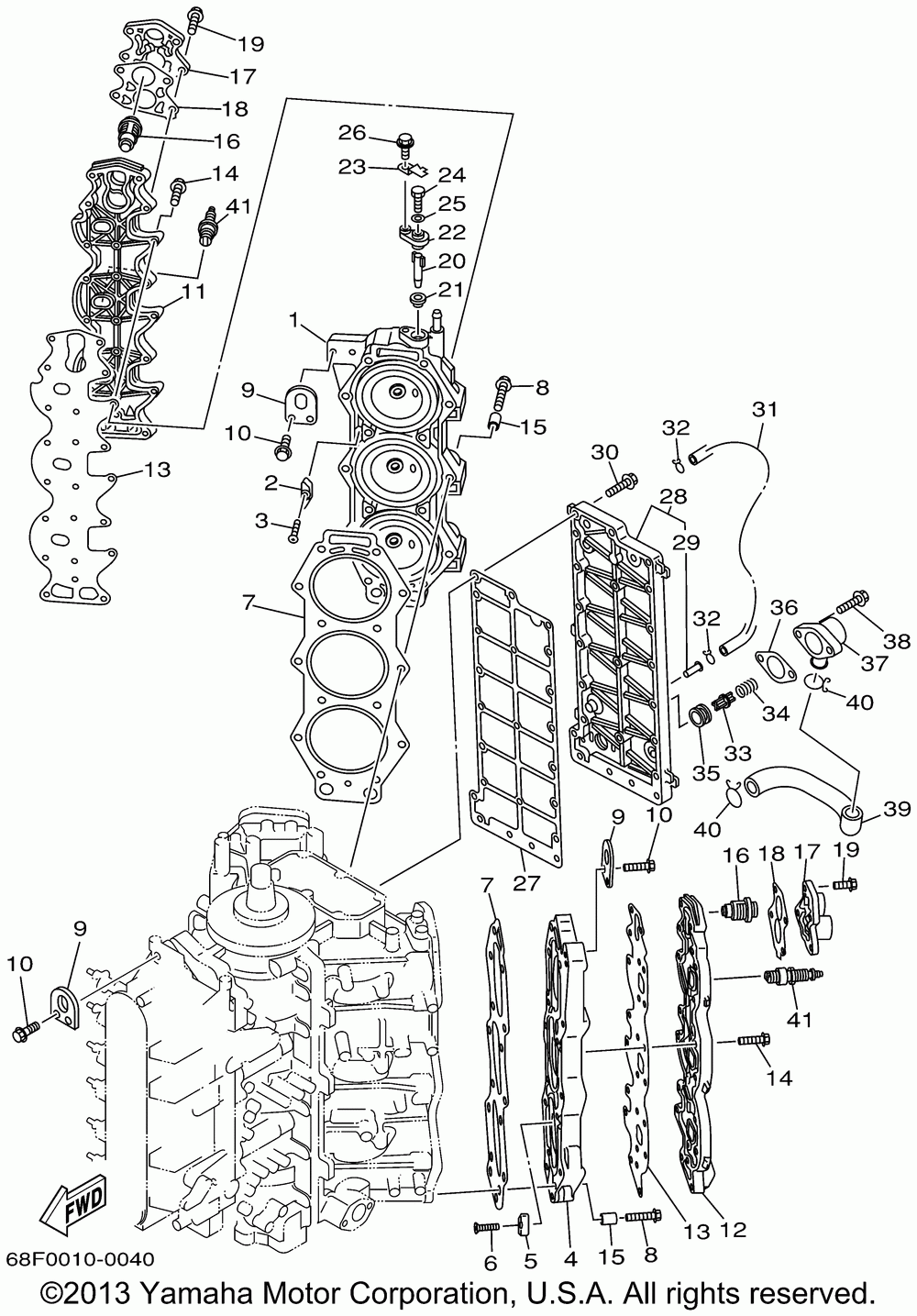

Цилиндр и картер 2

Yamaha VZ150TLRA/VZ200TLRA/VZ175TLRA
Yamaha
#oem кодцена
1
68F-11111-00-94
Head, Cylinder 1 (vz)
2
6E5-11325-00-00
Anode (vz)
3
98780-04014-00
Screw, Flat Head (vz)
4
68F-11121-00-94
Head, Cylinder 2 (vz)
5
6E5-11325-00-00
Anode (vz)
6
98780-04014-00
Screw, Flat Head (vz)
7
68F-11181-00-00
Gasket, Cylinder H (vz)
8
90119-08MA8-00
Bolt, With Washer (vz)
9
68F-11119-00-00
Hanger, Engine (vz)
10
90119-06MA2-00
Bolt, With Washer (vz)
11
68F-11191-00-1S
Cover, Cylinder He (vz)
12
68F-11192-00-1S
Cover, Cylinder He (vz)
13
68F-11193-02-00
Gasket, Head Cover 1 (vz)
14
90119-06MA4-00
Bolt, With Washer (vz)
15
99590-10114-00
Pin, Dowel (vz)
16
6E5-12411-30-00
Thermostat (vz)
17
688-12413-00-1S
Cover, Thermostat (vz)
18
688-12414-A1-00
Gasket, Cover (vz)
19
90119-06MA6-00
Bolt, With Washer (vz)
20
62Y-11325-00-00
Anode (vz)
21
66M-11328-00-00
Grommet, Anode (vz)
22
66M-11327-00-94
Anode Cover (vz)
23
66M-12535-00-00
Plate (vz)
24
97095-05012-00
Bolt (6a4) (vz)
25
92990-05600-00
Washer (vz) (5 Per Pack)
26
90119-06MA2-00
Bolt, With Washer (vz)
27
68F-41114-00-00
Gasket, Exhaust Ou (vz)
28
68F-41113-19-1S
Outer Cover, Exhaust (vz)
29
652-24461-00-00
Pipe, Joint (vz)
30
90119-06MA4-00
Bolt, With Washer (vz)
31
90445-092K1-00
Hose (l600) (vz)
32
90467-08M18-00
Clip (vz)
33
60H-12416-00-00
Valve, Pressure Cont (vz)
34
90501-16M11-00
Spring, Compression (vz)
35
90480-20M05-00
Grommet (vz)
36
6G5-11382-A1-00
Gasket 2 (vz)
37
6G5-11372-00-1S
Cover, Bypass 2 (vz)
38
90119-06MA2-00
Bolt, With Washer (vz)
39
68F-12576-00-00
Hose 1 (vz)
40
90467-23M16-00
Clip (vz)
41
BKR-7EKU1-00-00
Bkr7eku1 Ngk 10 Pack (ngk Bkr7eku) Ur Vz175, Vz200 (vz) (10 Per Pack)
