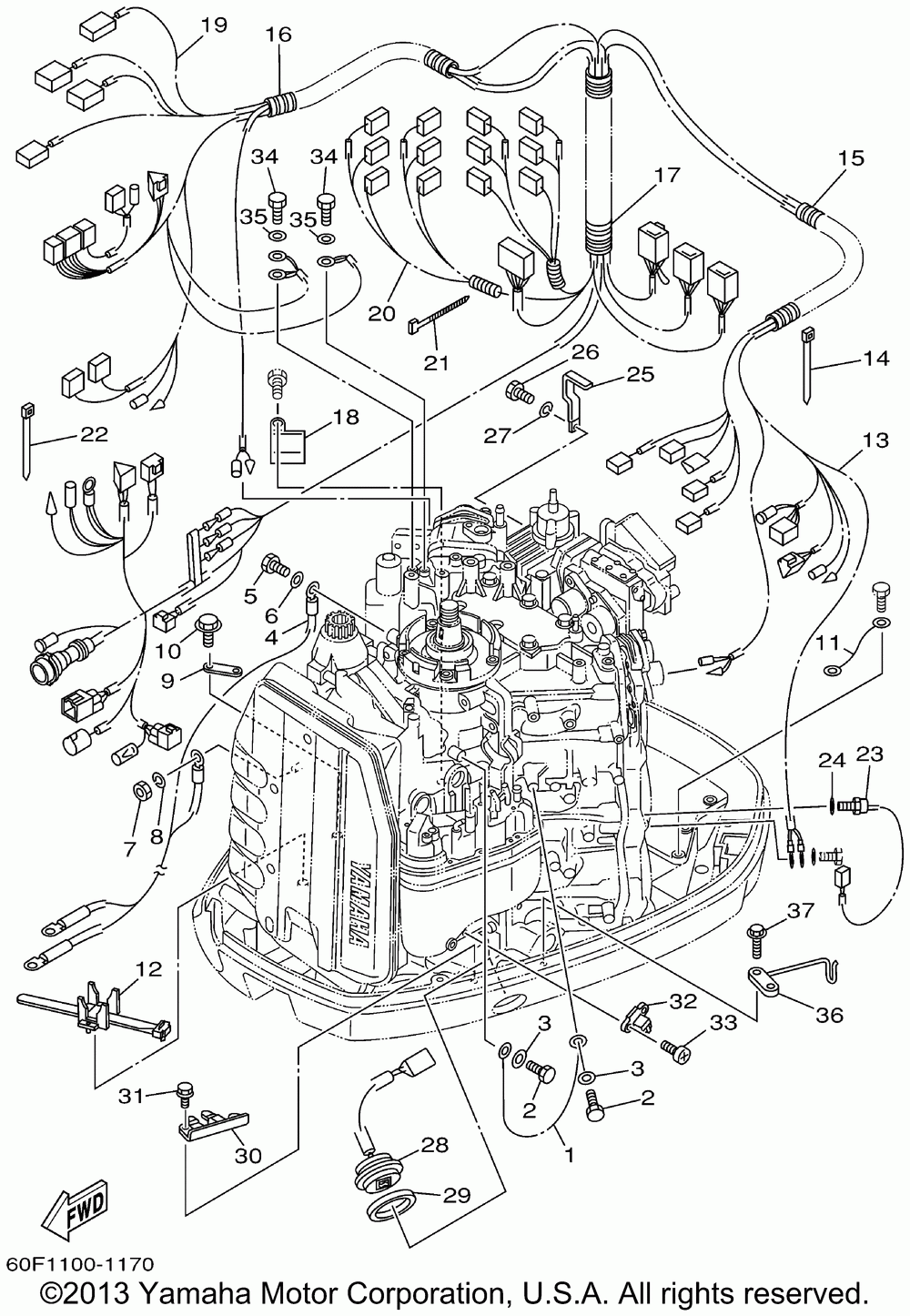

Электрика 2

Yamaha VZ150TLRA/VZ200TLRA/VZ175TLRA
Yamaha
#oem кодцена
1
6H2-81949-11-00
Wire, Lead (vz)
2
97080-06012-00
Bolt (vz)
3
92990-06600-00
Washer (vz) (5 Per Pack)
4
68F-82105-00-00
Battery Cable (vz)
5
97095-08016-00
Bolt (vz)
6
92990-08600-00
Washer (vz) (5 Per Pack)
7
95333-08600-00
Nut (6l2) (vz)
8
92990-08100-00
Washer, Spring (vz)
9
6E5-82588-00-00
Plate (vz)
10
95895-06020-00
Bolt (vz)
11
6E5-82531-10-00
Wire, Lead (vz)
12
688-82594-00-00
Clamp (vz)
13
68F-82590-20-00
Wire Harness Assy (vz)
14
90465-11M52-00
Clamp (vz)
15
90446-24MF6-00
Hose (vz)
16
90446-24MF7-00
Hose (vz)
17
90446-34MF8-00
Hose (vz)
18
90465-08M89-00
Clamp (vz)
19
68F-8259M-00-00
Wire Harness Assy (vz)
20
68F-8259N-00-00
Wire Harness Assy (vz)
21
90465-10098-00
Clamp (vz)
22
90465-11M52-00
Clamp (vz)
23
61A-85790-00-00
Thermosensor Asy (vz)
24
92990-10600-00
Washer (vz) (5 Per Pack)
25
90465-12M93-00
Clamp (vz)
26
97080-06012-00
Bolt (vz)
27
92995-06100-00
Washer (vz) (5 Per Pack)
28
6R3-82563-00-00
Trim & Tilt Switch (vz)
29
6E5-82587-00-00
Gasket (vz)
30
6R3-83614-00-00
Bracket (vz)
31
90109-06M80-00
Bolt (vz)
32
67H-82380-00-00
Sensor, Pressure (vz)
33
98580-06020-00
Screw, Pan Head (vz) (5 Per Pack)
34
97095-06014-00
Bolt (vz)
35
92990-06600-00
Washer (vz) (5 Per Pack)
36
6K7-82588-00-00
Plate (vz)
37
95895-06020-00
Bolt (vz)
