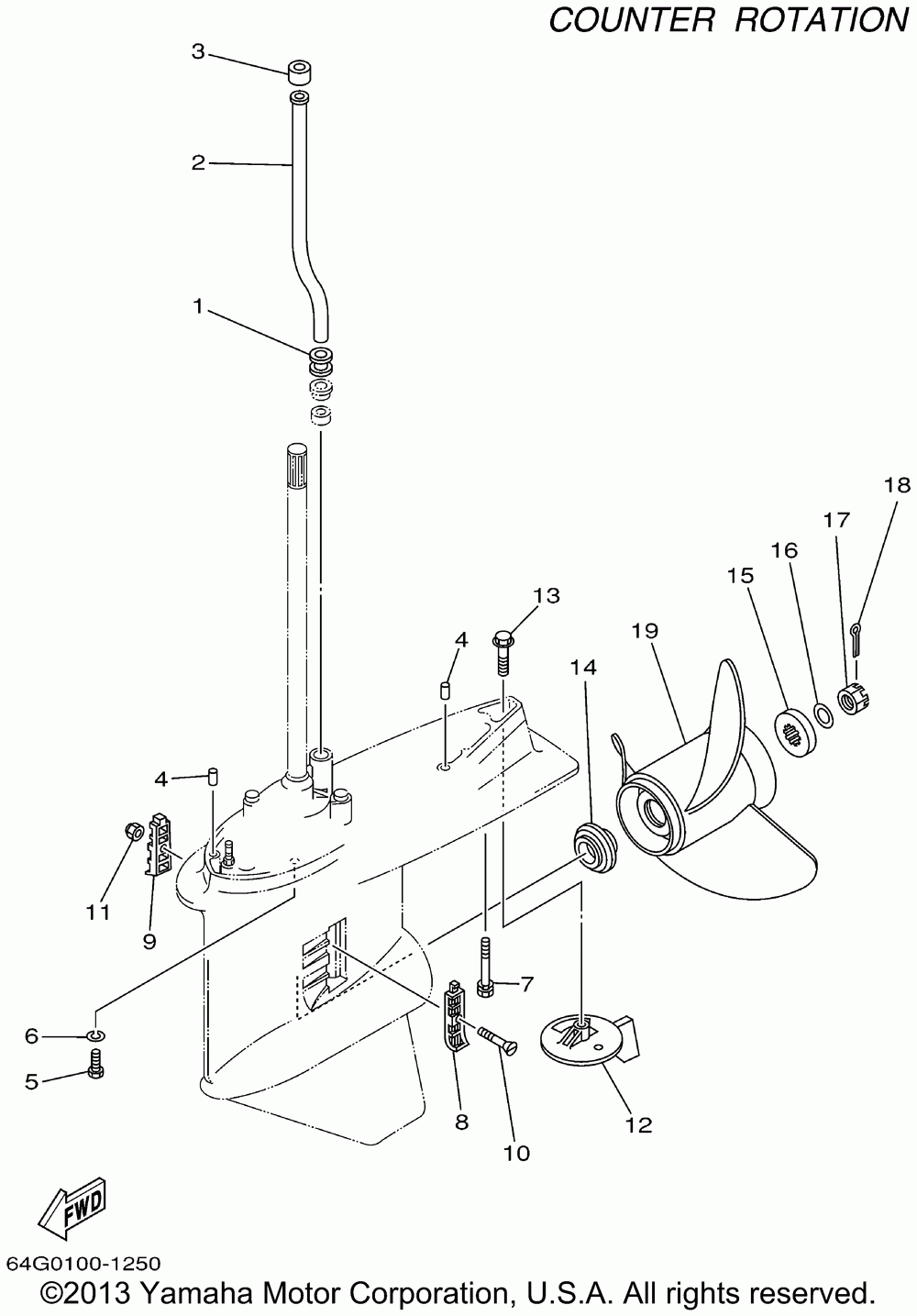

Lower casing drive 4 Каталог оригинальных запчастей для лодочных моторов Yamaha Z150TXRA/LZ150TXRA/Z200TXRA/Z175TXRA/Z150TLRA/LZ200TXRA (2002)

Lower casing drive 4

Yamaha Z150TXRA/LZ150TXRA/Z200TXRA/Z175TXRA/Z150TLRA/LZ200TXRA

oem код

название

цена

Water Seal (lz)

Tube, Water X (lz)

Water Seal (lz)

Pin, Dowel (lz) (5 Per Pack)

97075-10045-00

Bolt (lz)

92990-10100-00

Washer, Spring (lz) (5 Per Pack)

90119-10M89-00

Bolt, With Washer (lz)

6J9-45214-00-00

Cover, Wtr.inlet (lz)

6J9-45215-00-00

Cover, Water Inlet (lz)

90152-05M08-00

Screw, Countersunk (lz)

90185-05904-00

Nut, Self-locking (lz)

6K1-45371-02-00

Trim-tab (lz)

90105-10M00-00

Bolt, Washer Based (lz)

Spacer (lz)

Spacer 2 (lz)

Washer (lz)

Nut, Castle (lz)

Pin, Cotter (lz) (5 Per Pack)

6R1-45978-A0-00

Sws 15-1/4x17l(only (3x15-1/4"x17"-ml) Ur (lz)

6R1-45976-A0-00

Sws 15-1/4x15l (expo (3x15-1/4"x15"-ml) Ur (lz)

6R1-45974-A0-00

Ss Prop, 14-1/2x23l (3x14-1/2"x23"-ml) Ur (lz)

6R1-45972-A0-00

Sws 14-7/8x21l (expo (3x14-7/8"x21"-ml) Ur (lz)

6R1-45970-A1-00

Sws 15-1/4x19l (expo (3x15-1/4"x19"-ml) Ur (lz)

6K1-45978-02-00

Ss Prop 13-3/4x17 (3x13-3/4"x17"-ml1) Ur (lz)

6K1-45974-02-00

Ss Prop 13-3/4x19 (3x13-3/4"x19"-ml1) Ur (lz)

6K1-45972-01-00

Ss Prop 13-3/4 X 21 (3x13-3/4"x21"-ml) Ur (lz)

6K1-45970-01-00

Ss Prop 15-1/4x15 (3x15-1/4"x15"-ml) Ur (lz)
