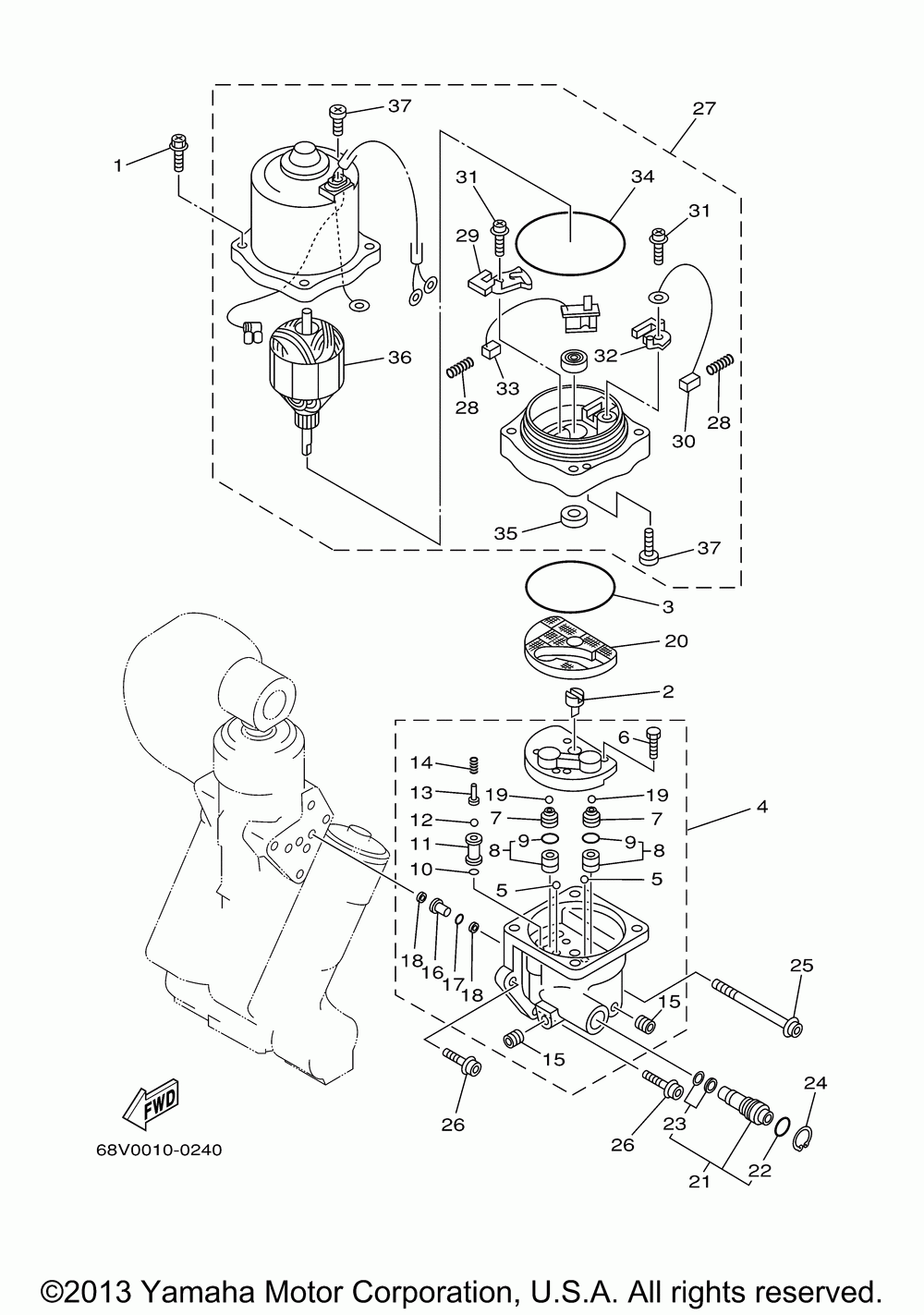

Цилиндр гидроподъема 2

Yamaha 150TXRZ
Yamaha
#oem кодцена
1
64E-4388E-01-00
Bolt , Screw (l:14mm) (l:14mm) (150)
2
64E-43831-00-00
Connector, Shaft (150)
3
64E-43868-00-00
O-ring (150)
4
6CB-43830-00-00
Gear Pump Assy (150)
5
72X-43858-00-00
Ball (150)
6
64E-43843-00-00
Screw, Valve Lock (150)
7
64E-43841-00-00
Piston, Shuttle (150)
8
64E-43802-00-00
Valve Sub Assy (150)
9
6E5-43896-00-00
O-ring (150)
10
6G5-43863-00-00
O-ring (150)
11
64E-43851-00-00
Seat, Relief Valve (150)
12
64E-43858-00-00
Ball (150)
13
64E-43859-00-00
Pin, Valve Support (150)
14
64E-43855-00-00
Spring, Up Relief (150)
15
6E5-43826-01-00
Plug, Taper Screw (150)
16
64E-43850-00-00
Valve Sub-assy (150)
17
6E5-43883-00-00
O-ring (150)
18
64E-43816-00-00
Filter 1 (150)
19
64E-43858-00-00
Ball (150)
20
64E-43817-11-00
Filter 2 (150)
21
64E-43860-01-00
Manual Valve Sub-ass (150)
22
72X-85075-L0-00
O-ring (150)
23
64E-43827-00-00
Ring Set (150)
24
6AW-43875-00-00
Ring, Snap (150)
25
64E-43879-11-00
Screw, With Washer (150)
26
64E-43879-01-00
Screw, With Washer (150)
27
64E-43880-04-00
Motor Assy (150)
28
6H1-4386K-10-00
Spring, Brush (150)
29
64E-4380J-00-00
Brush Holder Assy (150)
30
64E-43891-00-00
Brush 1 (150)
31
98507-04010-00
Screw, Panhead (150)
32
64E-4380F-00-00
Holder, Brush 2 (150)
33
64E-43892-00-00
Brush 2 (brush 2) (150)
34
6G5-43865-01-00
O-ring (150)
35
93102-08M43-00
Oil Seal, Sd-type (150)
36
64E-43805-01-00
Armature Assy (150)
37
64E-43843-10-00
Screw, Valve Lock (150)
