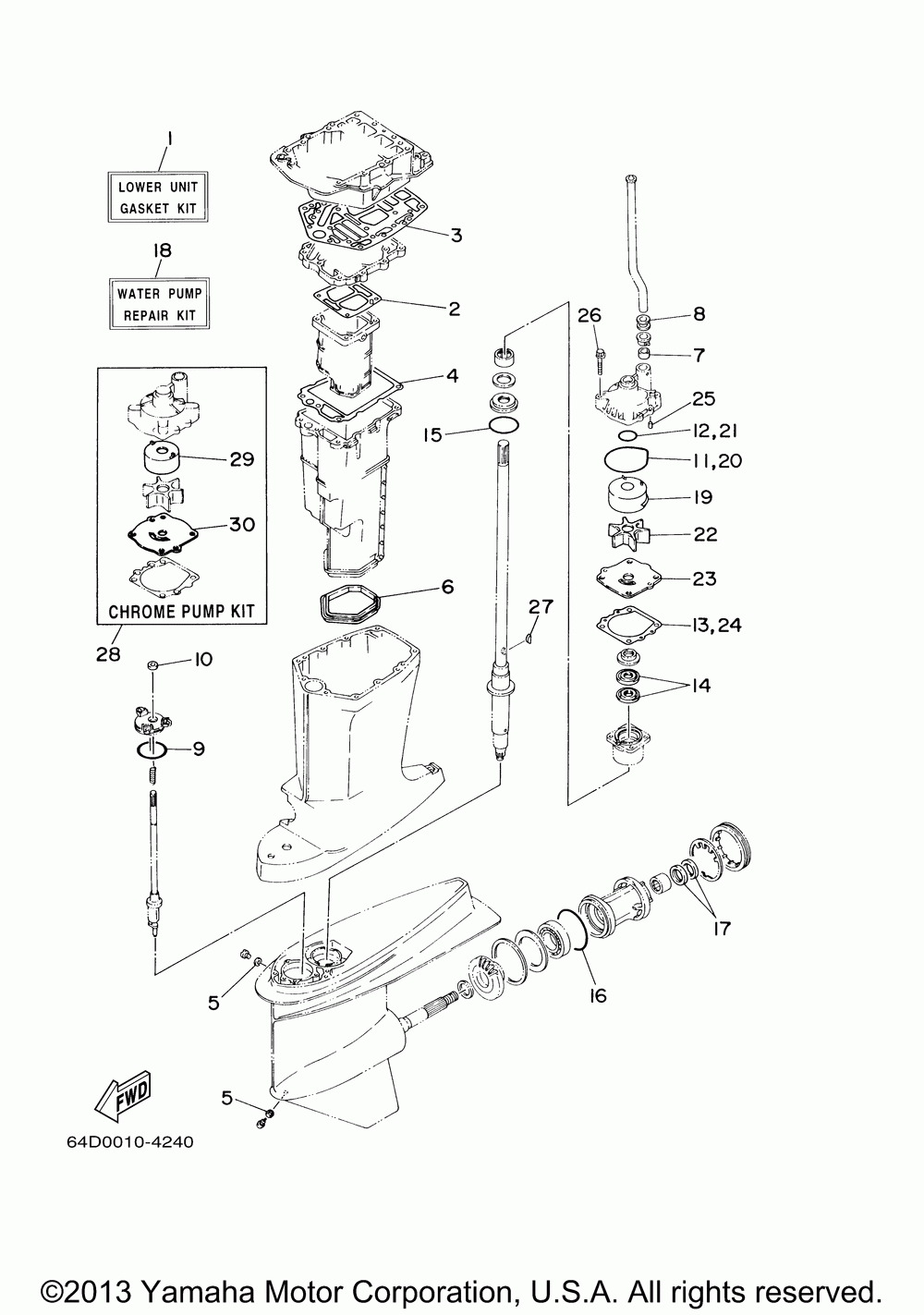

Ремонтные комплекты 2

Yamaha 150TXRZ
Yamaha
#oem кодцена
1
6G5-W0001-C1-00
Gasket Kit (150)
2
6G5-41134-A1-00
Gasket, Exhaust Mani (150)
3
6G5-45114-A1-00
Gasket, Upper Casing (150)
4
6E5-41135-A0-00
Gasket, Exh.mani.3 (150)
5
90430-08020-00
Gasket (150) (10 Per Pack)
6
6E5-45123-00-00
Gasket, Muffler (150)
7
6E5-44365-00-00
Water Seal (150)
8
6E5-44366-00-00
Water Seal (150)
9
93210-58677-00
O-ring (150)
10
93106-09014-00
Oil Seal, Dd-type (150)
11
93210-86M38-00
O-ring (150)
12
93210-37M67-00
O-ring (150) (5 Per Pack)
13
6E5-44315-A0-00
Gasket, Water Pump (150)
14
93101-28M16-00
Oil Seal, S-type (150)
15
93210-54534-00
O-ring (150)
16
93210-97M55-00
O-ring (150)
17
93101-30M17-00
Oil Seal, S-type (150)
18
61A-W0078-A3-00
Water Pump Repair (150)
19
61A-44322-02-00
Insert, Cartridge (150)
20
93210-86M38-00
O-ring (150)
21
93210-37M67-00
O-ring (150) (5 Per Pack)
22
6E5-44352-01-00
Impeller (150)
23
6G5-44323-01-00
Outer Plate, Cartrid (150)
24
6E5-44315-A0-00
Gasket, Water Pump (150)
25
93606-12019-00
Pin, Dowel (150) (5 Per Pack)
26
90119-08M14-00
Bolt, With Washer (150)
27
90280-04M05-00
Key, Woodruff (150)
28
61A-W0078-2A-00
Chrome Pump Kit (150)
29
6R3-44322-42-00
Insert, Cartridge (150)
30
6G5-44323-41-00
Outer Plate, Cartrid (150)
