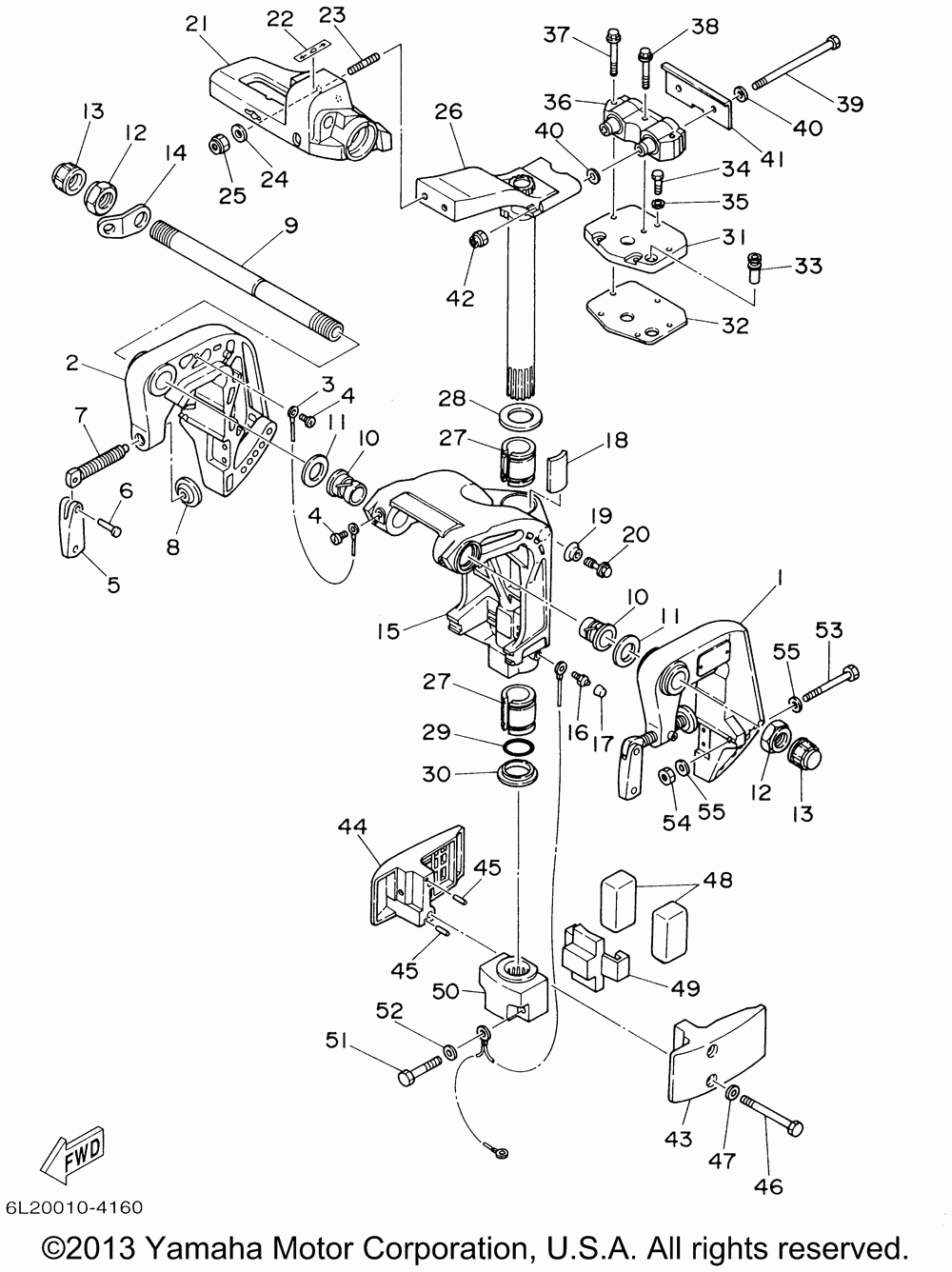

Yamaha 25MLHKZ/25MSHZ/25MSHKZ/25MLHZ

Кронштейн 1

#

oem код

название

цена

1

6L2-43111-05-4D

Bracket, Clamp (25mh)

Bracket, Clamp (25mh)

2

6L2-43112-06-4D

Bracket, Clamp (25mh)

Bracket, Clamp (25mh)

3

6E5-82148-00-00

Wire, Lead 4 (25mh)

Wire, Lead 4 (25mh)

4

Screw, Pan Head (25mh)

Screw, Pan Head (25mh)

5

6E0-43118-01-00

Handle, Transom Clp (25mh)

Handle, Transom Clp (25mh)

6

Pin (25mh)

Pin (25mh)

7

6L2-43116-00-00

Screw, Transom Clam (25mh)

Screw, Transom Clam (25mh)

8

648-43114-01-00

Pad, Transom Clamp (25mh)

Pad, Transom Clamp (25mh)

9

6J8-43131-01-00

Bolt, Clamp Bracket (25mh)

Bolt, Clamp Bracket (25mh)

10

Bush, Spec'l Nylon (25mh)

Bush, Spec'l Nylon (25mh)

11

Washer, Plate (25mh)

Washer, Plate (25mh)

12

Nut, Self-locking (25mh)

Nut, Self-locking (25mh)

13

6G5-43145-01-00

Cap, Clamp Bracket (25mh)

Cap, Clamp Bracket (25mh)

14

6J8-43113-01-00

Plate, Clamp Brk (25mh)

Plate, Clamp Brk (25mh)

15

6L2-43311-05-4D

Bracket, Swivel 1 (25mh)

Bracket, Swivel 1 (25mh)

16

Nipple, Grease (25mh)

Nipple, Grease (25mh)

17

663-45119-00-00

Cap, Grease Nipple Ap(25mh)

Cap, Grease Nipple Ap(25mh)

18

6H4-42528-00-00

Piece, Friction (25mh)

Piece, Friction (25mh)

19

689-43373-01-00

Seal (25mh)

Seal (25mh)

20

Bolt, Washer Based (25mh)

Bolt, Washer Based (25mh)

21

6L2-42121-03-4D

Bracket (25mh)

Bracket (25mh)

22

6E0-44191-11-00

Indicator, Shift (25mh)

Indicator, Shift (25mh)

23

Bolt, Stud (25mh)

Bolt, Stud (25mh)

24

Washer (25mh) (5 Per Pack)

Washer (25mh) (5 Per Pack)

25

Nut, Self-locking (25mh)

Nut, Self-locking (25mh)

26

6L2-42510-01-4D

Steering Bracket (25mh)

Steering Bracket (25mh)

27

Bushing (6l2) (25mh)

Bushing (6l2) (25mh)

28

Washer, Plate (25mh)

Washer, Plate (25mh)

29

O-ring (25mh)

O-ring (25mh)

30

Bush, Spec'l Nylon (25mh)

Bush, Spec'l Nylon (25mh)

31

6L2-44512-00-4D

Cover, Upper Mount (25mh)

Cover, Upper Mount (25mh)

32

6L2-45114-A1-00

Gasket, Upper Casng (25mh)

Gasket, Upper Casng (25mh)

33

6L2-44365-00-00

Water Seal (25mh)

Water Seal (25mh)

34

Bolt(7u8) (25mh) (5 Per Pack)

Bolt(7u8) (25mh) (5 Per Pack)

35

Washer (25mh) (5 Per Pack)

Washer (25mh) (5 Per Pack)

36

6L2-44514-01-00

Mount Damper, Uppe (25mh)

Mount Damper, Uppe (25mh)

37

Bolt, With Washer (25mh)

Bolt, With Washer (25mh)

38

Bolt, With Washer (25mh)

Bolt, With Washer (25mh)

39

Bolt (25mh)

Bolt (25mh)

40

Washer, Plate (25mh)

Washer, Plate (25mh)

41

6L2-44526-00-00

Plate (25mh)

Plate (25mh)

42

Nut Self-locking (25mh)

Nut Self-locking (25mh)

43

6L2-44551-01-4D

Housing, Lwr, Mount (25mh)

Housing, Lwr, Mount (25mh)

44

6L2-44552-01-4D

Housing, Lwr.mnt. (25mh)

Housing, Lwr.mnt. (25mh)

45

Pin, Dowel (25mh) (5 Per Pack)

Pin, Dowel (25mh) (5 Per Pack)

46

Bolt, With Washer (25mh)

Bolt, With Washer (25mh)

47

Washer (25mh) (5 Per Pack)

Washer (25mh) (5 Per Pack)

48

6L2-44555-00-00

Mt.rubber Lwr.side (25mh)

Mt.rubber Lwr.side (25mh)

49

6L2-44557-00-00

Mt.damper Lr.front (25mh)

Mt.damper Lr.front (25mh)

50

6L2-44553-01-4D

Cover, Lwr.mount (25mh)

Cover, Lwr.mount (25mh)

51

Bolt, Hexagon (25mh)

Bolt, Hexagon (25mh)

52

Washer (25mh) (5 Per Pack)

Washer (25mh) (5 Per Pack)

53

Bolt Ap(25mh)

Bolt Ap(25mh)

54

Nut, Hex. Ap(25mh)

Nut, Hex. Ap(25mh)

55

Washer Ap(25mh) (5 Per Pack)

Washer Ap(25mh) (5 Per Pack)
