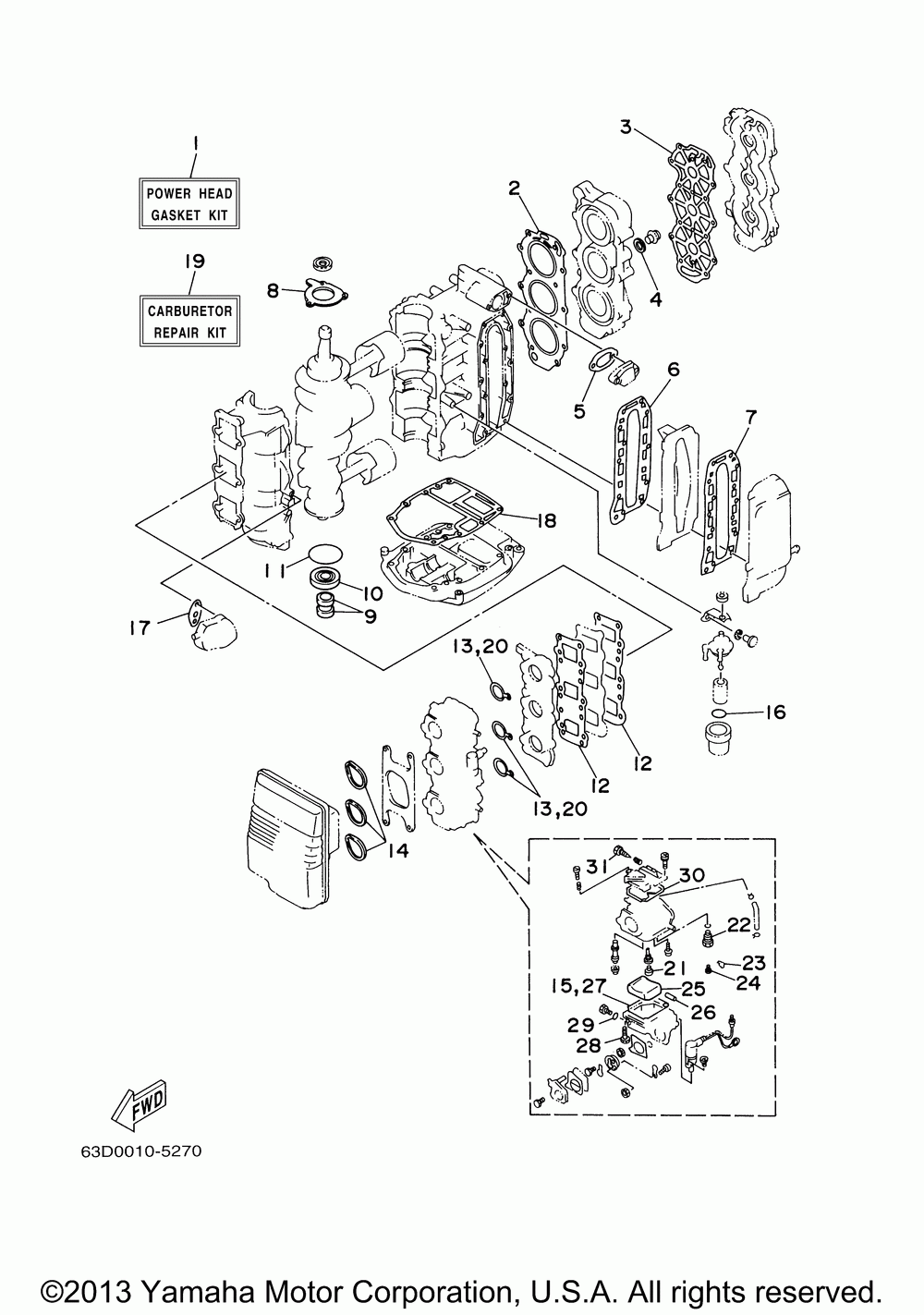

Yamaha C40TLRZ/C50TLRZ

Ремонтные комплекты 1

#

oem код

название

цена

1

63D-W0001-00-00

Power Head Gskt.kt (tr)

Power Head Gskt.kt (tr)

1

63D-W0001-00-00

Power Head Gskt.kt (tr)

Power Head Gskt.kt (tr)

2

63D-11181-A2-00

Gasket, Cylinder Hea (tr)

Gasket, Cylinder Hea (tr)

2

63D-11181-A2-00

Gasket, Cylinder Hea (tr)

Gasket, Cylinder Hea (tr)

3

63D-11193-A0-00

Gasket, Hd.cover 1 (tr)

Gasket, Hd.cover 1 (tr)

3

63D-11193-A0-00

Gasket, Hd.cover 1 (tr)

Gasket, Hd.cover 1 (tr)

4

Gasket (tr)

Gasket (tr)

4

Gasket (tr)

Gasket (tr)

5

61A-12414-A0-00

Gasket, Cover (tr)

Gasket, Cover (tr)

5

61A-12414-A0-00

Gasket, Cover (tr)

Gasket, Cover (tr)

6

6H4-41112-A0-00

Gasket Exhaust (tr)

Gasket Exhaust (tr)

6

6H4-41112-A0-00

Gasket Exhaust (tr)

Gasket Exhaust (tr)

7

6H4-41114-A0-00

Gasket, Exh.cover (tr)

Gasket, Exh.cover (tr)

7

6H4-41114-A0-00

Gasket, Exh.cover (tr)

Gasket, Exh.cover (tr)

8

6H4-15369-A1-00

Gasket, O/sl Hsng (tr)

Gasket, O/sl Hsng (tr)

8

6H4-15369-A1-00

Gasket, O/sl Hsng (tr)

Gasket, O/sl Hsng (tr)

9

Oil Seal, So-type (tr)

Oil Seal, So-type (tr)

9

Oil Seal, So-type (tr)

Oil Seal, So-type (tr)

10

Oil Seal (tr)

Oil Seal (tr)

10

Oil Seal (tr)

Oil Seal (tr)

11

O-ring (tr)

O-ring (tr)

11

O-ring (tr)

O-ring (tr)

12

6H4-13621-A1-00

Gasket, Valve Seat (tr)

Gasket, Valve Seat (tr)

12

6H4-13621-A1-00

Gasket, Valve Seat (tr)

Gasket, Valve Seat (tr)

13

6H4-14198-01-00

Gasket (tr)

Gasket (tr)

13

6H4-14198-01-00

Gasket (tr)

Gasket (tr)

14

6H3-14457-01-00

Seal (tr)

Seal (tr)

14

6H3-14457-01-00

Seal (tr)

Seal (tr)

15

6H4-14984-00-00

Gasket, Float Chmbr (tr)

Gasket, Float Chmbr (tr)

15

6H4-14984-00-00

Gasket, Float Chmbr (tr)

Gasket, Float Chmbr (tr)

16

O-ring (tr) (5 Per Pack)

O-ring (tr) (5 Per Pack)

16

O-ring (tr) (5 Per Pack)

O-ring (tr) (5 Per Pack)

17

650-24431-A0-00

Gasket, Fuel Pump 1 (tr)

Gasket, Fuel Pump 1 (tr)

17

650-24431-A0-00

Gasket, Fuel Pump 1 (tr)

Gasket, Fuel Pump 1 (tr)

18

6H4-45113-A0-00

Gasket, Upper Casin (tr)

Gasket, Upper Casin (tr)

18

6H4-45113-A0-00

Gasket, Upper Casin (tr)

Gasket, Upper Casin (tr)

19

6H4-W0093-03-00

Carb Repair Kit (tr)

Carb Repair Kit (tr)

19

6H4-W0093-03-00

Carb Repair Kit (tr)

Carb Repair Kit (tr)

20

6H4-14198-01-00

Gasket (tr)

Gasket (tr)

20

6H4-14198-01-00

Gasket (tr)

Gasket (tr)

21

679-14966-00-00

Rubber Cap (tr)

Rubber Cap (tr)

21

679-14966-00-00

Rubber Cap (tr)

Rubber Cap (tr)

22

6H4-14590-01-00

Needle Valve Assy (tr)

Needle Valve Assy (tr)

22

6H4-14590-01-00

Needle Valve Assy (tr)

Needle Valve Assy (tr)

23

633-14159-00-00

Clip (tr)

Clip (tr)

23

633-14159-00-00

Clip (tr)

Clip (tr)

24

676-14186-00-00

Pin, Float (tr)

Pin, Float (tr)

24

676-14186-00-00

Pin, Float (tr)

Pin, Float (tr)

25

6H4-14985-01-00

Float (tr)

Float (tr)

25

6H4-14985-01-00

Float (tr)

Float (tr)

26

6H4-14548-00-00

Pin, Float Arm (tr)

Pin, Float Arm (tr)

27

6H4-14984-00-00

Gasket, Float Chmbr (tr)

Gasket, Float Chmbr (tr)

27

6H4-14984-00-00

Gasket, Float Chmbr (tr)

Gasket, Float Chmbr (tr)

28

Screw, W/washer (tr)

Screw, W/washer (tr)

28

Screw, W/washer (tr)

Screw, W/washer (tr)

29

O-ring (tr)

O-ring (tr)

29

O-ring (tr)

O-ring (tr)

30

6H4-14147-00-00

O-ring (tr)

O-ring (tr)

30

6H4-14147-00-00

O-ring (tr)

O-ring (tr)

31

692-14923-00-00

Screw, Pilot (tr)

Screw, Pilot (tr)

31

692-14923-00-00

Screw, Pilot (tr)

Screw, Pilot (tr)
