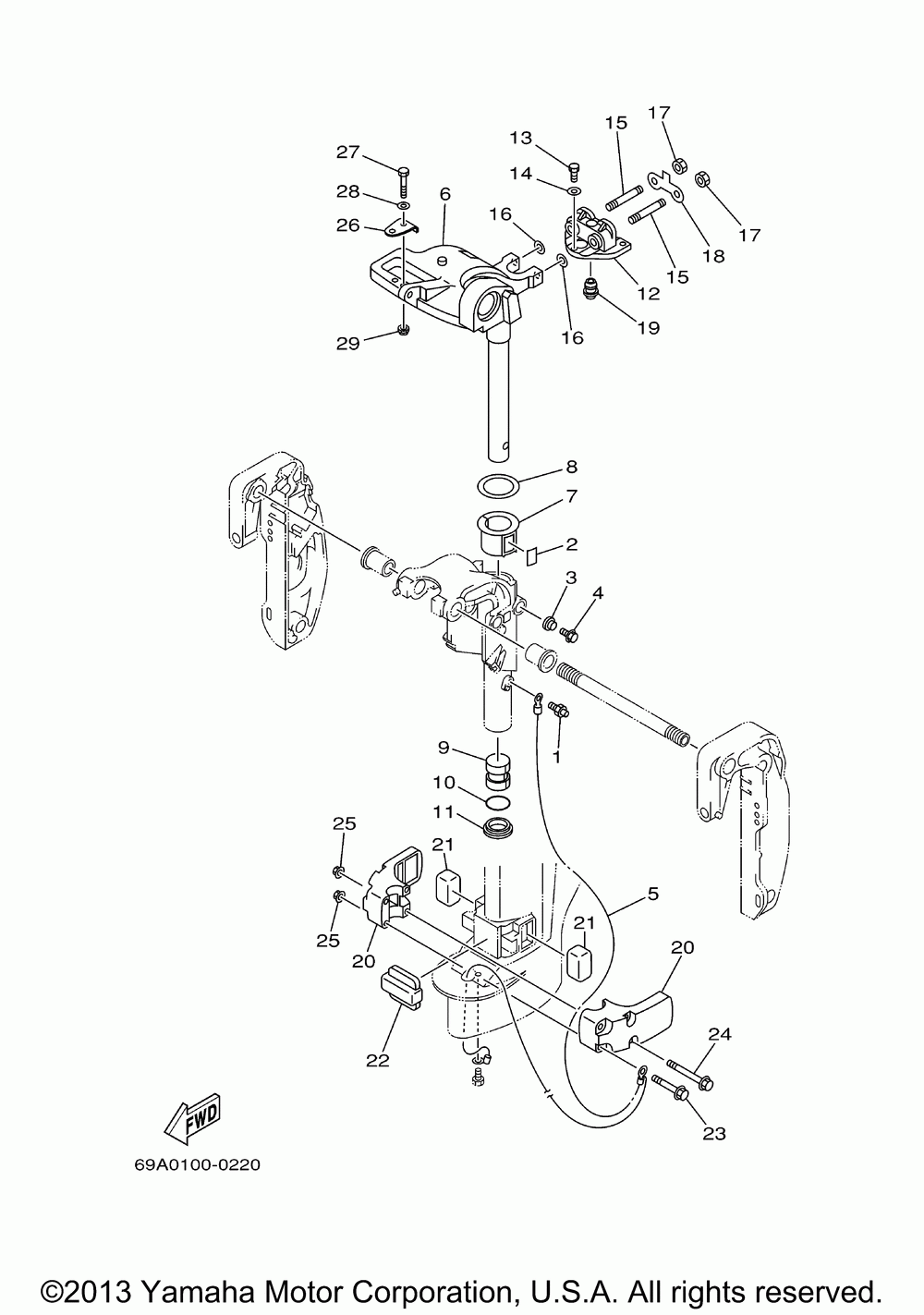

Крепление 2

Yamaha F15PLRZ/F15PLHZ
Yamaha
#oem кодцена
1
93700-06M03-00
Nipple, Grease (pr)
2
63V-42528-00-00
Piece, Friction (pr)
3
689-43373-01-00
Seal (pr)
4
90105-06M07-00
Bolt, Washer Based (pr)
5
69A-82127-00-00
Wire, Lead 2 L (pr)
6
66M-42511-11-4D
Bracket, Steering L (pr)
7
63V-42537-00-00
Bushing, Pivot Shaf (pr)
8
90201-45M28-00
Washer, Plate (pr)
9
90386-30048-00
Bush, Spec'l Nylon (pr)
10
93210-29M94-00
O-ring (pr)
11
90386-30M60-00
Bush, Spec'l Nylon (pr)
12
66M-44514-00-4D
Mount Damper, Upper (pr)
13
90101-06M27-00
Bolt (pr)
14
92990-06600-00
Washer (pr) (5 Per Pack)
15
90116-08M54-00
Bolt, Stud (pr)
16
90201-08M06-00
Washer, Plate (pr)
17
99780-08600-00
Nut, Hex. (pr)
18
66M-44526-00-00
Plate (pr)
19
66M-44366-00-00
Damper, Water Seal (pr)
20
66M-44551-00-4D
Housing, Lwr, Mount (pr)
21
682-44555-30-00
Mount Damper, Lowe (pr)
22
66M-44557-00-00
Mount Damper, Lowe (pr)
23
90119-08M45-00
Bolt, With Washer (pr)
24
90119-08M46-00
Bolt, With Washer (pr)
25
90179-08M34-00
Nut (pr)
26
63V-48511-01-00
Hook, Steering (pr)
27
97095-08035-00
Bolt (pr)
28
92990-08600-00
Washer (pr) (5 Per Pack)
29
95780-08300-00
Nut Self-locking (pr)
