Опционные запчасти

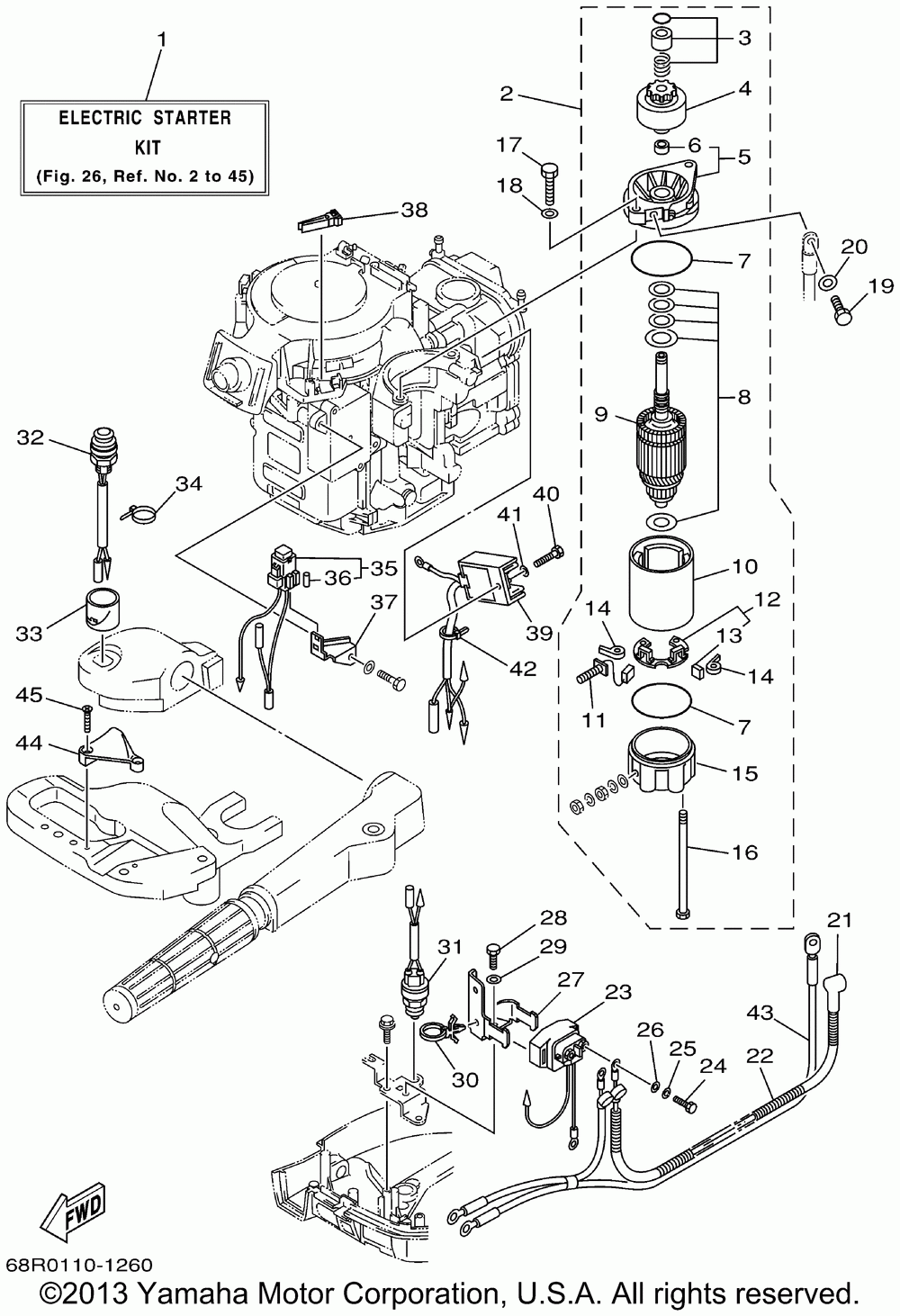

Yamaha F8MLHZ/F6MLHZ/F8MSHZ/F6MSHZ
Yamaha
#oem кодцена
1
6DR-W8180-10-00
Electric Starter Kit Ap F8(mh)
2
68T-81800-00-00
Starting Motor Assy (mh)
3
68T-81857-00-00
Retainer (mh)
4
689-81807-12-00
Pinion Asy (mh)
5
6F5-81830-11-00
Front Cover Ass'y (mh)
6
689-81831-00-00
Metal, Front (mh)
7
689-81847-11-00
O-ring (mh)
8
689-81809-11-00
Washer Kit (mh)
9
689-81850-12-00
Armature Asy (mh)
10
689-81810-11-00
Stator Asy (mh)
11
689-81811-11-00
Brush 1 (mh)
12
689-81840-11-00
Brush Holder Asy (mh)
13
689-81812-11-00
Brush 2 (mh)
14
689-81813-10-00
Spring, Brush (mh)
15
689-81820-11-00
Rear Bracket Asy (mh)
16
689-81826-10-00
Bolt (mh)
17
97013-08025-00
Bolt (682) (mh)
18
92990-08600-00
Washer (mh) (5 Per Pack)
19
97095-08016-00
Bolt (mh)
20
92990-08600-00
Washer (mh) (5 Per Pack)
21
6H4-82117-00-00
Wire, Lead (mh)
22
90446-10M86-00
Hose (l140) (mh)
23
68T-81940-00-00
Starter Relay Assy (mh)
24
97085-06010-00
Bolt (mh)
25
92995-06100-00
Washer (mh) (5 Per Pack)
26
92990-06600-00
Washer (mh) (5 Per Pack)
27
68T-81945-01-00
Plate, Switch Fittin (mh)
28
97080-06012-00
Bolt (mh)
29
92990-06600-00
Washer (mh) (5 Per Pack)
30
90465-12M56-00
Clamp (62t) (mh)
31
688-82540-12-00
Neutral Switch Assy (mh)
32
68T-81870-00-00
Starting Switch As (mh)
33
68T-81821-00-00
Cover, Switch (mh)
34
90465-10098-00
Clamp (mh)
35
68T-82150-00-00
Fuse Holder Assy (mh)
36
67F-82151-40-00
Fuse (10a) (10a-bl) (mh)
37
68T-82171-01-00
Stay, Fuse Box (mh)
38
67F-2812A-00-00
Puller, Fuse (mh)
39
68T-81960-00-00
Rectifier & Regulato (mh)
40
97080-06012-00
Bolt (mh)
41
92990-06600-00
Washer (mh) (5 Per Pack)
42
90465-10098-00
Clamp (mh)
43
69G-82105-01-00
Battery Cable (l: 2.1m) (mh)
44
68T-82594-00-00
Clamp (mh)
45
90151-05011-00
Screw, Countersunk (mh)
