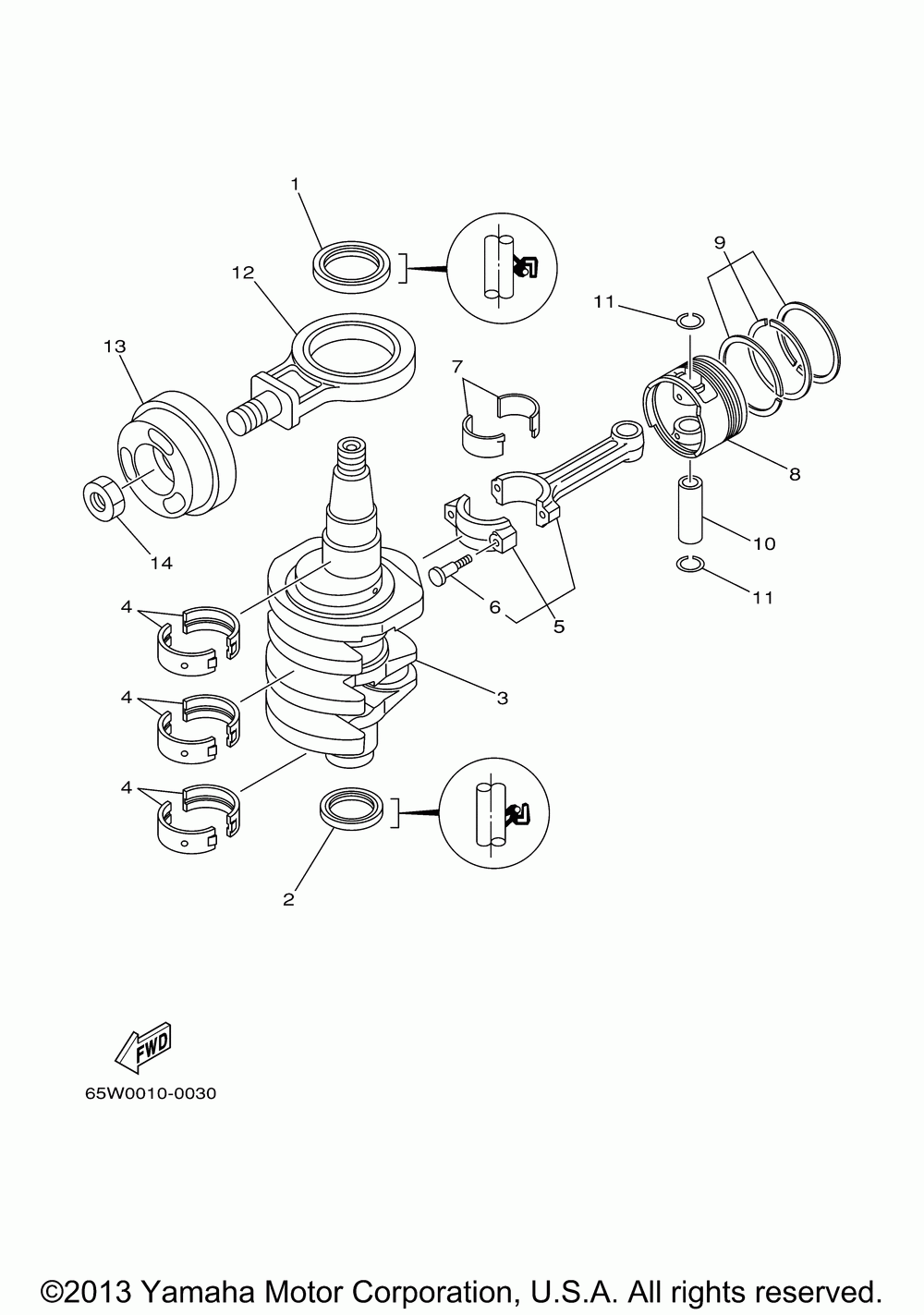

Коленчатый вал и Поршень

Yamaha T25TLRZ
Yamaha
#oem кодцена
1
93102-43M42-00
Oil Seal, Sd-type (tr)
2
93102-35M47-00
Oil Seal, Sd-type (tr)
3
65W-11411-01-00
Crankshaft (tr)
4
62Y-11416-00-00
Plane Brng, Crsf 1 Ur Brown (tr)
4
62Y-11416-20-00
Plane Brng, Crsf 1 Ur Blue (tr)
4
62Y-11416-10-00
Plane Brng, Crsf 1 Ur Black (tr)
5
6C5-11650-10-00
Connecting Rod Assy (tr)
6
6C5-11654-00-00
Bolt, Connecting Rod (tr)
7
62Y-11656-00-00
Plane Brng, Con Rod Ur Brown (tr)
7
62Y-11656-10-00
Plane Brng, Con Rod Ur Black (tr)
7
62Y-11656-20-00
Plane Brng, Con Rod Ur Blue (tr)
8
65W-11636-00-00
Piston (0.50mm O/s (0.50mm O/s) Ap (tr)
8
65W-11635-00-00
Piston (0.25mm O/s (0.25mm O/s) Ap (tr)
8
65W-11631-00-96
Piston (std) (std) (tr)
9
67C-11605-00-00
Piston Ring Set (0 (0.50mm O/s) Ap (tr)
9
67C-11604-00-00
Piston Ring Set (0 (0.25mm O/s) Ap (tr)
9
67C-11603-00-00
Piston Ring Set (s (std) (tr)
10
62Y-11633-00-00
Pin, Piston (tr)
11
93450-17129-00
Circlip, Inner (tr) (5 Per Pack)
12
65W-11665-00-00
Con-rod Assy, Bala (tr)
13
65W-11642-11-00
Piston, Balancer (tr)
14
90170-20137-00
Nut, Hexagon (tr)
