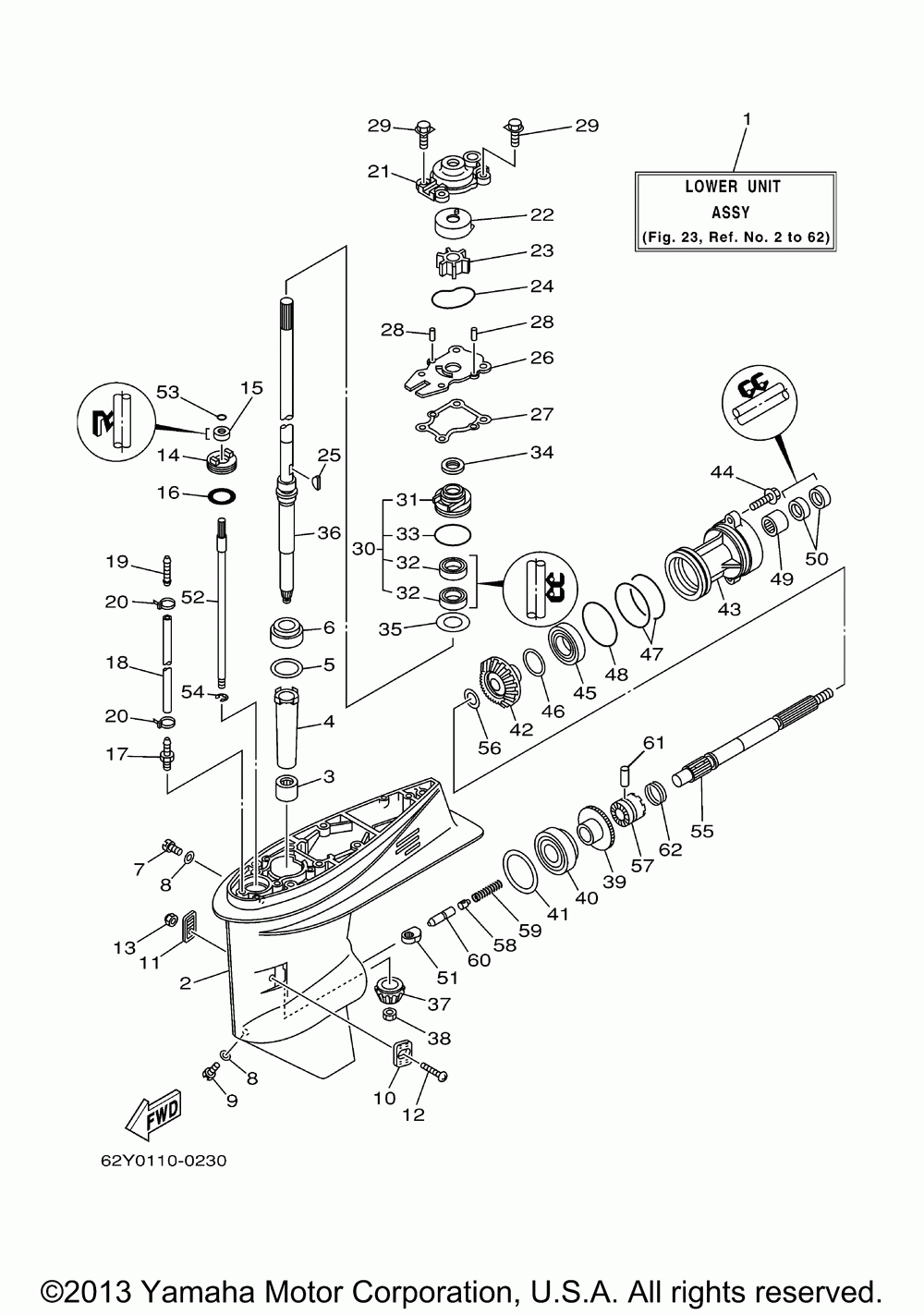

Lower casing drive 1 f50tlrz
Lower casing drive 1 f50tlrz

Lower casing drive 1 f50tlrz

Yamaha T50TLRZ/F50TLRZ

oem код

название

цена

62Y-45300-31-8D

Lower Unit Assy (f50)

62Y-45301-00-8D

Casing, Lower (f50)

62Y-45301-00-8D

Casing, Lower (f50)

93315-32224-00

Bearing, Cyl.#15 (f50)

93315-32224-00

Bearing, Cyl.#15 (f50)

6H4-45536-00-00

Sleeve, Drive Shft (f50)

6H4-45536-00-00

Sleeve, Drive Shft (f50)

663-45587-10-00

Shim (t:0.12mm) (t:0.12mm) Ur (f50)

663-45587-10-00

Shim (t:0.12mm) (t:0.12mm) Ur (f50)

663-45587-01-00

Shim (t:0.10mm) (t:0.10mm) Ur (f50)

663-45587-20-00

Shim (t:0.15mm) (t:0.15mm) Ur (f50)

663-45587-20-00

Shim (t:0.15mm) (t:0.15mm) Ur (f50)

663-45587-60-00

Shim (t:0.50mm) (t:0.50mm) Ur (f50)

663-45587-60-00

Shim (t:0.50mm) (t:0.50mm) Ur (f50)

663-45587-50-00

Shim (t:0.40mm) (t:0.40mm) Ur (f50)

663-45587-50-00

Shim (t:0.40mm) (t:0.40mm) Ur (f50)

663-45587-30-00

Shim (t:0.18mm) (t:0.18mm) Ur (f50)

663-45587-30-00

Shim (t:0.18mm) (t:0.18mm) Ur (f50)

663-45587-40-00

Shim (t:0, 30mm) (t:0.30mm) Ur (f50)

663-45587-40-00

Shim (t:0, 30mm) (t:0.30mm) Ur (f50)

93332-00001-00

Bearing, Taprd #32 (f50)

93332-00001-00

Bearing, Taprd #32 (f50)

90340-08002-00

Plug, Straight Screw (f50)

90340-08002-00

Plug, Straight Screw (f50)

90430-08020-00

Gasket (f50) (10 Per Pack)

688-45341-10-00

Plug, Drain (f50)

688-45341-10-00

Plug, Drain (f50)

63D-45214-00-00

Cover, Wtr.inlet (f50)

63D-45214-00-00

Cover, Wtr.inlet (f50)

63D-45215-00-00

Cover, Water Inlet (f50)

63D-45215-00-00

Cover, Water Inlet (f50)

90152-05010-00

Screw, Countersunk (f50)

90152-05010-00

Screw, Countersunk (f50)

95380-05600-00

Nut (f50) (5 Per Pack)

95380-05600-00

Nut (f50) (5 Per Pack)

63D-45321-00-00

Plate (f50)

63D-45321-00-00

Plate (f50)

93106-09014-00

Oil Seal, Dd-type (f50)

93106-09014-00

Oil Seal, Dd-type (f50)

O-ring (f50)

O-ring (f50)

Nipple, Hose (f50)

Nipple, Hose (f50)

Hose (l200) (f50)

Hose (l200) (f50)

End, Nipple (f50)

End, Nipple (f50)

Clamp (f50)

Clamp (f50)

Housing, Water Pump (f50)

63D-44311-00-00

Housing, Water Pump (f50)

63D-44322-00-00

Insert Cartridge (f50)

63D-44322-00-00

Insert Cartridge (f50)

Impeller (f50)

Impeller (f50)

O-ring (f50)

O-ring (f50)

Key, Woodruff (f50)

Key, Woodruff (f50)

Outer Plate, Cart. (f50)

63D-44323-00-00

Outer Plate, Cart. (f50)

63D-44316-00-00

Gasket, Water Pump (f50)

63D-44316-00-00

Gasket, Water Pump (f50)

93604-08062-00

Pin, Dowel (f50) (5 Per Pack)

93604-08062-00

Pin, Dowel (f50) (5 Per Pack)

90119-08M15-00

Bolt, W/washer (f50)

90119-08M15-00

Bolt, W/washer (f50)

63B-Y429H-K1-00

Water Pump Housing A (f50)

63B-Y429H-K1-00

Water Pump Housing A (f50)

99999-03916-00

Housing, Water Pump (f50)

99999-03916-00

Housing, Water Pump (f50)

93101-25M57-00

Oil Seal, S-type (f50)

93101-25M57-00

Oil Seal, S-type (f50)

93210-48MG8-00

O-ring (f50)

93210-48MG8-00

O-ring (f50)

63D-45344-00-00

Cover, Oil Seal (f50)

63D-45344-00-00

Cover, Oil Seal (f50)

90201-27M00-00

Washer, Plate (f50)

90201-27M00-00

Washer, Plate (f50)

62Y-45501-30-00

Drive Shaft Comp. (l (f50)

62Y-45501-30-00

Drive Shaft Comp. (l (f50)

Pinion (13t) (f50)

Pinion (13t) (f50)

Nut, Hexagon (f50)

Nut, Hexagon (f50)

Gear 1 Assy (24t) (f50)

6H4-45560-01-00

Gear 1 Assy (24t) (f50)

93332-00003-00

Bearing, Taprd #32 (f50)

93332-00003-00

Bearing, Taprd #32 (f50)

663-45567-01-00

Shim (t:0.10mm) (t:0.10mm) Ur (f50)

663-45567-01-00

Shim (t:0.10mm) (t:0.10mm) Ur (f50)

663-45567-10-00

Shim (t:0.12mm) (t:0.12mm) Ur (f50)

663-45567-10-00

Shim (t:0.12mm) (t:0.12mm) Ur (f50)

663-45567-20-00

Shim (t:0.15mm) (t:0.15mm) Ur (f50)

663-45567-20-00

Shim (t:0.15mm) (t:0.15mm) Ur (f50)

663-45567-30-00

Shim (t:0.18mm) (t:0.18mm) Ur (f50)

663-45567-30-00

Shim (t:0.18mm) (t:0.18mm) Ur (f50)

663-45567-40-00

Shim (t:0.30mm) (t:0.30mm) Ur (f50)

663-45567-40-00

Shim (t:0.30mm) (t:0.30mm) Ur (f50)

663-45567-50-00

Shim (t:0.40mm) (t:0.40mm) Ur (f50)

663-45567-50-00

Shim (t:0.40mm) (t:0.40mm) Ur (f50)

663-45567-60-00

Shim (t:0.50mm) (t:0.50mm) Ur (f50)

663-45567-60-00

Shim (t:0.50mm) (t:0.50mm) Ur (f50)

62Y-45571-00-00

Gear (24t) (f50)

62Y-45571-00-00

Gear (24t) (f50)

63D-45361-02-8D

Cap, Lower Casing (f50)

63D-45361-02-8D

Cap, Lower Casing (f50)

Bolt, Flange (f50)

Bolt, Flange (f50)

Bearing (62x) (f50)

Bearing (62x) (f50)

Shim (t:0.10mm) (t:0.10mm) Ur (f50)

63D-45577-00-00

Shim (t:0.10mm) (t:0.10mm) Ur (f50)

63D-45577-10-00

Shim (t:0.12mm) (t:0.12mm) Ur (f50)

63D-45577-10-00

Shim (t:0.12mm) (t:0.12mm) Ur (f50)

63D-45577-20-00

Shim (t:0.15mm) (t:0.15mm) Ur (f50)

63D-45577-20-00

Shim (t:0.15mm) (t:0.15mm) Ur (f50)

63D-45577-30-00

Shim (t:0.18mm) (t:0.18mm) Ur (f50)

63D-45577-30-00

Shim (t:0.18mm) (t:0.18mm) Ur (f50)

63D-45577-40-00

Shim (t:0.30mm) (t:0.30mm) Ur (f50)

63D-45577-40-00

Shim (t:0.30mm) (t:0.30mm) Ur (f50)

63D-45577-50-00

Shim (t:0.40mm) (t:0.40mm) Ur (f50)

63D-45577-50-00

Shim (t:0.40mm) (t:0.40mm) Ur (f50)

63D-45577-60-00

Shim (t:0.50mm) (t:0.50mm) Ur (f50)

63D-45577-60-00

Shim (t:0.50mm) (t:0.50mm) Ur (f50)

O-ring (f50)

O-ring (f50)

O-ring (f50)

O-ring (f50)

Bearing, Cyl.#17 (f50)

93317-22204-00

Bearing, Cyl.#17 (f50)

93101-22067-00

Oil Seal, S-type (f50)

93101-22067-00

Oil Seal, S-type (f50)

Cam, Shift (f50)

Cam, Shift (f50)

Rod, Shift 2 (f50)

Rod, Shift 2 (f50)

O-ring (f50)

O-ring (f50)

Shaft, Propeller (f50)

63D-45611-00-00

Shaft, Propeller (f50)

Washer, Plate (f50)

Washer, Plate (f50)

Clutch, Dog (f50)

Clutch, Dog (f50)

Slide, Shaft (f50)

Slide, Shaft (f50)

Spring, Compression (f50)

90501-18001-00

Spring, Compression (f50)

Plunger, Shift (f50)

Plunger, Shift (f50)

Pin, Straight (f50)

Pin, Straight (f50)

Ring, Cross Pin (f50)

67C-45633-00-00

Ring, Cross Pin (f50)
